File Detail parts/s/51697s01.dat

Unofficial File parts/s/51697s01.dat

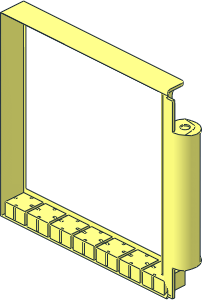

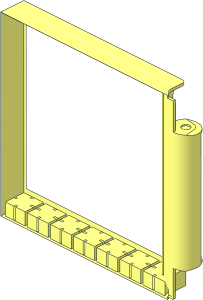

~Duplo Building Wall 1 x 8 x 6 Hinge on Right - Frame

File Header:

0 ~Duplo Building Wall  1 x  8 x  6 Hinge on Right - Frame
0 Name: s\51697s01.dat
0 Author: Peter Blomberg [WUIt]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 -140 0 0 1 0 0 0 1 0 0 0 1 s\51697s03.dat
1 16 -140 288 0 1 0 0 0 -1 0 0 0 1 s\51697s03.dat

0 // top
1 16 -163 144 0 0 0 -137 0 -144 0 -20 0 0 box2-7.dat
2 24 -12 0 -20 -300 0 -20
2 24 -20 0 14 -20 0 -6
1 16 -26 0 14 6 0 0 0 4 0 0 0 6 1-4cylo.dat
1 16 -26 0 14 6 0 0 0 1 0 0 0 6 1-4chrd.dat
4 16 -20 0 -6 -20 0 14 -26 0 20 -26 0 -20
4 16 -26 0 -20 -12 0 -20 -12 0 -18 -18 0 -12
3 16 -18 0 -12 -20 0 -6 -26 0 -20

0 // bottom
0 BFC INVERTNEXT
1 16 -279 288 0 -17 0 0 0 -20 0 0 0 -16 box5.dat
1 16 -240 288 0 1 0 0 0 1 0 0 0 1 s\51261s03.dat
1 16 -200 288 0 1 0 0 0 1 0 0 0 1 s\51261s03.dat
1 16 -160 288 0 1 0 0 0 1 0 0 0 1 s\51261s03.dat
1 16 -120 288 0 1 0 0 0 1 0 0 0 1 s\51261s03.dat
1 16 -80 288 0 1 0 0 0 1 0 0 0 1 s\51261s03.dat
2 24 -58 268 -16 -20 268 -16
2 24 -24 268 -6 -24 268 16
2 24 -24 268 16 -58 268 16
2 24 -58 268 16 -58 268 -16
2 24 -58 288 -16 -20 288 -16
2 24 -24 288 -6 -24 288 16
2 24 -24 288 16 -58 288 16
2 24 -58 288 16 -58 288 -16
2 24 -58 288 -16 -58 268 -16
2 24 -20 288 -16 -20 268 -16
2 24 -58 288 16 -58 268 16
2 24 -24 288 16 -24 268 16
4 16 -24 268 -6 -58 268 -16 -58 268 16 -24 268 16
4 16 -20 268 -16 -20 288 -16 -58 288 -16 -58 268 -16
4 16 -24 268 16 -24 288 16 -24 288 -6 -24 268 -6
4 16 -58 268 16 -58 288 16 -24 288 16 -24 268 16
4 16 -58 268 -16 -58 288 -16 -58 288 16 -58 268 16
3 16 -20 268 -16 -58 268 -16 -22 268 -12
3 16 -58 268 -16 -24 268 -6 -22 268 -12
2 24 -20 268 -16 -22 268 -12
4 16 -24 288 -6 -22 288 -12 -22 268 -12 -24 268 -6
4 16 -20 288 -16 -20 268 -16 -22 268 -12 -22 288 -12
5 24 -22 288 -12 -22 268 -12 -24 268 -6 -20 268 -16
5 24 -24 288 -6 -24 268 -6 -24 268 16 -22 268 -12
4 16 -296 288 16 -296 288 -16 -300 288 -20 -300 288 20
4 16 -62 288 16 -58 288 16 -58 288 -16 -62 288 -16
4 16 -296 288 -16 -262 288 -16 -260 288 -20 -300 288 -20
4 16 -296 288 16 -300 288 20 -260 288 20 -262 288 16
2 24 -22 268 -12 -24 268 -6
2 24 -22 288 -12 -24 288 -6
2 24 -20 288 -16 -22 288 -12
4 16 -20 288 20 -20 288 -6 -24 288 -6 -24 288 16
4 16 -18 288 -12 -12 288 -18 -12 288 -20 -20 288 -16
3 16 -18 288 -12 -20 288 -16 -22 288 -12
4 16 -18 288 -12 -22 288 -12 -24 288 -6 -20 288 -6
3 16 -62 288 -16 -58 288 -16 -60 288 -20
3 16 -58 288 16 -62 288 16 -60 288 20
4 16 -60 288 -20 -58 288 -16 -20 288 -16 -12 288 -20
4 16 -24 288 16 -58 288 16 -60 288 20 -20 288 20

0 // notches
1 16 -294 268 0 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -280 268 -14 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 -40 268 -14 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 -280 268 14 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -40 268 14 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -265 268 0 0 0 -3 0 19 0 -1.5 0 0 box4-1.dat
1 16 -26 268 0 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 -55 268 0 0 0 3 0 19 0 -1.5 0 0 box4-1.dat

0 // inner box
4 16 -26 4 20 -20 4 14 -20 4 -6 -26 4 -12
3 16 -26 4 -12 -20 4 -6 -18 4 -12
2 24 -26 4 -12 -18 4 -12
1 16 -26 4 14 6 0 0 0 -1 0 0 0 6 1-4chrd.dat
4 16 -20 53 -12 -20 235 -12 -26.5 264 -12 -26.5 4 -12

0 // vertical support
0 BFC INVERTNEXT
1 16 -26.5 252 16 0 -3 0 0 0 12 -12 0 0 1-4cylo.dat
1 16 -29.5 252 16 0 1 0 0 0 12 -12 0 0 1-4ndis.dat
1 16 -26.5 252 16 0 -1 0 0 0 12 -12 0 0 1-4ndis.dat
3 16 -29.5 252 4 -29.5 264 4 -29.5 264 -12
3 16 -26.5 264 4 -26.5 252 4 -26.5 264 -12
2 24 -29.5 264 16 -29.5 264 -12
2 24 -26.5 264 16 -26.5 264 -12
0 BFC INVERTNEXT
1 16 -26.5 16 16 0 -3 0 0 0 -12 -12 0 0 1-4cylo.dat
1 16 -29.5 16 16 0 1 0 0 0 -12 -12 0 0 1-4ndis.dat
1 16 -26.5 16 16 0 -1 0 0 0 -12 -12 0 0 1-4ndis.dat
3 16 -29.5 4 4 -29.5 16 4 -29.5 4 -12
3 16 -26.5 16 4 -26.5 4 4 -26.5 4 -12
2 24 -29.5 4 16 -29.5 4 -12
2 24 -26.5 4 16 -26.5 4 -12
4 16 -29.5 4 -12 -29.5 16 4 -29.5 252 4 -29.5 264 -12
4 16 -26.5 252 4 -26.5 16 4 -26.5 4 -12 -26.5 264 -12
4 16 -29.5 252 4 -29.5 16 4 -26.5 16 4 -26.5 252 4

2 24 -29.5 252 4 -29.5 16 4
2 24 -26.5 16 4 -26.5 252 4
2 24 -26.5 4 -12 -26.5 264 -12

0 // between hinge plates
1 16 0 53 0 0 0 20 0 182 0 -20 0 0 5-16cyli.dat
2 24 -12 53 -12 -12 235 -12
2 24 -12 53 -16 -12 235 -16
0 BFC INVERTNEXT
1 16 0 53 0 0 0 16 0 182 0 -16 0 0 3-16cylo.dat
2 24 18.478 53 7.654 18.478 235 7.654
2 24 14.7824 53 6.1232 14.7824 235 6.1232
4 16 14.7824 53 6.1232 14.7824 235 6.1232 14.7824 235 -6.1232 14.7824 53 -6.1232
4 16 18.478 53 7.654 18.478 235 7.654 14.7824 235 6.1232 14.7824 53 6.1232
4 16 -20 53 -12 -12 53 -12 -12 235 -12 -20 235 -12
4 16 -12 53 -12 -12 53 -16 -12 235 -16 -12 235 -12
4 16 -12 53 -16 0 53 -16 0 235 -16 -12 235 -16

0 // above upper hinge
4 16 -14 48 -16 -18 48 -12 -18 4 -12 -14 4 -16
4 16 -18 48 -12 -20 48 -12 -26.5 4 -12 -18 4 -12
3 16 -14 4 -16 -18 4 -12 -18 0 -12
3 16 -20 48 -12 -20 53 -12 -26.5 4 -12
2 24 -18 48 -12 -18 4 -12
2 24 -12 0 -18 -18 0 -12
2 24 -20 4 14 -20 4 -6
2 24 -18 4 -12 -20 4 -6
2 24 -18 0 -12 -20 0 -6
5 24 -18 4 -12 -18 0 -12 -20 4 -6 -12 0 -18
5 24 -20 4 -6 -20 0 -6 -20 4 20 -18 0 -12
4 16 -18 0 -12 -18 4 -12 -20 4 -6 -20 0 -6
4 16 -20 0 -6 -20 4 -6 -20 4 14 -20 0 14

0 // below lower hinge
4 16 -26.5 264 -12 -20 240 -12 -18 240 -12 -18 264 -12
4 16 -20 264 -6 -18 264 -12 -18 288 -12 -20 288 -6
4 16 -18 288 -12 -18 240 -12 -14 240 -16 -14 284 -16
4 16 -20 264 20 -20 264 -6 -20 288 -6 -20 288 20
5 24 -18 264 -12 -18 288 -12 -20 264 -6 -12 288 -18
5 24 -20 264 -6 -20 288 -6 -20 264 20 -18 288 -12
2 24 -20 264 20 -20 264 -6
2 24 -18 264 -12 -20 264 -6
2 24 -18 288 -12 -20 288 -6
2 24 -12 288 -18 -18 288 -12
2 24 -18 240 -12 -18 264 -12
3 16 -20 235 -12 -20 240 -12 -26.5 264 -12
3 16 -20 264 -6 -20 264 -12 -18 264 -12
2 24 -20 264 -12 -18 264 -12
2 24 -20 288 20 -20 264 20
2 24 -20 288 20 -20 288 -6

0 // front
4 16 -16 4 -20 -16 264 -20 -2 240 -20 -2 48 -20
3 16 -12 4 -20 -2 48 -20 -2 4 -20
3 16 -12 4 -20 -16 4 -20 -2 48 -20
3 16 -12 0 -20 -16 4 -20 -12 4 -20
3 16 -16 264 -20 -2 284 -20 -2 240 -20
4 16 -2 240 -20 0 235 -20 0 53 -20 -2 48 -20
2 24 -296 4 20 -26 4 20
2 24 -296 4 20 -296 264 20
2 24 -20 264 20 -296 264 20

0 // back
2 24 -12 288 -20 -300 288 -20
2 24 -20 288 20 -300 288 20
2 24 -300 288 20 -300 288 -20
4 16 -296 264 20 -20 264 20 -20 288 20 -300 288 20
4 16 -296 264 20 -300 288 20 -300 0 20 -296 4 20
4 16 -26 0 20 -26 4 20 -296 4 20 -300 0 20

Status:

Certified (ACCN)

Current Votes:

User	Vote
OrionP	Admin Review
Holly-Wood	Certify
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2024-12-17 17:21:21

Rene Rechthaler [Blechtaler]

made the following comment.

2024-12-17 17:27:57

will this get used somewhere else?
normally, subparts which are used only one in one part can get inlined...
Or change it: for example, the window could get cut in half and put here instead the brickworks

Peter Blomberg [WUIt]

made the following comment.

2024-12-19 10:23:47

Will not be used somewhere else. Yes, it could be inlined. Had it separated to make editing faster.
Hmm. I could move the castle-specific features here and leave the main part for reuse in 51260. Unfortunately, I do not have it (51260).
Well, put the reusable stuff here and have all castle-specific things in the main part.

Peter Blomberg [WUIt]

submitted a new version of the part.

2024-12-22 05:18:49

Inlined brickworks as suggested. Separated hinges and wall frame into subpart to be reused for 51260. Unfortunately, I do not have that part and online pictures didn't reveal the locations of the vertical reinforcements on back.

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-04-06 09:10:02

Duplo hinges according to https://forums.ldraw.org/thread-28747-post-56962.html

Peter Blomberg [WUIt]

edited the part header.

2025-04-30 20:52:52

Header Edits

description:
~Duplo Wall 1 x 8 x 6 with Castle Window and Hinge on Right (Frame)
to
~Duplo Wall 1 x 8 x 6 with Castle Window and Hinge on Right - Frame

Comment:
Changed parenthesis to dash in description

Willy Tschager [Holly-Wood]

posted a vote of Hold.

2025-06-16 06:27:22

* 1 16 140 238 0 -6.5 0 0 0 2 0 0 0 6.5 4-4cylc.dat should have a corresponding ndis

* 1 16 60 288 0 -18 0 0 0 -20 0 0 0 -16 box5.dat + reinforcements should be subbed

* Top and bottom hinge look symmetrical and should be subbed as well:

2 273 154.142 239.4645 -14.142 125.858 239.4645 14.142

* Too long:

2 24 128 48 -18 122 48 -12
2 24 128 240 -18 122 240 -12

* Edger adds a lot of conds.

Willy Tschager [Holly-Wood]

made the following comment.

2025-06-16 07:02:14

* It would probably better to use a

1 16 140 238 0 0 0 20 0 -3 0 20 0 0 3-16cylo.dat

and move the cylinder to the very top:

1 16 140 50 0 0 0 20 0 188 0 -20 0 0 5-16cyli.dat

* Also a:

1 25 140 235 0 0 0 20 0 1 0 20 0 0 3-16disc.dat
4 25 140 235 0 140 235 20 132.346 235 18.478 125.858 235 14.142
4 25 140 235 0 125.858 235 14.142 121.522 235 7.654 120 235 0

would result in minor gaps during prim substitution.

* Finally you could try a:

1 16 140 48.75 0 0 0 3 0 -.75 0 3 0 0 3-16con4.dat
1 16 140 50 0 0 0 5 0 -1.25 0 5 0 0 3-16con3.dat

Peter Blomberg [WUIt]

submitted a new version of the part.

2025-07-21 08:44:28

Added ndis, subfiled box and hinge, reworked round parts of hinge after adding the suggested cones.

Willy Tschager [Holly-Wood]

posted a vote of Certify.

2025-07-22 11:23:10

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-07-22 13:00:42

Peter Blomberg [WUIt]

submitted a new version of the part.
