Unofficial File parts/6228775u.dat
Part Attributes:
File Header:

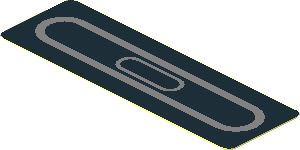

0 Sticker 0.8 x 2.5 with Silver Ellipses on Black Background
0 Name: 6228775u.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 42083stk01, Bugatti Chiron, Lego Technic
0 !KEYWORDS Rebrickable 38973, set 42083
0 !HISTORY 2025-08-02 [jb70] Using stickerback subfile
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback008x025.dat
0 // Sticker-Front
1 0 -23.5 -0.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 23.5 -0.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 23.5 -0.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 0 -23.5 -0.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 0 -18.5 -0.25 0 0 0 -3 0 1 0 -3 0 0 2-4chrd.dat
1 0 -18.5 -0.25 0 0 0 -4.5 0 1 0 -4.5 0 0 2-4ndis.dat
1 0 -4.3 -0.25 0 0 0 -1.5 0 1 0 -1.5 0 0 2-4chrd.dat
1 0 18.5 -.25 0 0 0 4.5 0 1 0 -4.5 0 0 2-4ndis.dat
1 0 -4.3 -0.25 0 0 0 -2.25 0 1 0 -2.25 0 0 2-4ndis.dat
1 0 4.3 -0.25 0 0 0 2.25 0 1 0 -2.25 0 0 2-4ndis.dat
1 0 4.3 -0.25 0 0 0 1.5 0 1 0 1.5 0 0 2-4chrd.dat
1 0 18.5 -.25 0 0 0 3 0 1 0 -3 0 0 2-4chrd.dat
1 80 -18.5 -0.25 0 0 0 -1 0 1 0 -1 0 0 2-4ring3.dat
1 80 -18.5 -0.25 0 0 0 -.5 0 1 0 -0.5 0 0 2-4ring8.dat
1 80 18.5 -.25 0 0 0 1 0 1 0 -1 0 0 2-4ring3.dat
1 80 18.5 -.25 0 0 0 .5 0 1 0 -.5 0 0 2-4ring8.dat
1 80 -4.3 -0.25 0 0 0 -.5 0 1 0 -.5 0 0 2-4ring3.dat
1 80 -4.3 -0.25 0 0 0 -.25 0 1 0 -.25 0 0 2-4ring8.dat
1 80 4.3 -.25 0 0 0 .5 0 1 0 -.5 0 0 2-4ring3.dat
1 80 4.3 -.25 0 0 0 .25 0 1 0 -.25 0 0 2-4ring8.dat
4 80 -18.5 -.25 4 -18.5 -.25 3 18.5 -.25 3 18.5 -.25 4
4 80 -18.5 -.25 4.5 -18.5 -.25 4 18.5 -.25 4 18.5 -.25 4.5
4 80 -18.5 -.25 -3 -18.5 -.25 -4 18.5 -.25 -4 18.5 -.25 -3
4 80 -18.5 -.25 -4 -18.5 -.25 -4.5 18.5 -.25 -4.5 18.5 -.25 -4
4 80 -4.3 -.25 2 -4.3 -.25 1.5 4.3 -.25 1.5 4.3 -.25 2
4 80 -4.3 -.25 2.25 -4.3 -.25 2 4.3 -.25 2 4.3 -.25 2.25
4 80 -4.3 -.25 -1.5 -4.3 -.25 -2 4.3 -.25 -2 4.3 -.25 -1.5
4 80 -4.3 -.25 -2 -4.3 -.25 -2.25 4.3 -.25 -2.25 4.3 -.25 -2
4 0 4.3 -.25 1.5 -4.3 -.25 1.5 -4.3 -.25 -1.5 4.3 -.25 -1.5
3 0 -18.5 -.25 3 -6.55 -.25 2.25 -4.3 -.25 2.25
4 0 25 -.25 -6.5 25 -.25 6.5 23 -.25 4.5 23 -.25 -4.5
4 0 -23 -.25 4.5 -25 -.25 6.5 -25 -.25 -6.5 -23 -.25 -4.5
3 0 -4.3 -.25 -2.25 -6.55 -.25 -2.25 -18.5 -.25 -3
4 0 -4.3 -.25 2.25 4.3 -.25 2.25 18.5 -.25 3 -18.5 -.25 3
4 0 4.3 -.25 -2.25 -4.3 -.25 -2.25 -18.5 -.25 -3 18.5 -.25 -3
4 0 6.55 -.25 -2.25 18.5 -.25 -3 18.5 -.25 3 6.55 -.25 2.25
4 0 -18.5 -.25 3 -18.5 -.25 -3 -6.55 -.25 -2.25 -6.55 -.25 2.25
3 0 4.3 -.25 2.25 6.55 -.25 2.25 18.5 -.25 3
3 0 6.55 -.25 -2.25 4.3 -.25 -2.25 18.5 -.25 -3
4 0 18.5 -.25 4.5 23 -.25 4.5 25 -.25 6.5 23.5 -.25 8
4 0 -18.5 -.25 4.5 18.5 -.25 4.5 23.5 -.25 8 -23.5 -.25 8
4 0 -23 -.25 4.5 -18.5 -.25 4.5 -23.5 -.25 8 -25 -.25 6.5
4 0 25 -.25 -6.5 23 -.25 -4.5 18.5 -.25 -4.5 23.5 -.25 -8
4 0 23.5 -.25 -8 18.5 -.25 -4.5 -18.5 -.25 -4.5 -23.5 -.25 -8
4 0 -23.5 -.25 -8 -18.5 -.25 -4.5 -23 -.25 -4.5 -25 -.25 -6.5
Status:
Needs More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2024-12-18 18:52:08
2024-12-19 08:04:08
2024-12-19 16:35:50
using 2-4chrd instead of 2-4disc can help for that (to get rid of the center vertex)
they are otherwise identical
they are otherwise identical
I used a new stickerback subfile and changed dimensions from 0.8 x 2.8 to 0.8 x 2.5 which I measured on my stickersheet.
Used 2-4chrd. Again what learned!
Creative Commons Attribution License information
This part is copyright © Gabriel Läufer
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Jens Brühl,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
A minor nitpick would be that T-junc caused by the disc prims is sometimes adressed and sometimes not. Some probably would not mind in this case, but usually it's better to have the T-junc removed.
