Unofficial File parts/6228775p.dat
Part Attributes:
File Header:

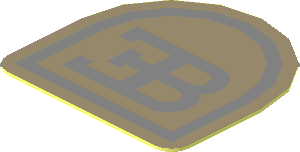

0 Sticker 0.8 x 0.8 Halfround with Silver Bugatti "EB" Logo
0 Name: 6228775p.dat
0 Author: Gabriel Läufer [Dr.Bricktacular]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 42083stk01, Brickowl 885585, Bugatti Chiron, Lego Technic
0 !KEYWORDS Rebrickable 38973, set 42083
0 !HISTORY 2025-08-03 [jb70] Using stickerback subfile
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback008x008a.dat
0 // Sticker-Front
1 28 -6.5 -0.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 28 6.5 -0.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 28 0 -0.25 -1.6 0.4 0 0 0 1 0 0 0 0.4 logo-bugatti-eb-box.dat
1 80 0 -0.25 -1.6 0.4 0 0 0 1 0 0 0 0.4 logo-bugatti-eb.dat
1 28 0 -0.25 0 1 0 0 0 1 0 0 0 1 2-4ring7.dat
1 80 0 -0.25 0 1 0 0 0 1 0 0 0 1 2-4ring6.dat
1 28 0 -0.25 0 6 0 0 0 1 0 0 0 6 1-8chrd.dat
1 28 0 -0.25 0 -6 0 0 0 1 0 0 0 6 1-8chrd.dat
1 28 0 -0.25 0 0 0 6 0 1 0 6 0 0 1-8chrd.dat
1 28 0 -0.25 0 0 0 -6 0 1 0 6 0 0 1-8chrd.dat
4 80 7 -.25 -7 7 -.25 0 6 -.25 0 6 -.25 -6
4 80 -7 -.25 -7 7 -.25 -7 6 -.25 -6 -6 -.25 -6
4 80 -7 -.25 -7 -6 -.25 -6 -6 -.25 0 -7 -.25 0
3 28 0 -.25 6 -4.2426 -.25 4.2426 4.2426 -.25 4.2426
4 28 4.76 -.25 -3 4.76 -.25 -5 6 -.25 -6 6 -.25 0
3 28 4.76 -.25 -1 4.76 -.25 -3 6 -.25 0
3 28 4.76 -.25 -1 6 -.25 0 4.76 -.25 1.8
3 28 4.76 -.25 1.8 6 -.25 0 4.2426 -.25 4.2426
3 28 4.52 -.25 1.8 4.76 -.25 1.8 4.2426 -.25 4.2426
4 28 -6 -.25 -6 -4.76 -.25 -5 -4.76 -.25 -3.28 -6 -.25 0
3 28 -6 -.25 0 -4.76 -.25 -3.28 -4.76 -.25 .08
3 28 -6 -.25 0 -4.76 -.25 .08 -4.76 -.25 1.8
3 28 -6 -.25 0 -4.76 -.25 1.8 -4.2426 -.25 4.2426
4 28 4.2426 -.25 4.2426 -4.2426 -.25 4.2426 -4.76 -.25 1.8 2.56 -.25 1.8
3 28 4.2426 -.25 4.2426 2.56 -.25 1.8 4.52 -.25 1.8
4 28 2.76 -.25 -5 -4.76 -.25 -5 -6 -.25 -6 6 -.25 -6
3 28 2.76 -.25 -5 6 -.25 -6 4.76 -.25 -5
4 28 -7 -.25 0 -8 -.25 0 -8 -.25 -6.5 -7 -.25 -7
4 28 7 -.25 -7 -7 -.25 -7 -6.5 -.25 -8 6.5 -.25 -8
4 28 8 -.25 -6.5 8 -.25 0 7 -.25 0 7 -.25 -7
3 28 8 -.25 -6.5 7 -.25 -7 6.5 -.25 -8
3 28 -6.5 -.25 -8 -7 -.25 -7 -8 -.25 -6.5
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Gabriel Läufer [Dr.Bricktacular]
initially submitted the part.
2024-12-18 20:08:40
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2024-12-19 07:31:28
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-19 08:47:12
Used 2-4cyli for the outside. Overlapping triangles removed. Outlines thickness corretced.
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2024-12-19 09:17:11
*try to use some 1-4chrd or 1-8chrd prims to pad the inner most ring to the surrounding geometry, otherwise there will be gaps at higher resolutions
*these 2 vertices can be merged to their respective outer corners:
2 12 -6.975 -.25 -7 -7.2 -.25 -7.2
2 12 6.975 -.25 -7 7.2 -.25 -7.2
*T-junc around the logo:
2 2 -5.06 -.25 -.018 -5.06 -.25 -3.582
2 2 2.86 -.25 1.962 5.06 -.25 1.962
2 2 5.06 -.25 -.238 5.06 -.25 -1.80638
2 2 5.06 -.25 -3.362 5.06 -.25 -5.562
2 2 2.86 -.25 -5.562 5.06 -.25 -5.562
*these 2 vertices can be merged to their respective outer corners:
2 12 -6.975 -.25 -7 -7.2 -.25 -7.2
2 12 6.975 -.25 -7 7.2 -.25 -7.2
*T-junc around the logo:
2 2 -5.06 -.25 -.018 -5.06 -.25 -3.582
2 2 2.86 -.25 1.962 5.06 -.25 1.962
2 2 5.06 -.25 -.238 5.06 -.25 -1.80638
2 2 5.06 -.25 -3.362 5.06 -.25 -5.562
2 2 2.86 -.25 -5.562 5.06 -.25 -5.562
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-20 09:02:33
Chris Böhnke [KnightOfTarenta]
made the following comment.
2024-12-20 10:08:14
Sorry I didn't see it last time, but there is an obsolete ring primitive. Please change this line
1 28 0 -0.25 0 0.45 0 0 0 1 0 0 0 0.45 2-4rin16.dat
to
1 28 0 -0.25 0 0.45 0 0 0 1 0 0 0 0.45 2-4ring16.dat
Everything else is fine.
1 28 0 -0.25 0 0.45 0 0 0 1 0 0 0 0.45 2-4rin16.dat
to
1 28 0 -0.25 0 0.45 0 0 0 1 0 0 0 0.45 2-4ring16.dat
Everything else is fine.
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-20 11:33:17
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-20 12:29:35
if you replace the bottom 2-4 disc with a 2-4 chrd you may get rid of that triangle
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-20 20:45:41
Chris Böhnke [KnightOfTarenta]
made the following comment.
2024-12-21 08:22:06
*Found a gap in the pattern. The 1-4chrd at the top of the inner area is turned 45 degree. Turning circular prims at angles not multiples of 90 degree causes rounding errors, thus the gap.
The idea to use lesser prims is good, but in this case it's better to go simple:
1 28 0 -.25 0 0 0 6.2 0 1 0 6.2 0 0 1-8chrd.dat
1 28 0 -.25 0 0 0 -6.2 0 1 0 6.2 0 0 1-8chrd.dat
4 28 2.86 -.25 1.962 5.06 -.25 1.962 4.38402 -.25 4.38402 0 -.25 6.2
4 28 0 -.25 6.2 -4.38402 -.25 4.38402 -5.06 -.25 1.962 2.86 -.25 1.962
Also did you try if it's possible to scale (and position) the logo minimally different to get rid of the high accuracy decimals?
The idea to use lesser prims is good, but in this case it's better to go simple:
1 28 0 -.25 0 0 0 6.2 0 1 0 6.2 0 0 1-8chrd.dat
1 28 0 -.25 0 0 0 -6.2 0 1 0 6.2 0 0 1-8chrd.dat
4 28 2.86 -.25 1.962 5.06 -.25 1.962 4.38402 -.25 4.38402 0 -.25 6.2
4 28 0 -.25 6.2 -4.38402 -.25 4.38402 -5.06 -.25 1.962 2.86 -.25 1.962
Also did you try if it's possible to scale (and position) the logo minimally different to get rid of the high accuracy decimals?
Chris Böhnke [KnightOfTarenta]
made the following comment.
2024-12-21 08:31:03
Please ignore the comment about the logo scaling, accuracy is fine (caused by the chrd prims).
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-21 08:47:44
Chris Böhnke [KnightOfTarenta]
made the following comment.
2024-12-21 16:39:42
New T-junc :(
2 4 2.86 -.25 1.962 5.06 -.25 1.962
2 4 2.86 -.25 1.962 5.06 -.25 1.962
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-21 19:34:39
Chris Böhnke [KnightOfTarenta]
made the following comment.
2024-12-21 19:50:04
Did you use Unificator on this version?
There are tiny gaps/overlaps.
(LDPE > Tools > Unificator > Snap on... > vertices and Sub-Part vertices. > OK)
There are tiny gaps/overlaps.
(LDPE > Tools > Unificator > Snap on... > vertices and Sub-Part vertices. > OK)
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2024-12-21 20:11:49
Unificator used.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2024-12-24 14:00:25
3 4 5.06 -.25 -1.794 5.06 -.25 -1.806 6.2 -.25 0
This long stretched triangle is caused by the logo file (which uses a similar long quad). I guess it would be best to wait for the logo file to be fixed or certified, before continuing on this part.
This long stretched triangle is caused by the logo file (which uses a similar long quad). I guess it would be best to wait for the logo file to be fixed or certified, before continuing on this part.
Jens Brühl [jb70]
made the following comment.
2025-01-03 19:47:39
I have updated the geometry of the logo primitives. This file should be adapted fit to the new geometry dimensions.
Magnus Forsberg [MagFors]
posted a vote of Hold
2025-01-05 16:43:21
Gaps around the logo.
Gabriel Läufer [Dr.Bricktacular]
submitted a new version of the part (all votes reset).
2025-01-26 16:41:23
Sticker design adpated to the new logo primitves. Gaps removed.
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2025-01-27 00:49:27
*still 2 tiny gaps here:
2 5 -4.38402 -.25 4.38402 0 -.25 6.2
2 5 0 -.25 6.2 4.384 -.25 4.384
2 5 -4.38402 -.25 4.38402 0 -.25 6.2
2 5 0 -.25 6.2 4.384 -.25 4.384
Gabriel Läufer [Dr.Bricktacular]
made the following comment.
2025-02-05 19:52:43
Have checked the part. Dont see gaps on the mentioned position. Can you please clarify?
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2025-08-03 16:22:18
The tiny gaps were caused by different rounding between vertices and prims.
I solved that, created a stickerback subfile and corrected the dimensions from 0.9 to 0.8.
I solved that, created a stickerback subfile and corrected the dimensions from 0.9 to 0.8.
