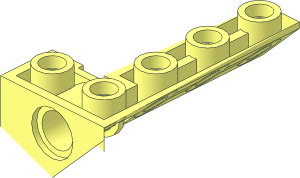

0 ~Slope Brick 45 6 x 8 Double Inverted with 4 x 6 Cutout - Quarter
0 Name: s\5119s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02
Show contents
1 16 30 24 -70 1 0 0 0 1 0 0 0 1 s\5117s03.dat
1 16 50 0 -30 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 50 0 -10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 50 0 -30 1 0 0 0 3 0 0 0 1 stud2s2e.dat
1 16 50 3 -30 1 0 0 0 6 0 0 0 1 stud2s2.dat
1 16 50 0 -10 1 0 0 0 3 0 0 0 1 stud2s2e.dat
1 16 50 3 -10 1 0 0 0 6 0 0 0 1 stud2s2.dat
2 24 43 0 -57 43 0 -1.5
2 24 57 0 -1.5 43 0 -1.5
2 24 57 0 -77 57 0 -1.5
3 16 40 0 -60 43 0 -57 43 0 -1.5
3 16 57 0 -1.5 57 0 -77 60 0 -80
2 24 57 0 -1.5 57 2 -1.5
4 16 57 0 -77 57 0 -1.5 57 2 -1.5 57 2 -77
2 24 57 2 -1.5 43 16 -1.5
4 16 57 2 -1.5 43 16 -1.5 43 16 -57 50 9 -57
3 16 57 2 -1.5 50 9 -57 57 2 -77
4 16 43 0 -1.5 43 0 -57 43 16 -57 43 16 -1.5
2 24 43 0 -1.5 43 16 -1.5
2 24 43 16 -57 43 16 -1.5
2 24 57 2 -77 57 2 -1.5
4 16 57 0 -1.5 43 0 -1.5 43 16 -1.5 57 2 -1.5
0 // Fillets
2 24 48.5 0 -44.2983 50 0 -44
2 24 50 0 -44 51.5 0 -44.2983
2 24 48.5 0 -35.7017 50 0 -36
2 24 50 0 -36 51.5 0 -35.7017
1 16 48.5 5.25 -40 0 1 0 0 0 -5.25 -4.2983 0 0 rect.dat
4 16 50 0 -36 48.5 0 -35.7017 48.5 0 -44.2983 50 0 -44
4 16 50 0 -44 51.5 0 -44.2983 51.5 0 -35.7017 50 0 -36
1 16 51.5 3.75 -40 0 -1 0 3.75 0 0 0 0 4.2983 rect.dat
2 24 50 0 -24 51.5 0 -24.2983
2 24 48.5 0 -15.7017 50 0 -16
2 24 50 0 -16 51.5 0 -15.7017
2 24 48.5 0 -24.2983 50 0 -24
1 16 48.5 5.25 -20 0 1 0 0 0 -5.25 -4.2983 0 0 rect.dat
4 16 50 0 -16 48.5 0 -15.7017 48.5 0 -24.2983 50 0 -24
4 16 50 0 -24 51.5 0 -24.2983 51.5 0 -15.7017 50 0 -16
1 16 51.5 3.75 -20 0 -1 0 3.75 0 0 0 0 4.2983 rect.dat
0 // Bottom Corner
2 24 31.68508 13.44415 -64.5 31.68508 13.44415 -76
2 24 40 16 -60 40 18 -60
2 24 40 18 -60 40 24 -60
1 16 40 10 -60 0 0 -8 8 0 0 0 -1 0 1-8tndis.dat
3 16 40 18 -60 40 24 -60 34.3432 18 -60
3 16 34.3432 18 -60 40 24 -60 20 16 -60
3 16 34.3432 18 -60 20 16 -60 32 15.6568 -60
3 16 34.3432 15.6568 -60 34.3432 18 -60 32 15.6568 -60
Status:
Official
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 2 24 31.68508 13.44415 -64.5 31.68508 13.44415 -76
