File Detail parts/5843.dat

Official File parts/5843.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

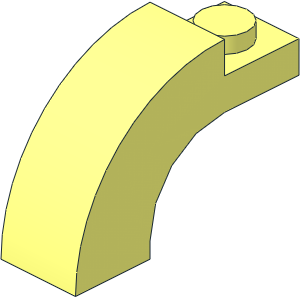

0 Arch  1 x  3 x  1.667 with Curved Top
0 Name: 5843.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2024-12-21 [GeraldLasser] Derived from 6005 by James Jessiman
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04
