Unofficial File parts/s/5414s01.dat
File Header:

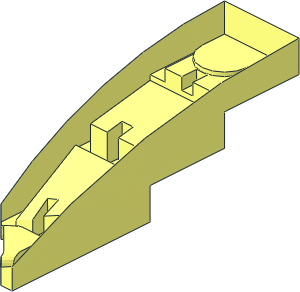

0 ~Slope Brick Curved 4 x 1 with Cutout Right without Top Face
0 Name: s\5414s01.dat
0 Author: Evert-Jan Boer [ejboer]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
3 16 1.5 15.75 -16 -1.5 17.25 -16 -6 12 -4
3 16 6 16 -20 1.5 18 -20 1.5 15.75 -16
4 16 -6 12 -4 -1.5 17.25 -16 -1.5 19.75 -20 -6 22 -20
3 16 6 16 -20 -6 12 -4 6 12 -4
3 16 1.5 15.75 -16 -6 12 -4 6 16 -20
0 BFC INVERTNEXT
1 16 3.75 6.5 22 0 -2.25 0 -1.5 0 0 0 0 -2 box3-7a.dat
0 BFC INVERTNEXT
1 16 -3.75 6.5 22 0 2.25 0 -1.5 0 0 0 0 -2 box3-7a.dat
1 16 0 6.5 22 1.5 0 0 0 0 1.5 0 2 0 box2-5.dat
0 BFC INVERTNEXT
1 16 0 4 30 6 0 0 0 1 0 0 0 -6 2-4cylo.dat
1 16 0 5 30 -6 0 0 0 -1 0 0 0 -6 2-4ndis.dat
1 16 0 4 30 -6 0 0 0 -1 0 0 0 -6 2-4chrd.dat
1 16 0 4 40 10 0 0 0 0 4 0 -1 0 rect.dat
1 16 0 11 16 6 0 0 0 0 -5 0 1 0 rect.dat
1 16 0 18 -4 6 0 0 0 0 -6 0 1 0 rect.dat
1 16 0 12.125 2 1.5 0 0 0 0 3.875 0 2 0 box2-5.dat
1 16 0 6 36 6 0 0 0 0 -2 0 1 0 rect.dat
1 16 0 24 -18 -1.5 0 0 0 -1 0 0 0 2 rect3.dat
1 16 0 4 33 0 0 6 0 -1 0 3 0 0 rect2p.dat
1 16 3.75 12.5 0 -2.25 0 0 0 0 -3.5 0 -1 0 rect1.dat
1 16 -3.75 12.5 0 2.25 0 0 0 0 3.5 0 -1 0 rect1.dat
3 16 -10 24 0 -10 16 0 -6 16 0
3 16 6 16 0 10 16 0 10 24 0
3 16 -10 16 20 -10 8 20 -6 8 20
3 16 6 8 20 10 8 20 10 16 20
3 16 7 24 -37 5.657 24 -35.657 6 24 -34.939
3 16 4.109 19.638 -33.596 6 20.194 -32.164 4.177 19.983 -34.153
3 16 4.109 19.638 -33.596 6 19.794 -31.57 6 20.194 -32.164
3 16 4.177 19.983 -34.153 6 20.194 -32.164 6 20.597 -32.501
3 16 4.177 19.983 -34.153 6 20.597 -32.501 4.398 20.455 -34.384
3 16 4.398 20.455 -34.384 6 20.597 -32.501 6 21.162 -32.608
3 16 4.398 20.455 -34.384 6 21.162 -32.608 4.512 21.088 -34.512
3 16 3.776 19.467 -33.021 6 19.794 -31.57 4.109 19.638 -33.596
3 16 3.776 19.467 -33.021 6 19.5 -30.898 6 19.794 -31.57
3 16 -3.556 19.657 -25.958 -1.204 19.668 -24 -.343 19.5 -24
3 16 4.512 21.088 -34.512 6 21.162 -32.608 6 22.657 -32.826
3 16 4.512 21.088 -34.512 6 22.657 -32.826 4.559 22.687 -34.559
3 16 4.559 22.687 -34.559 6 22.657 -32.826 6 23.367 -33.138
3 16 4.559 22.687 -34.559 6 23.367 -33.138 4.829 23.433 -34.829
3 16 4.829 23.433 -34.829 6 23.367 -33.138 6 23.816 -33.925
3 16 4.829 23.433 -34.829 6 23.816 -33.925 5.195 23.824 -35.195
3 16 -4.38 20.444 -25.621 -2.365 20.396 -24 -1.85 19.947 -24
3 16 -1.85 19.947 -24 -4.243 20 -25.757 -4.38 20.444 -25.621
3 16 -4.508 22.375 -25.492 -2.875 23.094 -24 -2.619 22.375 -24
3 16 -4.508 22.375 -25.492 -4.648 23.094 -25.353 -2.875 23.094 -24
3 16 -4.894 23.599 -25.107 -4.148 23.897 -24 -3.452 23.595 -24
3 16 -4.894 23.599 -25.107 -5.258 23.92 -24.743 -4.148 23.897 -24
3 16 -5 24 -24 -4.148 23.897 -24 -5.258 23.92 -24.743
3 16 -5 24 -24 -5.258 23.92 -24.743 -5.657 24 -24.343
3 16 4.398 20.455 -34.384 4.512 21.088 -34.512 7 20 -37
3 16 4.398 20.455 -34.384 7 20 -37 4.177 19.983 -34.153
3 16 -4.508 21.125 -25.492 -4.38 20.444 -25.621 -10 20 -20
3 16 -4.38 20.444 -25.621 -4.243 20 -25.757 -10 20 -20
3 16 6 22.657 -32.826 6 24 -24 6 23.367 -33.138
3 16 -2.619 22.375 -24 -2.875 23.094 -24 6 24 -24
3 16 -2.875 23.094 -24 -3.452 23.595 -24 6 24 -24
3 16 -3.452 23.595 -24 -4.148 23.897 -24 6 24 -24
3 16 -5 24 -24 6 24 -24 -4.148 23.897 -24
3 16 6 24 -20 6 24 -4 10 24 0
3 16 -6 5 24 -6 5 20 -6 8 20
3 16 6 8 20 6 5 20 6 5 24
3 16 6 24 -34.939 6 23.816 -33.925 6 24 -24
3 16 6 23.816 -33.925 6 23.367 -33.138 6 24 -24
3 16 -3.556 19.657 -25.958 -4.243 20 -25.757 -1.85 19.947 -24
3 16 -3.556 19.657 -25.958 -1.85 19.947 -24 -1.204 19.668 -24
3 16 -4.38 20.444 -25.621 -4.508 21.125 -25.492 -2.634 21.125 -24
3 16 -4.38 20.444 -25.621 -2.634 21.125 -24 -2.365 20.396 -24
3 16 5.657 24 -35.657 5.195 23.824 -35.195 6 24 -34.939
3 16 6 24 -34.939 5.195 23.824 -35.195 6 23.816 -33.925
3 16 10 8 20 10 16 0 10 16 20
3 16 -10 16 20 -6 8 20 -1.5 8 20
3 16 10 16 20 1.5 8 20 6 8 20
3 16 -5.657 24 -24.343 -5.999 24 -24.001 -5 24 -24
3 16 -10 24 -20 -6 24 -20 -5.999 24 -24.001
3 16 -10 20 -20 -10 24 -20 -5.999 24 -24.001
3 16 -3 19.494 -26.283 -3.556 19.657 -25.958 -.343 19.5 -24
3 16 -10 24 0 -6 16 0 -1.5 16 0
3 16 -10 24 0 -1.5 16 0 1.5 16 0
4 16 10 24 0 6 24 -4 -6 24 -4 -10 24 0
4 16 10 16 20 6 16 16 -6 16 16 -10 16 20
4 16 -10 16 0 -10 16 20 -6 16 16 -6 16 0
4 16 10 16 0 6 16 0 6 16 16 10 16 20
4 16 10 8 40 6 8 36 -6 8 36 -10 8 40
4 16 -10 8 20 -10 8 40 -6 8 36 -6 8 20
4 16 10 8 20 6 8 20 6 8 36 10 8 40
4 16 -6 9 0 -6 16 0 -6 16 16 -6 6 16
4 16 6 9 0 6 6 16 6 16 16 6 16 0
4 16 1.5 16 0 1.5 16 4 1.5 8.25 4 1.5 9 0
4 16 -1.5 16 4 -1.5 16 0 -1.5 9 0 -1.5 8.25 4
4 16 10 24 0 10 11.358 -21.229 10 18.62 -37 10 24 -37
4 16 10 5.09 -1.406 10 11.358 -21.229 10 24 0 10 16 0
4 16 10 8 20 10 1.284 19.121 10 5.09 -1.406 10 16 0
4 16 10 8 40 10 0 40 10 1.284 19.121 10 8 20
4 16 10 24 0 10 24 -37 6 24 -24 6 24 -20
4 16 7 24 -37 6 24 -34.939 6 24 -24 10 24 -37
3 16 6 24 -20 6 24 -24 1.5 24 -20
4 16 -2.619 22.375 -24 -2.634 21.125 -24 -4.508 21.125 -25.492 -4.508 22.375 -25.492
4 16 -2.875 23.094 -24 -4.648 23.094 -25.353 -4.894 23.599 -25.107 -3.452 23.595 -24
4 16 5.195 23.824 -35.195 5.657 24 -35.657 7 24 -37 7 20 -37
4 16 -10 24 0 -10 14.107 -11.659 -10 9.15 -2.427 -10 16 0
4 16 -10 8 20 -10 .587 28.927 -10 0 40 -10 8 40
4 16 -10 20 -20 -10 14.107 -11.659 -10 24 0 -10 24 -20
4 16 7 24 -37 10 24 -37 10 18.62 -37 7 20 -37
4 16 -6 22 -20 -6 24 -20 -6 24 -4 -6 12 -4
4 16 -4.508 21.125 -25.492 -10 20 -20 -4.648 23.094 -25.353 -4.508 22.375 -25.492
4 16 -4.648 23.094 -25.353 -10 20 -20 -5.258 23.92 -24.743 -4.894 23.599 -25.107
4 16 6 24 -4 6 24 -20 6 16 -20 6 12 -4
4 16 6 16 -20 6 24 -20 1.5 24 -20 1.5 18 -20
4 16 -6 24 -20 -6 22 -20 -1.5 19.75 -20 -1.5 24 -20
4 16 1.5 15.75 -16 1.5 24 -16 -1.5 24 -16 -1.5 17.25 -16
4 16 1.5 18 -20 1.5 24 -20 1.5 24 -16 1.5 15.75 -16
4 16 -1.5 24 -16 -1.5 24 -20 -1.5 19.75 -20 -1.5 17.25 -16
4 16 -6 4 30 -6 5 30 -6 8 36 -6 4 36
4 16 -6 8 36 -6 5 30 -6 5 24 -6 8 20
4 16 6 8 20 6 5 24 6 5 30 6 8 36
4 16 6 4 30 6 4 36 6 8 36 6 5 30
4 16 1.5 24 -20 6 24 -24 -5 24 -24 -1.5 24 -20
3 16 6 19.5 -30.898 3.776 19.467 -33.021 6 19.5 -24
4 16 -6 24 -4 -6 24 -20 -10 24 -20 -10 24 0
4 16 -10 16 20 -1.5 8 20 1.5 8 20 10 16 20
4 16 -1.5 24 -20 -5 24 -24 -5.999 24 -24.001 -6 24 -20
4 16 -3 19.494 -26.283 -.343 19.5 -24 6 19.5 -24 3.776 19.467 -33.021
4 16 -10 24 0 1.5 16 0 6 16 0 10 24 0
4 16 6 6 16 6 9 0 1.5 9 0 1.5 8.25 4
4 16 -6 6 16 6 6 16 1.5 8.25 4 -1.5 8.25 4
4 16 -6 6 16 -1.5 8.25 4 -1.5 9 0 -6 9 0
3 16 7 20 -37 4.512 21.088 -34.512 4.559 22.687 -34.559
4 16 5.195 23.824 -35.195 7 20 -37 4.559 22.687 -34.559 4.829 23.433 -34.829
4 16 -10 .587 28.927 -10 8 20 -10 5.196 7.527 -10 2.328 18.04
4 16 -10 9.15 -2.427 -10 5.196 7.527 -10 8 20 -10 16 20
3 16 -10 9.15 -2.427 -10 16 20 -10 16 0
4 16 -5.999 24 -24.001 -5.657 24 -24.343 -5.258 23.92 -24.743 -10 20 -20
4 16 -2.619 22.375 -24 6 24 -24 -2.365 20.396 -24 -2.634 21.125 -24
4 16 -1.204 19.668 -24 6 24 -24 6 19.5 -24 -.343 19.5 -24
4 16 -2.365 20.396 -24 6 24 -24 -1.204 19.668 -24 -1.85 19.947 -24
4 16 6 19.5 -24 6 24 -24 6 19.794 -31.57 6 19.5 -30.898
4 16 6 20.597 -32.501 6 20.194 -32.164 6 19.794 -31.57 6 24 -24
4 16 6 22.657 -32.826 6 21.162 -32.608 6 20.597 -32.501 6 24 -24
2 24 1.5 18 -20 1.5 15.75 -16
2 24 6 16 -20 1.5 18 -20
2 24 -1.5 17.25 -16 -1.5 19.75 -20
2 24 1.5 15.75 -16 -1.5 17.25 -16
2 24 -6 22 -20 -1.5 19.75 -20
5 24 6 16 -20 -6 12 -4 6 12 -4 1.5 18 -20
2 24 6 24 -34.939 6 23.816 -33.925
2 24 7 24 -37 5.657 24 -35.657
2 24 4.512 21.088 -34.512 4.398 20.455 -34.384
2 24 -10 2.328 18.04 -10 5.196 7.527
2 24 10 1.284 19.121 10 5.09 -1.406
2 24 6 23.367 -33.138 6 23.816 -33.925
2 24 -10 .587 28.927 -10 2.328 18.04
2 24 -2.634 21.125 -24 -2.365 20.396 -24
2 24 -6 22 -20 -6 12 -4
2 24 -2.875 23.094 -24 -2.619 22.375 -24
2 24 6 24 -20 6 16 -20
2 24 -10 0 40 -10 .587 28.927
2 24 1.5 24 -20 1.5 18 -20
2 24 6 16 0 6 16 16
2 24 4.829 23.433 -34.829 4.559 22.687 -34.559
2 24 -10 8 40 -10 8 20
2 24 6 5 24 6 5 30
2 24 -6 24 -20 -6 24 -4
2 24 10 11.358 -21.229 10 18.62 -37
2 24 -6 8 20 -6 8 36
2 24 4.177 19.983 -34.153 4.109 19.638 -33.596
2 24 4.559 22.687 -34.559 4.512 21.088 -34.512
2 24 -10 16 0 -6 16 0
2 24 -10 8 20 -6 8 20
2 24 -4.508 22.375 -25.492 -4.648 23.094 -25.353
2 24 4.109 19.638 -33.596 3.776 19.467 -33.021
2 24 6 22.657 -32.826 6 23.367 -33.138
2 24 -2.875 23.094 -24 -3.452 23.595 -24
2 24 10 18.62 -37 10 24 -37
2 24 -10 16 20 -10 8 20
2 24 -6 5 30 -6 5 24
2 24 -4.894 23.599 -25.107 -5.258 23.92 -24.743
2 24 10 0 40 10 1.284 19.121
2 24 7 20 -37 10 18.62 -37
2 24 6 24 -24 6 24 -34.939
2 24 10 24 -37 10 24 0
2 24 6 19.5 -30.898 6 19.5 -24
2 24 6 20.597 -32.501 6 21.162 -32.608
2 24 10 16 0 10 16 20
2 24 -5.258 23.92 -24.743 -5.657 24 -24.343
2 24 -1.5 24 -16 -1.5 17.25 -16
2 24 6 8 36 6 8 20
2 24 -4.243 20 -25.757 -3.556 19.657 -25.958
2 24 6 19.5 -24 6 24 -24
2 24 -5 24 -24 6 24 -24
2 24 -4.508 21.125 -25.492 -4.508 22.375 -25.492
2 24 1.5 24 -20 6 24 -20
2 24 -10 16 20 10 16 20
2 24 -2.365 20.396 -24 -1.85 19.947 -24
2 24 -10 14.107 -11.659 -10 20 -20
2 24 -1.5 19.75 -20 -1.5 24 -20
2 24 6 19.5 -30.898 6 19.794 -31.57
2 24 6 8 20 10 8 20
2 24 4.398 20.455 -34.384 4.177 19.983 -34.153
2 24 -4.508 21.125 -25.492 -4.38 20.444 -25.621
2 24 -4.148 23.897 -24 -3.452 23.595 -24
2 24 -6 22 -20 -6 24 -20
2 24 10 11.358 -21.229 10 5.09 -1.406
2 24 -4.243 20 -25.757 -4.38 20.444 -25.621
2 24 6 12 -4 6 16 -20
2 24 6 20.194 -32.164 6 20.597 -32.501
2 24 -1.204 19.668 -24 -.343 19.5 -24
2 24 -5 24 -24 -4.148 23.897 -24
2 24 -2.619 22.375 -24 -2.634 21.125 -24
2 24 6 19.794 -31.57 6 20.194 -32.164
2 24 10 24 -37 7 24 -37
2 24 10 16 20 10 8 20
2 24 10 8 20 10 8 40
2 24 -10 24 0 -10 24 -20
2 24 1.5 24 -16 1.5 15.75 -16
2 24 -.343 19.5 -24 6 19.5 -24
2 24 5.657 24 -35.657 5.195 23.824 -35.195
2 24 10 24 0 -10 24 0
2 24 -6 24 -20 -1.5 24 -20
2 24 -4.648 23.094 -25.353 -4.894 23.599 -25.107
2 24 6 24 -20 6 24 -4
2 24 6 21.162 -32.608 6 22.657 -32.826
2 24 -1.85 19.947 -24 -1.204 19.668 -24
2 24 6 16 0 10 16 0
2 24 10 16 0 10 24 0
2 24 5.195 23.824 -35.195 4.829 23.433 -34.829
2 24 -6 16 16 -6 16 0
2 24 -10 16 0 -10 16 20
2 24 -10 24 0 -10 16 0
2 24 -1.5 8.25 4 -1.5 9 0
2 24 1.5 8.25 4 1.5 9 0
2 24 -5.999 24 -24.001 -10 24 -20
2 24 -5.657 24 -24.343 -5.999 24 -24.001
2 24 -3 19.494 -26.283 -3.556 19.657 -25.958
2 24 -3 19.494 -26.283 3.776 19.467 -33.021
2 24 -10 20 -20 -4.243 20 -25.757
2 24 7 20 -37 4.177 19.983 -34.153
2 24 6 16 0 6 9 0
2 24 -6 9 0 -6 16 0
2 24 -6 9 0 -6 6 16
2 24 6 6 16 6 9 0
2 24 6 9 0 1.5 9 0
2 24 -1.5 9 0 -6 9 0
5 24 -1.85 19.947 -24 -4.38 20.444 -25.621 -2.365 20.396 -24 -4.243 20 -25.757
5 24 6 16 -20 1.5 15.75 -16 1.5 18 -20 6 12 -4
5 24 -3.452 23.595 -24 -4.894 23.599 -25.107 -4.148 23.897 -24 -2.875 23.094 -24
5 24 -4.894 23.599 -25.107 -4.148 23.897 -24 -5.258 23.92 -24.743 -3.452 23.595 -24
5 24 6 20.597 -32.501 4.177 19.983 -34.153 4.398 20.455 -34.384 6 20.194 -32.164
5 24 6 23.816 -33.925 4.829 23.433 -34.829 5.195 23.824 -35.195 6 23.367 -33.138
5 24 -4.508 21.125 -25.492 -2.634 21.125 -24 -4.38 20.444 -25.621 -4.506 23.625 -25.49
5 24 4.559 22.687 -34.559 6 22.657 -32.826 4.512 21.088 -34.512 6 23.367 -33.138
5 24 6 23.367 -33.138 4.559 22.687 -34.559 6 22.657 -32.826 4.829 23.433 -34.829
5 24 4.109 19.638 -33.596 6 20.194 -32.164 6 19.794 -31.57 4.177 19.983 -34.153
5 24 6 21.162 -32.608 4.512 21.088 -34.512 6 23.907 -32.826 4.398 20.455 -34.384
5 24 6 22.657 -32.826 4.512 21.088 -34.512 4.559 22.687 -34.559 6 21.162 -32.608
5 24 -1.5 19.75 -20 -6 22 -20 -1.5 24 -20 -1.5 17.25 -16
5 24 6 23.816 -33.925 5.195 23.824 -35.195 6 24 -34.939 4.829 23.433 -34.829
5 24 -2.619 22.375 -24 -4.508 22.375 -25.492 -2.634 21.125 -24 -2.875 23.094 -24
5 24 6 20.194 -32.164 4.177 19.983 -34.153 6 20.597 -32.501 4.109 19.638 -33.596
5 24 -4.38 20.444 -25.621 -2.365 20.396 -24 -2.634 21.125 -24 -4.243 20 -25.757
5 24 4.398 20.455 -34.384 6 20.597 -32.501 6 21.162 -32.608 4.177 19.983 -34.153
5 24 4.829 23.433 -34.829 6 23.367 -33.138 6 23.816 -33.925 4.559 22.687 -34.559
5 24 -4.508 22.375 -25.492 -2.875 23.094 -24 -4.648 23.094 -25.353 -2.619 22.375 -24
5 24 1.5 15.75 -16 -6 12 -4 -1.5 17.25 -16 6 12 -4
5 24 -5 24 -24 -5.657 24 -24.343 -5.258 23.92 -24.743 -6 24 -20
5 24 -2.634 21.125 -24 -4.38 20.444 -25.621 -2.365 20.396 -24 -4.508 21.125 -25.492
5 24 -4.648 23.094 -25.353 -2.875 23.094 -24 -4.508 22.375 -25.492 -4.894 23.599 -25.107
5 24 6 12 -4 1.5 15.75 -16 6 16 -20 -6 12 -4
5 24 3.776 19.467 -33.021 6 19.794 -31.57 6 19.5 -30.898 4.109 19.638 -33.596
5 24 4.109 19.638 -33.596 6 19.794 -31.57 3.776 19.467 -33.021 6 20.194 -32.164
5 24 5.195 23.824 -35.195 6 24 -34.939 5.657 24 -35.657 6 23.816 -33.925
5 24 -1.85 19.947 -24 -4.243 20 -25.757 -2.365 20.396 -24 -3.556 19.657 -25.958
5 24 5.657 24 -35.657 6 24 -34.939 7 24 -37 5.195 23.824 -35.195
5 24 -5.258 23.92 -24.743 -5 24 -24 -5.657 24 -24.343 -4.148 23.897 -24
5 24 6 21.162 -32.608 4.398 20.455 -34.384 4.512 21.088 -34.512 6 20.597 -32.501
5 24 -4.148 23.897 -24 -5.258 23.92 -24.743 -5 24 -24 -4.894 23.599 -25.107
5 24 -1.204 19.668 -24 -3.556 19.657 -25.958 -.343 19.5 -24 -1.85 19.947 -24
5 24 -.343 19.5 -24 -3.556 19.657 -25.958 -1.204 19.668 -24 -3 19.494 -26.283
5 24 -.343 19.5 -24 -3 19.494 -26.283 -3.556 19.657 -25.958 3.776 19.467 -33.021
5 24 -3.556 19.657 -25.958 -1.85 19.947 -24 -4.243 20 -25.757 -1.204 19.668 -24
5 24 6 19.5 -30.898 3.776 19.467 -33.021 6 19.794 -31.57 6 19.5 -24
5 24 3.776 19.467 -33.021 6 19.5 -24 6 19.5 -30.898 -3 19.494 -26.283
2 24 -10 5.196 7.527 -10 9.15 -2.427
2 24 -10 9.15 -2.427 -10 14.107 -11.659
2 24 7 24 -37 7 20 -37
2 24 -10 20 -20 -10 24 -20
5 24 4.391 20.455 -34.391 7 20 -37 4.177 19.983 -34.153 4.512 21.088 -34.512
5 24 10 1.284 19.12 -10 .587 28.927 -10 2.328 18.04 10 0 40
5 24 -10 2.328 18.04 10 5.09 -1.408 10 1.284 19.12 -10 5.196 7.527
5 24 10 5.09 -1.408 -10 5.196 7.527 -10 2.328 18.04 10 11.358 -21.232
5 24 -10 2.328 18.04 10 1.284 19.12 10 5.09 -1.408 -10 .587 28.927
5 24 7 20 -37 -10 14.107 -11.659 3.776 19.467 -33.021 10 18.62 -37
5 24 7 20 -37 4.512 21.088 -34.512 4.398 20.455 -34.384 4.559 22.687 -34.559
5 24 -10 9.15 -2.427 10 11.358 -21.229 10 18.62 -37 -10 5.196 7.527
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Hold |
Official parents and subparts
Part Events:
Evert-Jan Boer [ejboer]
initially submitted the part.
2024-12-22 19:24:26
subparted for patterns, changed box prims again (uploaded before save...)
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2024-12-24 13:58:01
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2024-12-24 14:02:23
if the 4long side matches s\61678s01.dat, the 3long side should match s\24309s01.dat
Takeshi Takahashi [RainbowDolphin]
cancelled their vote.
2024-12-24 15:20:09
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2024-12-24 15:41:24
Modified left curve, want to work on front as well, i think it needs to be lowered, there is room for that
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2024-12-24 15:47:25
small fix
Jeff Jones [notmaster]
made the following comment.
2024-12-24 16:19:28
what sets have a patterned version of this?
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-24 16:21:39
hm, thats strange: the 3x1 (50950) and 3x2 (24309) have a different amount of top surfaces...
guess that should be synchronized first, and this curvature should be used here then.
I would say 50950.dat should get reworked (there are small triangular stud holders missing) to match the 48\1-8cyli.dat from 24309.dat
guess that should be synchronized first, and this curvature should be used here then.
I would say 50950.dat should get reworked (there are small triangular stud holders missing) to match the 48\1-8cyli.dat from 24309.dat
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2024-12-27 08:50:25
Quick intermediate release, used the curve of 24309 as a reference, tweaked the front a bit, but still want to try to get the curve smoother
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2024-12-29 16:32:55
try moving the 7 19.2 -37 vertex to 7 20 -37
imagine fitting the front to this triangle:
3 16 10 18.6202 -37 -10 20 -20 10 20 -40
for the top, are these better?
4 16 10 1.2836 19.12 10 0 40 -10 0 40 -10 .5872 28.9266
3 16 10 1.2835758 19.12 -10 .5872 28.9266 -10 2.3284 18.0399
3 16 10 1.2835758 19.12 -10 2.3284 18.0399 10 5.0895 -1.408
3 16 10 5.0895 -1.408 -10 2.3284 18.0399 -10 5.1963 7.5265
3 16 10 5.0895 -1.408 -10 5.1963 7.5265 10 11.3582 -21.232
3 16 10 11.3582 -21.232 -10 5.1963 7.5265 -10 9.1499 -2.4268
3 16 10 11.3582 -21.232 -10 9.1499 -2.4268 10 18.6202 -37
3 16 10 18.6202 -37 -10 9.1499 -2.4268 -10 14.1072 -11.6589
3 16 -10 14.1072 -11.6589 -10 20 -20 10 18.6202 -37
imagine fitting the front to this triangle:
3 16 10 18.6202 -37 -10 20 -20 10 20 -40
for the top, are these better?
4 16 10 1.2836 19.12 10 0 40 -10 0 40 -10 .5872 28.9266
3 16 10 1.2835758 19.12 -10 .5872 28.9266 -10 2.3284 18.0399
3 16 10 1.2835758 19.12 -10 2.3284 18.0399 10 5.0895 -1.408
3 16 10 5.0895 -1.408 -10 2.3284 18.0399 -10 5.1963 7.5265
3 16 10 5.0895 -1.408 -10 5.1963 7.5265 10 11.3582 -21.232
3 16 10 11.3582 -21.232 -10 5.1963 7.5265 -10 9.1499 -2.4268
3 16 10 11.3582 -21.232 -10 9.1499 -2.4268 10 18.6202 -37
3 16 10 18.6202 -37 -10 9.1499 -2.4268 -10 14.1072 -11.6589
3 16 -10 14.1072 -11.6589 -10 20 -20 10 18.6202 -37
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-29 17:47:08
5 24 -1.5 20 -20 -6 22 -20 -1.5 24 -20 -1.5 17 -16
should get converted to a normal edge line
should get converted to a normal edge line
Rene Rechthaler [Blechtaler]
made the following comment.
2024-12-29 21:30:52
the bottom of the front cutout could get done with prims:
1 16 6 22.5858 -35 1 1 0 0 0 1.4142 -1 1 0 1-4cyls2.dat
1 16 6 22.5858 -35 -1 -.5 0 0 0 1.4142 1 -.5 0 1-4cyli.dat
1 16 5.5 22.5858 -35.5 -1 1 0 0 0 1.4142 1 0 0 1-4chrd.dat
1 16 5.5 22.5858 -35.5 -1 1 0 0 0 1.4142 1 0 0 1-4edge.dat
1 16 6 22.5858 -35 0 1 0 0 0 1.4142 2 0 0 1-4edge.dat
1 16 6 22.5858 -35 0 1 0 0 0 1.4142 2 0 0 1-4ndis.dat
1 16 6 22.5858 -35 1 1 0 0 0 1.4142 -1 1 0 1-4cyls2.dat
1 16 6 22.5858 -35 -1 -.5 0 0 0 1.4142 1 -.5 0 1-4cyli.dat
1 16 5.5 22.5858 -35.5 -1 1 0 0 0 1.4142 1 0 0 1-4chrd.dat
1 16 5.5 22.5858 -35.5 -1 1 0 0 0 1.4142 1 0 0 1-4edge.dat
1 16 6 22.5858 -35 0 1 0 0 0 1.4142 2 0 0 1-4edge.dat
1 16 6 22.5858 -35 0 1 0 0 0 1.4142 2 0 0 1-4ndis.dat
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-01-03 12:18:47
updated with suggestions (not including the prims yet)
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-01-03 17:34:16
Raised the center front a bit (0.25 LDU) and took a different angle for the front curve on the top. Still difficult to get it perfect while preserving the curves with adjacent pieces
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-01-06 18:55:06
some changes again to the front, renamed in line with similar parts to curved slope
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-01-27 16:55:11
Rene Rechthaler [Blechtaler]
made the following comment.
2025-01-27 17:33:03
no chance to use prims for the cutout chamfers?
Franklin W. Cain [fwcain]
posted a vote of Certify
2025-04-25 00:22:29
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2025-04-25 10:27:24
should be fitted to use this:
3 16 -10 5.1963 7.5265 -10 9.1499 -2.4268 10 11.3582 -21.2293
3 16 10 11.3582 -21.2293 -10 9.1499 -2.4268 10 18.6202 -37
4 16 7 20 -37 10 18.6202 -37 -10 9.1499 -2.4268 -10 14.1072 -11.6589
3 16 -10 14.1072 -11.6589 -10 20 -20 7 20 -37
as of now there are some bad condlines
this is also strange:
3 16 1.5 16 -16 -6 12 -4 6 12 -4
3 16 1.5 16 -16 -1.5 17 -16 -6 12 -4
3 16 6 16 -20 1.5 16 -16 6 12 -4
i guess the 6 18 -20 should be something like 6 17 -20
some vertices have way too much decimals, especially at the stud cutout
(prims? simpler chamfer? p16->p8? using p16 prims for intersections?)
3 16 -10 5.1963 7.5265 -10 9.1499 -2.4268 10 11.3582 -21.2293
3 16 10 11.3582 -21.2293 -10 9.1499 -2.4268 10 18.6202 -37
4 16 7 20 -37 10 18.6202 -37 -10 9.1499 -2.4268 -10 14.1072 -11.6589
3 16 -10 14.1072 -11.6589 -10 20 -20 7 20 -37
as of now there are some bad condlines
this is also strange:
3 16 1.5 16 -16 -6 12 -4 6 12 -4
3 16 1.5 16 -16 -1.5 17 -16 -6 12 -4
3 16 6 16 -20 1.5 16 -16 6 12 -4
i guess the 6 18 -20 should be something like 6 17 -20
some vertices have way too much decimals, especially at the stud cutout
(prims? simpler chamfer? p16->p8? using p16 prims for intersections?)
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2025-05-12 09:43:25
Changed surface
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2025-05-12 10:32:52
that one internal cavity looks strange, should be something like that:
3 16 1.5 15.75 -16 -1.5 17.25 -16 -6 12 -4
3 16 6 16 -20 1.5 18.25 -20 1.5 15.75 -16
4 16 -6 12 -4 -1.5 17.25 -16 -1.5 19.75 -20 -6 22 -20
3 16 6 16 -20 -6 12 -4 6 12 -4
3 16 1.5 15.75 -16 -6 12 -4 6 16 -20
2 24 1.5 18.25 -20 1.5 15.75 -16
2 24 6 16 -20 1.5 18.25 -20
2 24 -1.5 17.25 -16 -1.5 19.75 -20
2 24 1.5 15.75 -16 -1.5 17.25 -16
2 24 -6 22 -20 -1.5 19.75 -20
5 24 6 16 -20 -6 12 -4 6 12 -4 1.5 18.25 -20
and as already said: the cutout should be parallel, as of now a stud collides
1 16 0 24 -30 1 0 0 0 1 0 0 0 1 stud.dat (very small collision)
try cutting it out from prims (via isecalc)
1 16 6.0811 22 -36.0811 -1.4142 3.5355 0 0 0 2 1.4142 3.5355 0 1-4cyli.dat
1 16 3.2527 21.4142 -33.2527 1.4142 3.5355 0 0 0 -2 -1.4142 3.5355 0 1-4cyli.dat
1 16 -6.0811 22 -23.9189 1.4142 3.5355 0 0 0 2 -1.4142 3.5355 0 1-4cyli.dat
1 16 -3.2527 21.4142 -26.7473 -1.4142 3.5355 0 0 0 -2 1.4142 3.5355 0 1-4cyli.dat
(that one is just a suggestion, that are R2 cylis rotated 45° around the stud)
3 16 1.5 15.75 -16 -1.5 17.25 -16 -6 12 -4
3 16 6 16 -20 1.5 18.25 -20 1.5 15.75 -16
4 16 -6 12 -4 -1.5 17.25 -16 -1.5 19.75 -20 -6 22 -20
3 16 6 16 -20 -6 12 -4 6 12 -4
3 16 1.5 15.75 -16 -6 12 -4 6 16 -20
2 24 1.5 18.25 -20 1.5 15.75 -16
2 24 6 16 -20 1.5 18.25 -20
2 24 -1.5 17.25 -16 -1.5 19.75 -20
2 24 1.5 15.75 -16 -1.5 17.25 -16
2 24 -6 22 -20 -1.5 19.75 -20
5 24 6 16 -20 -6 12 -4 6 12 -4 1.5 18.25 -20
and as already said: the cutout should be parallel, as of now a stud collides
1 16 0 24 -30 1 0 0 0 1 0 0 0 1 stud.dat (very small collision)
try cutting it out from prims (via isecalc)
1 16 6.0811 22 -36.0811 -1.4142 3.5355 0 0 0 2 1.4142 3.5355 0 1-4cyli.dat
1 16 3.2527 21.4142 -33.2527 1.4142 3.5355 0 0 0 -2 -1.4142 3.5355 0 1-4cyli.dat
1 16 -6.0811 22 -23.9189 1.4142 3.5355 0 0 0 2 -1.4142 3.5355 0 1-4cyli.dat
1 16 -3.2527 21.4142 -26.7473 -1.4142 3.5355 0 0 0 -2 1.4142 3.5355 0 1-4cyli.dat
(that one is just a suggestion, that are R2 cylis rotated 45° around the stud)
Evert-Jan Boer [ejboer]
submitted a new version of the part (all votes reset).
2026-08-05 18:15:24
Changed subfile, hope the small overlap with stud is fixed now, did not have time left today to check for alternate solution.
Added condlines to main file
Added condlines to main file
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2026-08-05 20:37:24
misses at least 2 condlines
Creative Commons Attribution License information
This part is copyright ©
Evert-Jan Boer
Licensed under
CC BY 4.0
