Unofficial File parts/6233.dat
Part Attributes:
File Header:

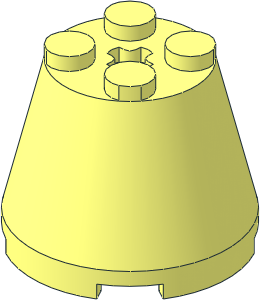

0 Cone 3 x 3 x 2
0 Name: 6233.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS cone, Cylinder, nozzle, Rocket, Round
0 !HISTORY 1999-07-05 [PTadmin] Official Update 1999-05
0 !HISTORY 2007-07-16 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant, fixed bad vertex sequence, corrected top edge (2004-10-16)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2024-12-31 [Blechtaler] reworked with subfiles and Hi-Res outer cone
Show contents
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl5ho10.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl5hol9.dat
1 16 0 0 0 1 0 0 0 4 0 0 0 1 axl5hol8.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 4 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug10-2x2.dat
1 16 10 44 10 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 10 44 -10 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 -10 44 10 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 -10 44 -10 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 0 0 0 20 0 0 0 1 0 0 0 20 48\4-4edge.dat
1 16 0 40 0 10 0 0 0 -40 0 0 0 10 48\4-4con2.dat
1 16 0 40 0 30 0 0 0 1 0 0 0 30 48\4-4edge.dat
1 16 0 40 0 30 0 0 0 4 0 0 0 30 48\4-4cyli.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6233s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\6233s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6233s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\6233s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\6233s01.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\6233s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\6233s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\6233s01.dat
Status:
Awaiting Admin Review (CCF)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
| WUIt | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
subfiled and hi-res
removed double axlehole
2024-12-31 19:59:42
or should the axlehole be made of prims along the whole length?
2025-01-01 15:30:15
I'm fine with the axlehole. What I don't like at all is the way the bottom renders, especially with prim substitution. It can be done much more cleaner (and efficiently) using more prims, here is my proposal:
https://brickshelf.com/gallery/Philo/misc2/6233.dat
https://brickshelf.com/gallery/Philo/misc2/6233s01.dat
https://brickshelf.com/gallery/Philo/misc2/6233.dat
https://brickshelf.com/gallery/Philo/misc2/6233s01.dat
2025-01-01 17:46:49
Hm, the bottom is (mostly) copied from 73111.dat
but yes, your variant is better...
i think I have to rework it using your idea.
did you change the main part too?
but yes, your variant is better...
i think I have to rework it using your idea.
did you change the main part too?
2025-01-01 18:05:30
I just scaled stud4 to keep number of surfaces low (stud4 can be scaled in Y direction)
2025-01-01 19:37:42
Yeah, using chrd+tndis has 2 benefits, it introduces less extra vertices, and it can be used with (almost) any inside/outside radii.
2025-01-01 22:31:01
thanks, used your ideas and fixed the subpart
2025-01-02 10:21:12
why not scale the stud4 and remove cyli extensions in subpart?
2025-01-02 10:52:09
because the cyli sections are all at different lenths and heights...
2025-01-02 13:39:36
Not necessarily. See how I did it 😉. (Again, just nitpicking !)
2025-08-04 13:37:16
2025-08-04 14:38:56
Creative Commons Attribution License information
This part is copyright © Steve Bliss
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Guy Vivan,
Rene Rechthaler,
