File Detail parts/6981k01.dat

Download Download zip file View patterns/composites/shortcuts

Unofficial File parts/6981k01.dat

File Header:

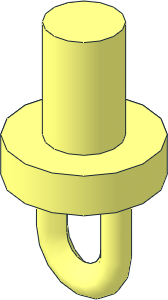

0 Chain  2L with Bar Attachments End Link
0 Name: 6981k01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part Flexible_Section
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory

0 !HISTORY 2025-01-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-01-02 [Philo] File preparation for LDraw Parts Tracker

Show contents

1 16 0 -12.5 0 -4 0 0 0 12.5 0 0 0 4 4-4cylc.dat
1 16 0 0 0 -8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 0 0 -8 0 0 0 1 0 0 0 8 4-4disc.dat
1 16 0 4.4 0 -8 0 0 0 -4.4 0 0 0 8 4-4cylc.dat

1 16 0 7.7 0 0 0 1 1 0 0 0 1 0 s\6981k02s01.dat
1 16 0 7.7 0 0 0 1 1 0 0 0 -1 0 s\6981k02s01.dat
2 24 2.3333 11.8 0 2.3333 4.4 0
2 24 -2.3333 4.4 0 -2.3333 11.8 0
1 16 -4.2 11.8 0 0 0 -1.68 0 -8.2 0 1.52 0 0 1-4cyli.dat
5 24 -4.2 3.6 1.52 -4.2 11.8 1.52 -3.5 3.6 1.23 -4.8429 11.8 1.4043
5 24 -3.5 11.8 1.23 -3.5 3.6 1.23 -4.2 11.8 1.52 -2.3333 3.6 0
4 16 -4.2 11.8 1.52 -4.2 3.6 1.52 -3.5 3.6 1.23 -3.5 11.8 1.23
4 16 -3.5 11.8 1.23 -3.5 3.6 1.23 -2.3333 3.6 0 -2.3333 11.8 0
1 16 -4.2 11.8 0 0 0 -1.68 0 -8.2 0 -1.52 0 0 1-4cyli.dat
5 24 -4.2 11.8 -1.52 -4.2 3.6 -1.52 -3.5 3.6 -1.23 -4.8429 11.8 -1.4043
5 24 -3.5 3.6 -1.23 -3.5 11.8 -1.23 -4.2 11.8 -1.52 -2.3333 3.6 0
4 16 -3.5 3.6 -1.23 -4.2 3.6 -1.52 -4.2 11.8 -1.52 -3.5 11.8 -1.23
4 16 -2.3333 3.6 0 -3.5 3.6 -1.23 -3.5 11.8 -1.23 -2.3333 11.8 0
1 16 -4.2 4.4 0 0 0 -1.68 0 -1 0 1.52 0 0 2-4edge.dat
1 16 4.2 4.4 0 0 0 1.68 0 -1 0 1.52 0 0 2-4edge.dat
2 24 3.5 4.4 1.23 4.2 4.4 1.52
2 24 3.5 4.4 1.23 2.3333 4.4 0
2 24 4.2 4.4 -1.52 3.5 4.4 -1.23
2 24 2.3333 4.4 0 3.5 4.4 -1.23
2 24 -4.2 4.4 1.52 -3.5 4.4 1.23
2 24 -2.3333 4.4 0 -3.5 4.4 1.23
2 24 -3.5 4.4 -1.23 -4.2 4.4 -1.52
2 24 -3.5 4.4 -1.23 -2.3333 4.4 0

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/6981k02s01.dat (Errors Found)

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2025-01-02 15:48:57

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-07-05 10:59:52

Peter Blomberg [WUIt]

posted a vote of Hold.

2025-09-22 19:43:09

I can't see the bulge on the real part nor in online pictures such as rebrickable. The 4-quarter bulge could just be simplified to a cylc.

Philippe Hurbain [Philo]

submitted a new version of the part.

2025-09-23 12:57:13

Not fully convinced. I can see something here that seems to match BIs mesh: https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEhyDXIiq36dAHQY_oYLcvHRA06wCOD6gQy1pMhUXthDMnjKmbDDND2rMpRQLDUfAC_co_3xd77Rus-n3S5MjfFSAiBbw_YhoaKwwgetgV4lc7P9cdB7m5bUQGsUEMcf2IM7LV7jVGdkBF1xxVhEGnKoEr97oUM7WQSME_Ywfpd6bJJQ8NAinFGiI5o5rVel/s1800/CTF_new_mould_chain_snot.jpg
OTOH as you say it's not so visible, so let's simplify things...

Gerald Lasser [GeraldLasser]

made the following comment.

2025-09-23 13:08:45

The part in my hands actually show these lines rather prominently, I liked the "before" mesh... Question is if it properly shows in Studio renders

Philippe Hurbain [Philo]

made the following comment.

2025-09-23 14:37:43

Clearly the bulge is useless. Here's a Studio render (and an editor view). The simplified version is on the right.
https://bricksafe.com/files/Philo/misc/6981.png
https://bricksafe.com/files/Philo/misc/6981_2.png
https://bricksafe.com/files/Philo/misc/Capture%20d%27%C3%A9cran%202025-09-23%20163028.png
...and why does this piece of crap shows gaps in the ring???? There are only regular primitives there!

Gerald Lasser [GeraldLasser]

made the following comment.

2025-09-23 15:28:13

When doing the Zeppelin, I had to play around a lot to get the shape properly visible in studio's render.

The part is fine the way it is now

Peter Blomberg [WUIt]

made the following comment.

2025-09-23 21:59:22

Apologies. I thought there was only one version. Since Gerald has a piece that shows the quarter bulge, please bring back the "before" version.
