Official File parts/6970.dat
Part Attributes:
File Header:

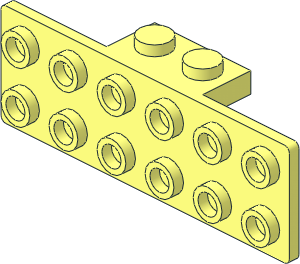

0 Bracket 1 x 2 - 2 x 6
0 Name: 6970.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-04 [GeraldLasser] based on 93274 by [MagFors]
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08
Show contents
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
2 24 -20 8 -10 -16 8 -10
2 24 16 8 -10 20 8 -10
1 16 10 4 -8 2 0 0 0 4 0 0 0 2 box4-1.dat
1 16 -10 4 -8 2 0 0 0 4 0 0 0 2 box4-1.dat
1 16 14 6 -10 0 0 2 -2 0 0 0 -1 0 rect2a.dat
1 16 -14 6 -10 -2 0 0 0 0 -2 0 -1 0 rect2a.dat
1 16 0 6 -10 0 0 8 -2 0 0 0 -1 0 rect1.dat
2 24 20 0 -10 20 8 -10
2 24 -20 0 -10 -20 8 -10
2 24 58 0 -10 20 0 -10
2 24 -58 0 -10 -20 0 -10
4 16 20 8 10 20 8 -10 16 8 -10 16 8 6
4 16 -20 8 10 -16 8 6 -16 8 -10 -20 8 -10
4 16 20 8 10 16 8 6 -16 8 6 -20 8 10
0 BFC INVERTNEXT
1 16 0 8 -2 16 0 0 0 -4 0 0 0 8 box4-4a.dat
1 16 0 8 0 20 0 0 0 -8 0 0 0 10 box4-4a.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 stug-1x2.dat
4 16 -60 2 -10 -58 0 -10 -20 0 -10 -20 8 -10
4 16 20 8 -10 20 0 -10 58 0 -10 60 2 -10
3 16 60 2 -10 60 38 -10 20 8 -10
4 16 -60 38 -10 -20 8 -10 20 8 -10 60 38 -10
3 16 -20 8 -10 -60 38 -10 -60 2 -10
4 16 60 38 -10 58 40 -10 -58 40 -10 -60 38 -10
1 16 -58 2 -10 -2 0 0 0 0 -2 0 -4 0 1-4cylo.dat
1 16 -58 2 -14 0 0 -2 -2 0 0 0 1 0 1-4chrd.dat
1 16 -58 2 -10 0 0 -2 -2 0 0 0 -1 0 1-4chrd.dat
1 16 -58 38 -10 0 0 -2 2 0 0 0 -4 0 1-4cylo.dat
1 16 -58 38 -14 -2 0 0 0 0 2 0 1 0 1-4chrd.dat
1 16 -58 38 -10 -2 0 0 0 0 2 0 -1 0 1-4chrd.dat
1 16 58 38 -14 0 0 2 2 0 0 0 4 0 1-4cylo.dat
1 16 58 38 -10 2 0 0 0 0 2 0 -1 0 1-4chrd.dat
1 16 58 38 -14 2 0 0 0 0 2 0 1 0 1-4chrd.dat
1 16 58 2 -14 2 0 0 0 0 -2 0 4 0 1-4cylo.dat
1 16 58 2 -10 0 0 2 -2 0 0 0 -1 0 1-4chrd.dat
1 16 58 2 -14 0 0 2 -2 0 0 0 1 0 1-4chrd.dat
1 16 60 20 -12 0 -1 0 -18 0 0 0 0 -2 rect2p.dat
1 16 0 40 -12 58 0 0 0 -1 0 0 0 2 rect2p.dat
1 16 -60 20 -12 0 1 0 -18 0 0 0 0 -2 rect2p.dat
4 16 58 40 -14 60 38 -14 -60 38 -14 -58 40 -14
4 16 60 2 -14 58 0 -14 -58 0 -14 -60 2 -14
4 16 20 0 -10 -20 0 -10 -58 0 -14 58 0 -14
3 16 58 0 -10 20 0 -10 58 0 -14
3 16 -58 0 -10 -58 0 -14 -20 0 -10
4 16 -60 2 -14 -60 38 -14 60 38 -14 60 2 -14
2 24 -58 0 -14 58 0 -14
1 16 0 10 -14 0 0 1 1 0 0 0 1 0 stug2-6x1.dat
1 16 0 30 -14 0 0 1 1 0 0 0 1 0 stug2-6x1.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-01-04 21:17:42
you forgot to stretch the bottom rect2p
2025-01-04 21:36:23
i think its that one
1 16 0 40 -12 -36 0 0 0 -1 0 0 0 2 rect2p.dat
-36 should be 56
(rect2p is symmetric, no need for the - here)
1 16 0 40 -12 -36 0 0 0 -1 0 0 0 2 rect2p.dat
-36 should be 56
(rect2p is symmetric, no need for the - here)
yes, this rect did not get streched...
2025-01-04 22:15:56
think there would be less stretched triangles/quads when flipping the front/rear quads (from sideways to top/down)
2025-07-26 13:25:01
bump
2025-07-26 14:19:57
2025-07-26 16:09:40
R4 or R2 corners? the existing panels are inconclusive there...
2025-07-26 17:00:43
BI mesh say something around 2.5 ldu...
2025-07-26 17:28:49
I checked BI meshes for a bunch of bracket, corner radius is consistently around 2.5 ldu. I'm fine with the R2 radius used by several existing brackets. Of course no need to fix now existing official brackets with different radius!
2025-07-26 19:11:29
thats why I changed 7674.dat back to R2 (digital model had R2.75), also had R4 first...
2025-08-03 20:35:24
bump
adapted corner radius
...now grab some new parts
...now grab some new parts
2025-08-03 20:51:01
2025-08-04 03:00:27
2025-08-04 21:51:38
2025-08-31 02:18:40
Release 2025-08
