Unofficial File parts/911a.dat
Part Attributes:
File Header:

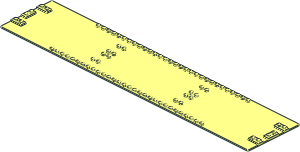

0 Baseplate 10 x 48 Train-Ferry Set 343
0 Name: 911a.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 911, ferry, peeron 911, Rebrickable 911, Samsonite
0 !KEYWORDS Set 343-1, Train
0 !CMDLINE -c7
0 !HISTORY 1998-03-23 [PTadmin] Official Update 1998-03
0 !HISTORY 2004-06-14 [nielsk] BFC'd
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-07-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2025-01-06 [Blechtaler] rework based on 911.dat by Arne Hackstein
Show contents
0 // base
1 16 0 0 0 476 0 0 0 4 0 0 0 100 box3u8p.dat
1 16 476 0 96 4 0 0 0 4 0 0 0 4 1-4cylo.dat
1 16 -476 0 96 -4 0 0 0 4 0 0 0 4 1-4cylo.dat
1 16 -476 0 -96 -4 0 0 0 4 0 0 0 -4 1-4cylo.dat
1 16 476 0 -96 4 0 0 0 4 0 0 0 -4 1-4cylo.dat
1 16 476 0 96 4 0 0 0 1 0 0 0 4 1-4chrd.dat
1 16 -476 0 96 -4 0 0 0 1 0 0 0 4 1-4chrd.dat
1 16 -476 0 -96 -4 0 0 0 1 0 0 0 -4 1-4chrd.dat
1 16 476 0 -96 4 0 0 0 1 0 0 0 -4 1-4chrd.dat
1 16 476 4 96 4 0 0 0 -1 0 0 0 4 1-4chrd.dat
1 16 -476 4 96 -4 0 0 0 -1 0 0 0 4 1-4chrd.dat
1 16 -476 4 -96 -4 0 0 0 -1 0 0 0 -4 1-4chrd.dat
1 16 476 4 -96 4 0 0 0 -1 0 0 0 -4 1-4chrd.dat
4 16 480 4 96 480 4 -96 476 4 -100 476 4 100
4 16 -480 4 -96 -480 4 96 -476 4 100 -476 4 -100
0 // base studs
1 16 200 0 90 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 0 0 90 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 -200 0 90 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 200 0 -90 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 0 0 -90 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 -200 0 -90 1 0 0 0 1 0 0 0 1 stug-1x10.dat
1 16 160 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -160 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 160 0 50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 160 0 -50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 -160 0 50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 -160 0 -50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
0 // raised studs
1 16 470 0 0 0 0 -10 0 -4 0 20 0 0 box5-1.dat
1 16 470 -4 0 1 0 0 0 1 0 0 0 1 stug-2x1.dat
1 16 -470 0 0 0 0 10 0 -4 0 20 0 0 box5-1.dat
1 16 -470 -4 0 1 0 0 0 1 0 0 0 1 stug-2x1.dat
1 16 460 0 50 0 0 -20 0 -4 0 10 0 0 box5-1.dat
1 16 460 -4 50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 -460 0 50 0 0 20 0 -4 0 10 0 0 box5-1.dat
1 16 -460 -4 50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 460 0 -50 0 0 -20 0 -4 0 10 0 0 box5-1.dat
1 16 460 -4 -50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 -460 0 -50 0 0 20 0 -4 0 10 0 0 box5-1.dat
1 16 -460 -4 -50 1 0 0 0 1 0 0 0 1 stug-1x2.dat
0 // sides
2 24 480 4 -96 480 4 96
2 24 -480 4 96 -480 4 -96
2 24 480 0 96 480 0 60
2 24 480 0 40 480 0 20
2 24 480 0 -20 480 0 -40
2 24 480 0 -60 480 0 -96
2 24 -480 0 96 -480 0 60
2 24 -480 0 40 -480 0 20
2 24 -480 0 -20 -480 0 -40
2 24 -480 0 -60 -480 0 -96
3 16 480 4 96 480 0 96 480 0 60
3 16 480 4 96 480 0 60 480 0 40
3 16 480 4 96 480 0 40 480 0 20
4 16 480 0 20 480 0 -20 480 4 -96 480 4 96
3 16 480 4 -96 480 0 -20 480 0 -40
3 16 480 4 -96 480 0 -40 480 0 -60
3 16 480 4 -96 480 0 -60 480 0 -96
3 16 -480 0 96 -480 4 96 -480 0 60
3 16 -480 0 60 -480 4 96 -480 0 40
3 16 -480 0 40 -480 4 96 -480 0 20
4 16 -480 0 20 -480 4 96 -480 4 -96 -480 0 -20
3 16 -480 0 -40 -480 0 -20 -480 4 -96
3 16 -480 0 -60 -480 0 -40 -480 4 -96
3 16 -480 4 -96 -480 0 -96 -480 0 -60
0 // top surface
4 16 480 0 60 480 0 96 476 0 100 440 0 60
4 16 480 0 20 480 0 40 440 0 40 460 0 20
4 16 460 0 20 440 0 40 440 0 -40 460 0 -20
4 16 480 0 -20 460 0 -20 440 0 -40 480 0 -40
4 16 480 0 -96 480 0 -60 440 0 -60 476 0 -100
4 16 -476 0 -100 476 0 -100 440 0 -60 -440 0 -60
4 16 -480 0 -60 -480 0 -96 -476 0 -100 -440 0 -60
4 16 -480 0 -20 -480 0 -40 -440 0 -40 -460 0 -20
4 16 -460 0 20 -460 0 -20 -440 0 -40 -440 0 40
4 16 -460 0 20 -440 0 40 -480 0 40 -480 0 20
4 16 -480 0 96 -480 0 60 -440 0 60 -476 0 100
4 16 476 0 100 -476 0 100 -440 0 60 440 0 60
4 16 440 0 60 -440 0 60 -440 0 40 440 0 40
4 16 440 0 -40 440 0 40 -440 0 40 -440 0 -40
4 16 -440 0 -40 -440 0 -60 440 0 -60 440 0 -40
Status:
Needs More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2025-01-06 21:30:18
Missing and misplaced edge lines.
fixed
