Official File parts/s/6920s02.dat
File Header:

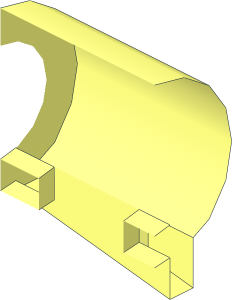

0 ~Vehicle Chassis 2 x 6 with Axle Protrusion Half
0 Name: s\6920s02.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Subpart UPDATE 2025-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-07-27 [OrionP] Official Update 2025-07
Show contents
1 16 0 10 0 0 -20 0 -10 0 0 0 0 10 3-8cylo.dat
1 16 -20 10 0 0 1 0 -6 0 0 0 0 6 7-16ndis.dat
1 16 -20 10 0 0 1 0 -10 0 0 0 0 10 1-8chrd.dat
1 16 -20 10 0 0 1 0 0 0 -10 10 0 0 1-8chrd.dat
1 16 -20 10 0 0 1 0 0 0 10 10 0 0 1-8chrd.dat
4 16 -20 17.071 7.071 -20 16 6 -20 10 6 -20 10 10
4 16 -20 10 10 -20 10 6 -20 4 6 -20 2.929 7.071
4 16 -20 4 6 -20 4 0 -20 0 0 -20 2.929 7.071
2 24 0 23.5 2 -20 20 2
2 24 0 18.18 5 -20 18.18 5
4 16 0 17.071 7.071 0 18.18 5 -20 18.18 5 -20 17.071 7.071
2 24 -5.8316 22.4795 5 -7.4742 22.192 3.9023
2 24 -14.1684 21.0205 5 -12.5258 21.308 3.9023
2 24 -12.5258 21.308 3.9023 -10 21.75 3.4
2 24 -7.4742 22.192 3.9023 -10 21.75 3.4
2 24 -5.8316 19 5 -7.4742 19 3.9023
2 24 -14.1684 19 5 -12.5258 19 3.9023
2 24 -12.5258 19 3.9023 -10 19 3.4
2 24 -7.4742 19 3.9023 -10 19 3.4
2 24 -5.8316 19 5 -5.8316 22.4795 5
2 24 -14.1684 19 5 -14.1684 21.0205 5
4 16 -10 19 3.4 -10 21.75 3.4 -12.5258 21.308 3.9023 -12.5258 19 3.9023
4 16 -12.5258 19 3.9023 -12.5258 21.308 3.9023 -14.1684 21.0205 5 -14.1684 19 5
4 16 -5.8316 19 5 -5.8316 22.4795 5 -7.4742 22.192 3.9023 -7.4742 19 3.9023
4 16 -7.4742 19 3.9023 -7.4742 22.192 3.9023 -10 21.75 3.4 -10 19 3.4
5 24 -10 19 3.4 -10 21.75 3.4 -7.4742 22.192 3.9023 -12.5258 21.308 3.9023
5 24 -12.5258 19 3.9023 -12.5258 21.308 3.9023 -10 21.75 3.4 -14.1684 21.0205 5
5 24 -7.4742 19 3.9023 -7.4742 22.192 3.9023 -5.8316 22.4795 5 -10 21.75 3.4
2 24 0 23.5 5 -5.8316 22.4795 5
2 24 -14.1684 21.0205 5 -20 20 5
3 16 -7.4742 19 3.9023 -10 19 3.4 -12.5258 19 3.9023
4 16 -5.8316 19 5 -7.4742 19 3.9023 -12.5258 19 3.9023 -14.1684 19 5
2 24 -14.1684 19 5 -5.8316 19 5
4 16 -20 18.18 5 -14.1684 19 5 -14.1684 21.0205 5 -20 20 5
4 16 -5.8316 19 5 -14.1684 19 5 -20 18.18 5 0 18.18 5
4 16 -5.8316 22.4795 5 -5.8316 19 5 0 18.18 5 0 23.5 5
2 24 0 18.18 5 0 23.5 5
2 24 0 18.18 5 0 17.071 7.071
2 24 -20 18.18 5 -20 17.071 7.071
2 24 -20 18.18 5 -20 20 5
2 24 -20 20 2 -20 20 5
2 24 0 23.5 2 0 23.5 5
4 16 0 23.5 2 -7.4742 22.192 3.9023 -5.8316 22.4795 5 0 23.5 5
4 16 -14.1684 21.0205 5 -12.5258 21.308 3.9023 -20 20 2 -20 20 5
3 16 0 23.5 2 -10 21.75 3.4 -7.4742 22.192 3.9023
3 16 -10 21.75 3.4 0 23.5 2 -20 20 2
3 16 -12.5258 21.308 3.9023 -10 21.75 3.4 -20 20 2
2 24 -20 19.08 2 -20 20 2
4 16 -20 20 2 -20 19.08 2 -20 18.18 5 -20 20 5
4 16 -20 16 6 -20 17.071 7.071 -20 18.18 5 -20 15.5432 2.2961
4 16 -20 18.18 5 -20 19.08 2 -20 15.6023 2 -20 15.5432 2.2961
2 24 -20 19.34 0 -20 19.08 2
2 24 -15 19.34 0 -15 19.08 2
2 24 0 19.34 0 0 19.08 2
2 24 -4 19.34 0 -4 19.08 2
4 16 0 19.08 2 0 19.34 0 -4 19.34 0 -4 19.08 2
4 16 -15 19.08 2 -15 19.34 0 -20 19.34 0 -20 19.08 2
2 24 -20 16 0 -20 15.6023 2
2 24 -15 16 0 -15 15.6023 2
2 24 -4 16 0 -4 15.6023 2
2 24 0 16 0 0 15.6023 2
2 24 0 15.6023 2 -4 15.6023 2
4 16 -4 16 0 0 16 0 0 15.6023 2 -4 15.6023 2
4 16 -15 16 0 -15 15.6023 2 -20 15.6023 2 -20 16 0
2 24 -4 15.6023 2 -4 19.08 2
2 24 -15 19.08 2 -15 15.6023 2
4 16 -4 19.08 2 -4 15.6023 2 -15 15.6023 2 -15 19.08 2
4 16 -20 19.08 2 -20 19.34 0 -20 16 0 -20 15.6023 2
4 16 -4 16 0 -4 15.6023 2 -4 19.08 2 -4 19.34 0
4 16 -15 15.6023 2 -15 16 0 -15 19.34 0 -15 19.08 2
2 24 0 19.08 2 -4 19.08 2
2 24 -15 19.08 2 -20 19.08 2
4 16 -4 19.08 2 -15 19.08 2 -20 20 2 0 23.5 2
2 24 0 19.08 2 0 23.5 2
3 16 0 19.08 2 -4 19.08 2 0 23.5 2
3 16 -15 19.08 2 -20 19.08 2 -20 20 2
5 24 -20 17.071 7.071 0 17.071 7.071 0 18.18 5 0 13.827 9.239
2 24 -20 15.6023 2 -15 15.6023 2
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
