Unofficial File parts/s/u8016s01.dat
File Header:

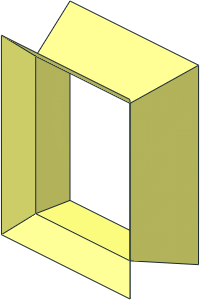

0 ~Mursten Window Pane
0 Name: s\u8016s01.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
0 !HISTORY 2025-01-04 [Plastikean] Revised shape, BFC CCW
Show contents
4 16 -5.5 -7.5 -2 -7.5 -9.5 4 7.5 -9.5 4 5.5 -7.5 -2
4 16 -7.5 9.5 4 -5.5 7.5 -2 5.5 7.5 -2 7.5 9.5 4
4 16 -5.5 7.5 -2 -7.5 9.5 4 -7.5 -9.5 4 -5.5 -7.5 -2
4 16 5.5 -7.5 -2 7.5 -9.5 4 7.5 9.5 4 5.5 7.5 -2
2 24 7.5 -9.5 4 -7.5 -9.5 4
2 24 -7.5 9.5 4 7.5 9.5 4
2 24 -7.5 -9.5 4 -7.5 9.5 4
2 24 7.5 9.5 4 7.5 -9.5 4
2 24 -7.5 -9.5 4 -5.5 -7.5 -2
2 24 7.5 -9.5 4 5.5 -7.5 -2
2 24 -7.5 9.5 4 -5.5 7.5 -2
2 24 7.5 9.5 4 5.5 7.5 -2
2 24 -5.5 -7.5 -2 5.5 -7.5 -2
2 24 -5.5 7.5 -2 5.5 7.5 -2
2 24 -5.5 7.5 -2 -5.5 -7.5 -2
2 24 5.5 7.5 -2 5.5 -7.5 -2
4 16 -7.5 -9.5 -4 -5.5 -7.5 -2 5.5 -7.5 -2 7.5 -9.5 -4
4 16 -5.5 7.5 -2 -7.5 9.5 -4 7.5 9.5 -4 5.5 7.5 -2
4 16 -7.5 9.5 -4 -5.5 7.5 -2 -5.5 -7.5 -2 -7.5 -9.5 -4
4 16 7.5 -9.5 -4 5.5 -7.5 -2 5.5 7.5 -2 7.5 9.5 -4
2 24 7.5 -9.5 -4 -7.5 -9.5 -4
2 24 -7.5 9.5 -4 7.5 9.5 -4
2 24 -7.5 -9.5 -4 -7.5 9.5 -4
2 24 7.5 9.5 -4 7.5 -9.5 -4
2 24 -7.5 -9.5 -4 -5.5 -7.5 -2
2 24 7.5 -9.5 -4 5.5 -7.5 -2
2 24 -7.5 9.5 -4 -5.5 7.5 -2
2 24 7.5 9.5 -4 5.5 7.5 -2
Status:
Needs More Votes (CF)
Current Votes:
| User | Vote |
|---|---|
| MagFors | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
Nice images in that photostream.
2025-01-09 01:47:19
Yes, I've been in vintage brick heaven researching all this.
Creative Commons Attribution License information
This part is copyright © J.C. Tchang
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
N. W. Perry,
https://flic.kr/p/nx7JBY
https://flic.kr/p/nqjPCf
https://flic.kr/p/nqk3go
This fix also adds rounded corners and BFC CCW compliance.
