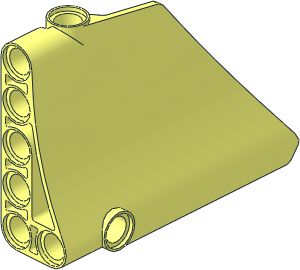

0 Technic Panel Fairing Smooth Concave #42
0 Name: 6609.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-01-09 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-01-10 [Philo] File preparation for LDraw Parts Tracker
