Unofficial File parts/6830.dat
Part Attributes:
File Header:

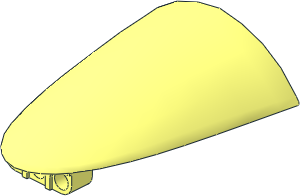

0 Technic Windscreen 9 x 7 x 2 Motorcycle with Beam 3L
0 Name: 6830.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 638482, Ducati Panigale, Set 42202
0 !HISTORY 2025-01-11 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-01-11 [Philo] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6830s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\6830s01.dat
1 16 0 0 0 1 0 0 0 0 1 0 -1 0 connhol3.dat
4 16 6 6 -8 -6 6 -8 -8 9 -8 8 9 -8
2 24 -8 9 -8 8 9 -8
2 24 -20 9 10 20 9 10
2 24 -26.8 -9 10 26.8 -9 10
2 24 26.8 -9 -7.1 -26.8 -9 -7.1
3 16 -26.8 -9 -7.1 0 -17.2 -7.1 26.8 -9 -7.1
4 16 -26.8 -9 -7.1 26.8 -9 -7.1 26.8 -9 10 -26.8 -9 10
4 16 20 9 10 20 9 -8 -20 9 -8 -20 9 10
5 24 0 -29 29.5 0 -33.4 46.1 12.6 -32.2 46.2 -12.6 -32.2 46.2
5 24 0 -45.3 131 0 -46.4 150 -17.7 -43.9 150 17.7 -43.9 150
5 24 0 -47.8 111.6 0 -45.5 90.6 16.1 -43.4 90.4 -16.1 -43.4 90.4
5 24 0 -50 150 0 -50 148.7 -19 -47.1 148.7 19 -47.1 148.7
5 24 0 -10 -25.6 0 -12.6 -19.2 -6.9 -12.5 -17.8 6.9 -12.5 -17.8
5 24 0 -13.3 -24.5 0 -11.1 -28.9 -9.6 -11.1 -26.9 9.6 -11.1 -26.9
5 24 0 -33.4 46.1 0 -37.7 65.9 12.6 -32.2 46.2 -12.6 -32.2 46.2
5 24 0 -45.5 90.6 0 -42.4 71.5 14.7 -40.5 71 -14.7 -40.5 71
5 24 0 -24 2.5 0 -18.1 -13.1 -8.5 -17.8 -12 8.5 -17.8 -12
5 24 0 -49.3 134.5 0 -47.8 111.6 17.3 -45.5 111.5 -17.3 -45.5 111.5
5 24 0 -20.3 1.4 0 -24.9 14.9 11.1 -23.7 14.5 -11.1 -23.7 14.5
5 24 0 -41.5 87.4 0 -43.9 109.9 17.1 -41.6 109.7 -17.1 -41.6 109.7
5 24 0 -12.6 -19.2 0 -16.1 -10 6.8 -15.5 -10 -6.8 -15.5 -10
5 24 0 -38.9 53.8 0 -35 38.1 11.8 -33.5 37.2 -11.8 -33.5 37.2
5 24 0 -50 148.7 0 -49.3 134.5 18.4 -46.8 134.1 -18.4 -46.8 134.1
5 24 0 -11.1 -28.9 0 -10 -29 9.6 -10 -27 -9.6 -10 -27
5 24 0 -17.2 -7.1 0 -20.3 1.4 9.1 -16.4 -7.1 -9.1 -16.4 -7.1
5 24 0 -42.4 71.5 0 -38.9 53.8 -13.2 -37.1 53.1 13.2 -37.1 53.1
5 24 0 -37.7 65.9 0 -41.5 87.4 -14.3 -36.1 66.1 14.3 -36.1 66.1
5 24 0 -24.9 14.9 0 -29 29.5 -12 -27.9 29.6 12 -27.9 29.6
5 24 0 -35 38.1 0 -29.2 18.2 10.1 -28.1 17.6 -10.1 -28.1 17.6
5 24 0 -43.9 109.9 0 -45.3 131 -18.3 -42.9 130.8 18.3 -42.9 130.8
5 24 0 -29.2 18.2 0 -24 2.5 8.9 -23.3 2.7 -8.9 -23.3 2.7
5 24 0 -18.1 -13.1 0 -13.3 -24.5 9.2 -13.2 -22.7 -9.2 -13.2 -22.7
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Certify |
Official parents and subparts
Part Events:
Philippe Hurbain [Philo]
initially submitted the part.
2025-01-11 15:10:24
Gerald Lasser [GeraldLasser]
posted a vote of Certify
2026-01-09 23:18:04
Gerald Lasser [GeraldLasser]
made the following comment.
2026-01-09 23:18:53
Should the lip on the outside get an edge or is the cond line better? I have never seend the part how "round" this section is...
Philippe Hurbain [Philo]
edited the part header.
2026-01-10 06:54:29
Header Edits
keywords:
to
Set 42202, Ducati Panigale
Added some KW.
Don't have the part either. BIs has has no edge, and it's impossible to tell from photos because of internal reflections of bottom edge...
