File Detail parts/s/75103s01.dat

Unofficial File parts/s/75103s01.dat

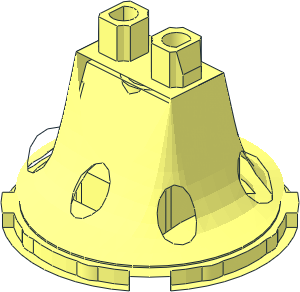

~Minifig Lower Body with 4 x 4 Round Robe without Patternable Surfaces

File Header:

0 ~Minifig Lower Body with  4 x  4 Round Robe without Patternable Surfaces
0 Name: s\75103s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // Bottom
4 16 -17 48 -17 -20 48 -20 -20 48 20 -17 48 17
4 16 -20 48 -20 -17 48 -17 17 48 -17 20 48 -20
4 16 20 48 -20 17 48 -17 17 48 17 20 48 20
4 16 20 48 20 17 48 17 -17 48 17 -20 48 20
1 16 0 48 0 20 0 0 0 1 0 0 0 20 recte4.dat
0 BFC INVERTNEXT
1 16 0 48 0 17 0 0 0 -18 0 0 0 17 box4o4a.dat
4 16 17 4 7 17 30 17 17 30 -17 17 4 -7
4 16 -17 4 7 -17 4 -7 -17 30 -17 -17 30 17
1 16 0 17 12 -17 0 0 0 -1 13 0 0 5 rect3.dat
1 16 0 17 -12 17 0 0 0 -1 13 0 0 -5 rect3.dat
1 16 0 4 0 17 0 0 0 -1 0 0 0 7 rect.dat
1 16 0 4 0 1 0 0 0 -11 0 0 0 1 stud4.dat

3 16 0 38.1063796 -20 -20 48 -20 20 48 -20
3 16 20 38.1063796 0 20 48 -20 20 48 20
3 16 0 38.1063796 20 20 48 20 -20 48 20
3 16 -20 38.1063796 0 -20 48 20 -20 48 -20

0 BFC INVERTNEXT
1 16 0 43.5 0 35 0 0 0 -.5 0 0 0 -35 48\4-4cylo.dat

1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\75103s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\75103s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\75103s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\75103s02.dat

0 // Top
1 16 10 0 0 1 0 0 0 1 0 0 0 1 hipstud.dat
1 16 -10 0 0 -1 0 0 0 1 0 0 0 1 hipstud.dat
1 16 0 0 0 18 0 0 0 1 0 0 0 10 rect.dat

0 // Joining Faces Robe/Skirt
3 16 9.3168 20.5 15.8986 0 24 17.703 -9.3168 20.5 15.8986
4 16 12.05505 15.78 14.212125 9.3168 20.5 15.8986 -9.3168 20.5 15.8986 -12.05505 15.78 14.212125
4 16 12.05505 15.78 14.212125 -12.05505 15.78 14.212125 -13.7772 11 12.8927 13.7772 11 12.8927
4 16 13.7772 11 12.8927 -13.7772 11 12.8927 -18 0 10 18 0 10

5 24 -12.05505 15.78 -14.212125 12.05505 15.78 -14.212125 -9.3168 20.5 -15.8986 13.7772 11 -12.8927
5 24 -13.7772 11 -12.8927 13.7772 11 -12.8927 -12.05505 15.78 -14.212125 18 0 -10
5 24 -9.3168 20.5 15.8986 9.3168 20.5 15.8986 0 24 17.703 -12.05505 15.78 14.212125
5 24 -12.05505 15.78 14.212125 12.05505 15.78 14.212125 9.3168 20.5 15.8986 -13.7772 11 12.8927
5 24 -13.7772 11 12.8927 13.7772 11 12.8927 -18 0 10 12.05505 15.78 14.212125
5 24 9.3168 20.5 -15.8986 -9.3168 20.5 -15.8986 0 24 -17.703 12.05505 15.78 -14.212125

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/75103s02.dat (Needs More Votes)
parts/s/75103s05.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-01-13 16:45:55

Gerald Lasser [GeraldLasser]

submitted a new version of the part.

2025-01-13 17:34:58

yes, that was too long and the ribs for the studs were also missing
