Unofficial File parts/2527.dat
Part Attributes:
File Header:

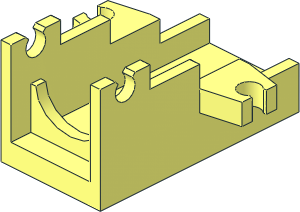

0 Minifig Cannon 2 x 4 Base
0 Name: 2527.dat
0 Author: Paul Easter [pneaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Accessory
0 !KEYWORDS artillery, base, cannon, cannonade, cannons, Castle, cavalry
0 !KEYWORDS Imperials, man-o-war, Ninja, Pirate, Pirates, wild west
0 !HISTORY 2001-11-23 [pneaster] corrected BFC use of primitive files.
0 !HISTORY 2001-11-30 [PTadmin] Official Update 2001-02
0 !HISTORY 2007-05-14 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2025-01-19 [OrionP] Fix comment errors, flipped BFC
Show contents
1 16 0 4 20 0 0 -1 0 -1 0 1 0 0 stud4.dat
1 16 0 4 0 0 0 -1 0 -1 0 1 0 0 stud4.dat
1 16 0 4 -20 0 0 -1 0 -1 0 1 0 0 stud4.dat
0 BFC INVERTNEXT
1 16 0 8 0 0 0 -16 0 -4 0 36 0 0 box5.dat
4 16 -16 8 36 -16 8 -36 -20 8 -40 -20 8 40
4 16 20 8 -40 16 8 -36 16 8 36 20 8 40
4 16 20 8 40 16 8 36 -16 8 36 -20 8 40
4 16 -16 8 -36 16 8 -36 20 8 -40 -20 8 -40
1 16 0 0 6 0 0 -16 0 1 0 34 0 0 rect.dat
1 16 0 0 -36 0 0 -16 0 1 0 4 0 0 rect.dat
4 16 16 0 -32 16 -5 -32 -16 -5 -32 -16 0 -32
4 16 -16 -5 -28 16 -5 -28 16 0 -28 -16 0 -28
1 16 0 -16 -32 -14 0 0 0 0 11 0 1 0 2-4ndis.dat
1 16 0 -16 -28 14 0 0 0 0 11 0 -1 0 2-4ndis.dat
1 16 0 -16 -32 -14 0 0 0 0 11 0 1 0 2-4edge.dat
1 16 0 -16 -28 -14 0 0 0 0 11 0 1 0 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 -16 -32 14 0 0 0 0 11 0 4 0 2-4cyli.dat
2 24 -16 0 -32 -16 -16 -32
4 16 -14 -5 -32 -14 -16 -32 -16 -16 -32 -16 -5 -32
2 24 -16 0 -28 -16 -16 -28
4 16 -16 -16 -28 -14 -16 -28 -14 -5 -28 -16 -5 -28
2 24 16 0 -32 16 -16 -32
4 16 16 -16 -32 14 -16 -32 14 -5 -32 16 -5 -32
2 24 16 0 -28 16 -16 -28
4 16 14 -5 -28 14 -16 -28 16 -16 -28 16 -5 -28
1 16 -15 -16 -30 0 0 -1 0 1 0 2 0 0 rect.dat
1 16 15 -16 -30 0 0 -1 0 1 0 2 0 0 rect.dat
0
4 16 -16 -8 40 -16 -8 20 -16 0 20 -16 0 40
4 16 16 0 20 16 -8 20 16 -8 40 16 0 40
4 16 -16 -16 20 -16 -16 0 -16 0 0 -16 0 20
4 16 16 0 0 16 -16 0 16 -16 20 16 0 20
4 16 -16 -24 0 -16 -24 -20 -16 0 -20 -16 0 0
4 16 16 0 -20 16 -24 -20 16 -24 0 16 0 0
4 16 -16 -24 -20 -16 -24 -28 -16 0 -28 -16 0 -20
4 16 16 0 -28 16 -24 -28 16 -24 -20 16 0 -20
4 16 -16 -24 -32 -16 -24 -40 -16 0 -40 -16 0 -32
4 16 16 0 -40 16 -24 -40 16 -24 -32 16 0 -32
4 16 -16 -24 -28 -16 -24 -32 -16 -16 -32 -16 -16 -28
4 16 16 -16 -32 16 -24 -32 16 -24 -28 16 -16 -28
0
2 24 -20 8 40 20 8 40
4 16 20 0 40 20 8 40 -20 8 40 -20 0 40
2 24 -20 8 -40 20 8 -40
4 16 -20 8 -40 20 8 -40 20 0 -40 -20 0 -40
2 24 -20 8 40 -20 -8 40
2 24 -16 -8 40 -16 0 40
4 16 -20 -8 40 -16 -8 40 -16 0 40 -20 0 40
2 24 16 0 40 16 -8 40
2 24 20 -8 40 20 8 40
4 16 16 -8 40 20 -8 40 20 0 40 16 0 40
2 24 -20 8 -40 -20 -32 -40
2 24 -16 -32 -40 -16 0 -40
4 16 -16 0 -40 -16 -32 -40 -20 -32 -40 -20 0 -40
2 24 16 0 -40 16 -32 -40
2 24 20 -32 -40 20 8 -40
4 16 20 0 -40 20 -32 -40 16 -32 -40 16 0 -40
1 16 -18 -8 30 0 0 -2 0 1 0 10 0 0 rect.dat
1 16 18 -8 30 0 0 -2 0 1 0 10 0 0 rect.dat
1 16 -18 -12 20 0 0 -2 4 0 0 0 -1 0 rect.dat
1 16 18 -12 20 0 0 -2 4 0 0 0 -1 0 rect.dat
2 24 -16 -16 0 -16 -16 20
4 16 -20 -16 0 -16 -16 0 -16 -16 20 -20 -16 20
2 24 16 -16 20 16 -16 0
4 16 16 -16 0 20 -16 0 20 -16 20 16 -16 20
1 16 -18 -20 0 0 0 -2 4 0 0 0 -1 0 rect.dat
1 16 18 -20 0 0 0 -2 4 0 0 0 -1 0 rect.dat
1 16 -18 -24 -10 0 0 -2 0 1 0 10 0 0 rect.dat
1 16 18 -24 -10 0 0 -2 0 1 0 10 0 0 rect.dat
1 16 -18 -28 -20 0 0 -2 4 0 0 0 -1 0 rect.dat
1 16 18 -28 -20 0 0 -2 4 0 0 0 -1 0 rect.dat
0
0
2 24 -20 8 40 -20 8 -40
4 16 -20 8 -40 -20 -8 -40 -20 -8 40 -20 8 40
2 24 20 8 40 20 8 -40
4 16 20 -8 40 20 -8 -40 20 8 -40 20 8 40
4 16 -20 -8 -40 -20 -24 -40 -20 -24 0 -20 -8 0
4 16 20 -24 0 20 -24 -40 20 -8 -40 20 -8 0
0
1 16 -16 -28 -30 0 -1 0 -2.828 0 2.828 2.828 0 2.828 3-4edge.dat
1 16 16 -28 -30 0 -1 0 -2.828 0 2.828 2.828 0 2.828 3-4edge.dat
1 16 -20 -28 -30 0 -1 0 -2.828 0 2.828 2.828 0 2.828 3-4edge.dat
1 16 20 -28 -30 0 -1 0 -2.828 0 2.828 2.828 0 2.828 3-4edge.dat
0 BFC INVERTNEXT
1 16 -16 -28 -30 0 -4 0 -2.828 0 2.828 2.828 0 2.828 3-4cyli.dat
0 BFC INVERTNEXT
1 16 20 -28 -30 0 -4 0 -2.828 0 2.828 2.828 0 2.828 3-4cyli.dat
1 16 -16 -28 -30 0 -1 0 0 0 4 -4 0 0 2-4ndis.dat
1 16 16 -28 -30 0 1 0 0 0 4 4 0 0 2-4ndis.dat
1 16 -20 -28 -30 0 1 0 0 0 4 4 0 0 2-4ndis.dat
1 16 20 -28 -30 0 -1 0 0 0 4 -4 0 0 2-4ndis.dat
1 16 -16 -28 -30 0 -1 0 0 0 -4 4 0 0 1-8ndis.dat
1 16 16 -28 -30 0 1 0 0 0 -4 4 0 0 1-8ndis.dat
1 16 -20 -28 -30 0 1 0 0 0 -4 4 0 0 1-8ndis.dat
1 16 20 -28 -30 0 -1 0 0 0 -4 4 0 0 1-8ndis.dat
1 16 -16 -28 -30 0 -1 0 0 0 -4 -4 0 0 1-8ndis.dat
1 16 16 -28 -30 0 1 0 0 0 -4 -4 0 0 1-8ndis.dat
1 16 -20 -28 -30 0 1 0 0 0 -4 -4 0 0 1-8ndis.dat
1 16 20 -28 -30 0 -1 0 0 0 -4 -4 0 0 1-8ndis.dat
4 16 -16 -32 -20 -16 -32 -26 -16 -24 -26 -16 -24 -20
4 16 16 -24 -26 16 -32 -26 16 -32 -20 16 -24 -20
4 16 -20 -24 -26 -20 -32 -26 -20 -32 -20 -20 -24 -20
4 16 20 -32 -20 20 -32 -26 20 -24 -26 20 -24 -20
4 16 -16 -32 -34 -16 -32 -40 -16 -24 -40 -16 -24 -34
4 16 16 -24 -40 16 -32 -40 16 -32 -34 16 -24 -34
4 16 -20 -24 -40 -20 -32 -40 -20 -32 -34 -20 -24 -34
4 16 20 -32 -34 20 -32 -40 20 -24 -40 20 -24 -34
1 16 -18 -32 -23 0 0 -2 0 1 0 3 0 0 rect.dat
1 16 18 -32 -23 0 0 -2 0 1 0 3 0 0 rect.dat
1 16 -18 -32 -37 0 0 -2 0 1 0 3 0 0 rect.dat
1 16 18 -32 -37 0 0 -2 0 1 0 3 0 0 rect.dat
1 16 -18 -31.414 -26.586 0 0 -2 -0.586 1 0 0.586 0 0 rect.dat
1 16 18 -31.414 -26.586 0 0 -2 -0.586 1 0 0.586 0 0 rect.dat
1 16 -18 -31.414 -33.414 0 0 -2 0.586 1 0 0.586 0 0 rect.dat
1 16 18 -31.414 -33.414 0 0 -2 0.586 1 0 0.586 0 0 rect.dat
4 16 -20 -8 4 -20 -12 4 -20 -12 16 -20 -8 16
4 16 20 -12 16 20 -12 4 20 -8 4 20 -8 16
2 24 -20 -8 0 -20 -8 4
2 24 20 -8 0 20 -8 4
2 24 -20 -8 16 -20 -8 20
2 24 20 -8 16 20 -8 20
0
1 16 -27 -12 18.5 -7 0 0 0 0 -4 -1.5 -1 0 rect.dat
1 16 -27 -12 1.5 -7 0 0 0 0 4 1.5 1 0 rect.dat
1 16 -34 -12 5.086 0 1 0 0 0 4 2.086 0 0 rect.dat
1 16 -34 -12 14.914 0 1 0 0 0 4 2.086 0 0 rect.dat
3 16 -34 -16 12.828 -32.828 -16 12.828 -34 -16 14
3 16 -32.828 -8 12.828 -34 -8 12.828 -34 -8 14
3 16 -32.828 -16 7.172 -34 -16 7.172 -34 -16 6
3 16 -34 -8 7.172 -32.828 -8 7.172 -34 -8 6
1 16 -33.428 -12 12.828 -0.572 0 0 0 0 4 0 1 0 rect.dat
1 16 -33.428 -12 7.172 -0.572 0 0 0 0 -4 0 -1 0 rect.dat
1 16 -30 -16 10 -2.828 0 2.828 0 1 0 -2.828 0 -2.828 3-4edge.dat
1 16 -30 -8 10 -2.828 0 2.828 0 1 0 -2.828 0 -2.828 3-4edge.dat
0 BFC INVERTNEXT
1 16 -30 -8 10 -2.828 0 2.828 0 -8 0 -2.828 0 -2.828 3-4cyli.dat
1 16 -30 -16 10 0 0 4 0 1 0 -4 0 0 2-4ndis.dat
1 16 -30 -8 10 0 0 4 0 -1 0 4 0 0 2-4ndis.dat
1 16 -30 -16 10 0 0 -4 0 1 0 -4 0 0 1-8ndis.dat
1 16 -30 -8 10 0 0 -4 0 -1 0 -4 0 0 1-8ndis.dat
1 16 -30 -16 10 0 0 -4 0 1 0 4 0 0 1-8ndis.dat
1 16 -30 -8 10 0 0 -4 0 -1 0 4 0 0 1-8ndis.dat
0 BFC INVERTNEXT
1 16 -22 -8 10 0 0 -2 0 -4 0 6 0 0 box4-1.dat
4 16 -26 -16 6 -34 -16 6 -34 -16 3 -20 -16 0
4 16 -34 -16 17 -34 -16 14 -26 -16 14 -20 -16 20
4 16 -20 -16 20 -26 -16 14 -26 -16 6 -20 -16 0
4 16 -34 -8 3 -34 -8 6 -26 -8 6 -20 -8 0
4 16 -26 -8 14 -34 -8 14 -34 -8 17 -20 -8 20
3 16 -24 -8 4 -20 -8 4 -20 -8 0
3 16 -20 -8 16 -24 -8 16 -20 -8 20
4 16 -26 -8 6 -26 -8 14 -24 -8 16 -24 -8 4
0
1 16 27 -12 18.5 7 0 0 0 0 4 -1.5 -1 0 rect.dat
1 16 27 -12 1.5 7 0 0 0 0 -4 1.5 1 0 rect.dat
1 16 34 -12 5.086 0 -1 0 0 0 -4 2.086 0 0 rect.dat
1 16 34 -12 14.914 0 -1 0 0 0 -4 2.086 0 0 rect.dat
3 16 32.828 -16 12.828 34 -16 12.828 34 -16 14
3 16 34 -8 12.828 32.828 -8 12.828 34 -8 14
3 16 34 -16 7.172 32.828 -16 7.172 34 -16 6
3 16 32.828 -8 7.172 34 -8 7.172 34 -8 6
1 16 33.428 -12 12.828 0.572 0 0 0 0 -4 0 1 0 rect.dat
1 16 33.428 -12 7.172 0.572 0 0 0 0 4 0 -1 0 rect.dat
1 16 30 -16 10 2.828 0 -2.828 0 1 0 -2.828 0 -2.828 3-4edge.dat
1 16 30 -8 10 2.828 0 -2.828 0 1 0 -2.828 0 -2.828 3-4edge.dat
0 BFC INVERTNEXT
1 16 30 -16 10 2.828 0 -2.828 0 8 0 -2.828 0 -2.828 3-4cyli.dat
1 16 30 -16 10 0 0 -4 0 1 0 4 0 0 2-4ndis.dat
1 16 30 -8 10 0 0 -4 0 -1 0 -4 0 0 2-4ndis.dat
1 16 30 -16 10 0 0 4 0 1 0 -4 0 0 1-8ndis.dat
1 16 30 -8 10 0 0 4 0 -1 0 -4 0 0 1-8ndis.dat
1 16 30 -16 10 0 0 4 0 1 0 4 0 0 1-8ndis.dat
1 16 30 -8 10 0 0 4 0 -1 0 4 0 0 1-8ndis.dat
0 BFC INVERTNEXT
1 16 22 -8 10 0 0 2 0 -4 0 6 0 0 box4-1.dat
4 16 34 -16 3 34 -16 6 26 -16 6 20 -16 0
4 16 26 -16 14 34 -16 14 34 -16 17 20 -16 20
4 16 26 -16 6 26 -16 14 20 -16 20 20 -16 0
4 16 26 -8 6 34 -8 6 34 -8 3 20 -8 0
4 16 34 -8 17 34 -8 14 26 -8 14 20 -8 20
3 16 20 -8 4 24 -8 4 20 -8 0
3 16 24 -8 16 20 -8 16 20 -8 20
4 16 24 -8 16 26 -8 14 26 -8 6 24 -8 4
0
0 // end of file
Status:
Needs More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
2025-04-22 07:35:46
2025-04-22 08:15:59
To be honest the clips on the sides look a bit strange too. Has there ever been a mold change to this part?
2025-04-22 09:19:31
The clips look strange because the original author overextended the holders to the next 1/16th on regular resolution cyl. No mold changes that I know of. Would be nice to find reusable subfile(s) from some other part(s).
2025-04-22 09:25:19
The 1993 dragon wing clips (on the torso) come to mind, but I can't compare at the moment. Other than that I don't remember anything similar. Also those things are quite prone to break :(
On second thought this came out the saame year as the 1x1 tile with clip, so maybe that is a match (at least for the side holders).
On second thought this came out the saame year as the 1x1 tile with clip, so maybe that is a match (at least for the side holders).
Creative Commons Attribution License information
This part is copyright © Paul Easter
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
Cyli+edges could be changed into cylos.
Many rects have overlapping edge lines. Adjacent rects could be changed into box prims.
All complementary cond lines at the end of cylindrical prims are missing.
For a new part, this would be enough to Hold. For an old part? Leaving as comment.
