Unofficial File parts/3815bpx5.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

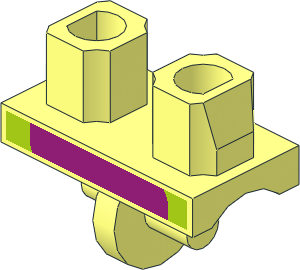

0 Minifig Hips with Magenta Flowers on Lime Shorts Pattern
0 Name: 3815bpx5.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig
0 !KEYWORDS Bricklink 970c90pb02, Patrick Star, set 3816, Set 3818, Set 3827
0 !KEYWORDS Set 3830, Set 3832, Set 4982, Set Set 3833, SpongeBob SquarePantsShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3815bs01.dat
1 16 -2 12 0 0 4 0 8.08395 0 -3.34848 -3.34848 0 -8.08395 5-16cyli.dat
3 16 -17 .75 -10 -12.53 .75 -10 -18 0 -10
3 16 17 5.25 -10 13.43 5.25 -10 18 6 -10
3 16 -17 5.25 -10 -18 6 -10 -12.07 5.25 -10
4 16 18 6 -10 13.43 5.25 -10 -12.07 5.25 -10 -18 6 -10
4 16 -18 6 -10 -17 5.25 -10 -17 .75 -10 -18 0 -10
4 16 18 0 -10 17 .75 -10 17 5.25 -10 18 6 -10
4 27 -17 5.25 -10 -12.55 3.47 -10 -12.53 .75 -10 -17 .75 -10
3 27 12.53 .75 -10 12.85 1.23 -10 17 .75 -10
3 27 12.85 1.23 -10 13.06 1.61 -10 17 .75 -10
3 27 13.06 1.61 -10 13.24 2.04 -10 17 .75 -10
4 27 13.24 2.04 -10 13.39 2.84 -10 17 5.25 -10 17 .75 -10
3 27 17 5.25 -10 13.39 2.84 -10 13.43 5.25 -10
3 27 -12.55 3.47 -10 -17 5.25 -10 -12.47 4.26 -10
3 27 -12.47 4.26 -10 -17 5.25 -10 -12.36 4.74 -10
3 27 -12.36 4.74 -10 -17 5.25 -10 -12.07 5.25 -10
4 26 12.53 .75 -10 -12.53 .75 -10 -12.55 3.47 -10 12.85 1.23 -10
4 26 13.06 1.61 -10 12.85 1.23 -10 -12.55 3.47 -10 -12.47 4.26 -10
4 26 13.24 2.04 -10 13.06 1.61 -10 -12.47 4.26 -10 -12.36 4.74 -10
4 26 13.39 2.84 -10 13.24 2.04 -10 -12.36 4.74 -10 -12.07 5.25 -10
3 26 13.43 5.25 -10 13.39 2.84 -10 -12.07 5.25 -10
4 16 -12.53 .75 -10 12.53 .75 -10 18 0 -10 -18 0 -10
3 16 17 .75 -10 18 0 -10 12.53 .75 -10Status
Errors Found (HN)
Current Votes:
Chris Böhnke [KnightOfTarenta]
This part has the following warnings
- Category: Minifig is retired, use use suitable active Minifig category
Part Dependencies
Official parents and subparts
Part Events
Jeff Jones [notmaster]
initially submitted the part.
2025-01-23 12:42:27
the legs will hopefully be uploaded once i figure out how to stamp it
Philippe Hurbain [Philo]
posted a vote of Hold
2025-01-23 13:33:02
- the patterned band should be higher
- Line separation between lime ends and middle should be straight vertical
- I see no flowers here?! description should be updated.
- do we have evidence that 2 different versions are available??? I can see only one.
- IMHO, not worth subparting (even less if there is only one version!)
- Line separation between lime ends and middle should be straight vertical
- I see no flowers here?! description should be updated.
- do we have evidence that 2 different versions are available??? I can see only one.
- IMHO, not worth subparting (even less if there is only one version!)
Jeff Jones [notmaster]
made the following comment.
2025-01-23 13:37:44
there are flowers on the full assembly the purple spots on the hips are part of it
before i inline the subparts should it be bright reddish lilac flowers or magenta flowers?
before i inline the subparts should it be bright reddish lilac flowers or magenta flowers?
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-01-23 13:42:38
Given it's release time I'd say there are 2 distinct versions.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-01-23 13:45:35
4293489 is the older (br. redd. lilac) one (before the great color change),
4644875 the newer Magenta one.
4644875 the newer Magenta one.
Philippe Hurbain [Philo]
made the following comment.
2025-01-23 13:48:29
Still don't understand... I can find only one leg version, with purple flowers.
Philippe Hurbain [Philo]
made the following comment.
2025-01-23 13:51:53
Ah, the great color change. Maybe. Any ref on a trusted inventory site showing two different versions?
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-01-23 13:58:46
Not an inventory, but some insight into the colour itself (mentioning the legs):
https://www.flickr.com/photos/126975831@N07/15129029306/in/dateposted/
Not sure if you consider the Lego.com sourced inventories from Brickset reliable:
https://brickset.com/inventories/3827-1
https://brickset.com/sets/3818-1/Bikini-Bottom-Undersea-Party
They list the legs with a different Element ID (though still with the same Print No. 108). According the FlickR group, only the post 2011 sets seems to contain the Magenta one.
https://www.flickr.com/photos/126975831@N07/15129029306/in/dateposted/
Not sure if you consider the Lego.com sourced inventories from Brickset reliable:
https://brickset.com/inventories/3827-1
https://brickset.com/sets/3818-1/Bikini-Bottom-Undersea-Party
They list the legs with a different Element ID (though still with the same Print No. 108). According the FlickR group, only the post 2011 sets seems to contain the Magenta one.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-01-23 14:00:11
Forgot to mention that the print No. does not seem to mean much in this regard, as certain Satr Wars prints were also listed under the same Print No. despite clearly having different Old Grey/Bley versions.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-01-23 14:01:08
Jeff Jones [notmaster]
made the following comment.
2025-01-23 14:09:03
how many ldu should the print be?
Philippe Hurbain [Philo]
made the following comment.
2025-01-23 16:06:01
OK, let's say that there are 2 versions...
"how many ldu should the print be?"
Something like 4.5ldu tall, 34ldu wide
"how many ldu should the print be?"
Something like 4.5ldu tall, 34ldu wide
Jeff Jones [notmaster]
submitted a new version of the part (all votes reset).
2025-05-25 21:07:05
inlined the 2 subfiles due to how redudant it is also added the finally long awaited leg dats.
full assembly coming soon.
full assembly coming soon.
Chris Böhnke [KnightOfTarenta]
edited the part header.
2025-08-09 04:27:42
Header Edits
description:
Minifig Hips with Magenta on Lime Shorts Pattern
to
Minifig Hips with Magenta Flowers on Lime Shorts Pattern
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2025-08-09 04:29:57
Please align this to 3815bpx6.dat.
Either use sub-files on both or on none.
Either use sub-files on both or on none.
