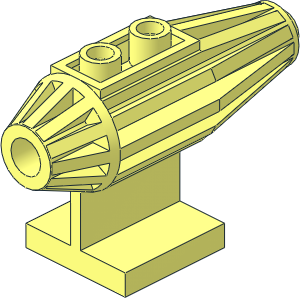

0 Plane Engine with 2 Top Studs and 2 x 2 Tile
0 Name: 30358.dat
0 Author: Donald Sutter [technog]
0 !LDRAW_ORG Part UPDATE 2024-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-06-07 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-06-04 [Sirio] Subparted and updated the use of primitives: removed ringr.dat or ringrr.dat, fixed flat primitives scaled in wrong direction
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30358s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30358s01.dat
0 // Primitives
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 -56 10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 -56 -10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 -56 10 1 0 0 0 6.6 0 0 0 1 stud2s2e.dat
1 16 0 -56 -10 1 0 0 0 6.6 0 0 0 1 stud2s2e.dat
0 BFC INVERTNEXT
1 16 0 8 0 16 0 0 0 -4 0 0 0 16 box5.dat
1 16 0 8 0 20 0 0 0 1 0 0 0 20 recte4.dat
1 16 0 -20 0 0 0 2 0 20 0 20 0 0 box4o8a.dat
1 16 0 -38 60 4 0 0 0 0 4 0 -1 0 4-4disc.dat
0 BFC INVERTNEXT
1 16 0 -38 56 6 0 0 0 0 6 0 -96 0 4-4cylc.dat
1 16 0 -38 60 0 0 -1 1 0 0 0 -1 0 stud2.dat
1 16 0 -49.4 -10 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
1 16 0 -49.4 10 3.5 0 0 0 1 0 0 0 3.5 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -56 0 7 0 0 0 1.87573 0 0 0 17 box4o4a.dat
1 16 0 -49.4 0 4.2426 0 0 0 1 0 0 0 -17 rect.dat
1 16 0 -55.38319 -21.5 0 0 2 -.61681 1 0 1.5 0 0 rect1.dat
1 16 0 -20.61681 -21.5 0 0 2 .61681 -1 0 1.5 0 0 rect1.dat
0 // Faces
4 16 20 8 -20 2 0 -20 -2 0 -20 -20 8 -20
4 16 -20 8 20 -2 0 20 2 0 20 20 8 20
4 16 -16 8 -16 16 8 -16 20 8 -20 -20 8 -20
4 16 16 8 16 -16 8 16 -20 8 20 20 8 20
0 // Edges
2 24 -2 0 -20 -2 0 20
2 24 2 0 -20 2 0 20
0 // Faces in the middle
4 16 -2 -28 58 2 -28 58 2 -20 20 -2 -20 20
4 16 -7 -56 -17 -2 -56 -20 2 -56 -20 7 -56 -17
4 16 -4.2426 -49.4 -17 -7 -54.12427 -17 7 -54.12427 -17 4.2426 -49.4 -17
4 16 4.2426 -49.4 17 7 -54.12427 17 -7 -54.12427 17 -4.2426 -49.4 17
4 16 7 -56 17 2 -56 20 -2 -56 20 -7 -56 17
4 16 -2 -48 58 -2 -56 20 2 -56 20 2 -48 58
3 16 2 -48 58 0 -48 60 -2 -48 58
3 16 -2 -28 58 0 -28 60 2 -28 58
4 16 2 -54.76638 -23 -2 -54.76638 -23 -2 -48 -39.5 2 -48 -39.5
3 16 2 -48 -39.5 -2 -48 -39.5 0 -48 -40
4 16 2 -21.23362 -23 2 -28 -39.5 -2 -28 -39.5 -2 -21.23362 -23
3 16 -2 -28 -39.5 2 -28 -39.5 0 -28 -40
0 // Edges
2 24 2 -20 20 -2 -20 20
2 24 -7 -56 -17 7 -56 -17
2 24 -7 -56 17 7 -56 17
2 24 -2 -56 20 2 -56 20
2 24 -2 -28 58 2 -28 58
2 24 -2 -48 58 2 -48 58
2 24 -2 -48 -39.5 2 -48 -39.5
2 24 -2 -28 -39.5 2 -28 -39.5
0 // Conditional lines
The distance of the intersection between the inclined plane and the rear edge is 1 LDU as in the official part.
I don't think there are any overlapping lines.
The ends of the sloping surfaces are squared, not inward-facing and rounded.
Existing certification-votes were deleted.
I like to question the description. Is this really a Tile? There's something on the top surface, including 2 studs.
category:
Plane
to
Plane
description:
Tile 2 x 2 with Jet Engine
to
Plane Engine with 2 Top Studs and 2 x 2 Tile
