Unofficial File parts/s/6253618hs05.dat
File Header:

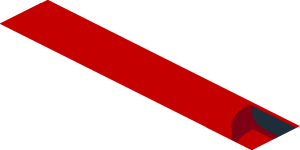

0 ~Sticker 1.8 x 1.9 with Black Air Vent Large on Red Background Right - Fifth Face
0 Name: s\6253618hs05.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Faces
0 // Black faces
4 0 18 -.25 6.3522 11.8448 -.25 6.3522 12.3913 -.25 5.6341 13.0499 -.25 5.017
4 0 18 -.25 6.3522 13.0499 -.25 5.017 13.8019 -.25 4.5183 14.6266 -.25 4.1517
4 0 18 -.25 6.3522 14.6266 -.25 4.1517 15.5007 -.25 3.9276 16.4 -.25 3.8522
3 0 18 -.25 6.3522 16.4 -.25 3.8522 18 -.25 3.8522
0 // Dark red faces
4 320 12.3913 -.25 5.6341 11.8448 -.25 6.3522 11.3 -.25 6.3522 11.3554 -.25 5.5252
3 320 12.3913 -.25 5.6341 11.3554 -.25 5.5252 11.5206 -.25 4.713
4 320 12.3913 -.25 5.6341 11.5206 -.25 4.713 11.7927 -.25 3.93 13.0499 -.25 5.017
4 320 15.1 -.25 3.0522 18 -.25 3.0522 18 -.25 3.8522 16.4 -.25 3.8522
3 320 15.1 -.25 3.0522 16.4 -.25 3.8522 15.5007 -.25 3.9276
3 320 15.1 -.25 3.0522 15.5007 -.25 3.9276 14.6266 -.25 4.1517
3 320 15.1 -.25 3.0522 14.6266 -.25 4.1517 13.8019 -.25 4.5183
4 320 15.1 -.25 3.0522 13.8019 -.25 4.5183 13.0499 -.25 5.017 11.7927 -.25 3.93
3 320 15.1 -.25 3.0522 11.7927 -.25 3.93 12.1668 -.25 3.1904
4 320 15.1 -.25 3.0522 12.1668 -.25 3.1904 12.6362 -.25 2.5073 15.1183 -.25 2.5533
4 320 13.1925 -.25 1.8929 15.1733 -.25 2.0571 15.1183 -.25 2.5533 12.6362 -.25 2.5073
4 320 13.1925 -.25 1.8929 14.2738 -.25 .8484 15.2645 -.25 1.5662 15.1733 -.25 2.0571
4 320 14.6545 -.25 .437 15.3915 -.25 1.0834 15.2645 -.25 1.5662 14.2738 -.25 .8484
3 320 14.6545 -.25 .437 15.5536 -.25 .6112 15.3915 -.25 1.0834
4 320 14.6545 -.25 .437 14.9867 -.25 -.0144 15.8213 -.25 -.0144 15.5536 -.25 .6112
0 // Red faces
4 4 -18 -.25 6.8484 -18 -.25 -.0144 11.3554 -.25 5.5252 11.3 -.25 6.3522
4 4 -18 -.25 6.8484 11.3 -.25 6.3522 11.8448 -.25 6.3522 18 -.25 6.8484
3 4 18 -.25 6.8484 11.8448 -.25 6.3522 18 -.25 6.3522
3 4 -18 -.25 -.0144 11.5206 -.25 4.713 11.3554 -.25 5.5252
3 4 -18 -.25 -.0144 11.7927 -.25 3.93 11.5206 -.25 4.713
3 4 -18 -.25 -.0144 12.1668 -.25 3.1904 11.7927 -.25 3.93
3 4 -18 -.25 -.0144 12.6362 -.25 2.5073 12.1668 -.25 3.1904
3 4 -18 -.25 -.0144 13.1925 -.25 1.8929 12.6362 -.25 2.5073
3 4 -18 -.25 -.0144 14.2738 -.25 .8484 13.1925 -.25 1.8929
4 4 -18 -.25 -.0144 14.9867 -.25 -.0144 14.6545 -.25 .437 14.2738 -.25 .8484
4 4 18 -.25 -.0144 18 -.25 3.0522 15.1 -.25 3.0522 15.1183 -.25 2.5533
4 4 18 -.25 -.0144 15.1183 -.25 2.5533 15.1733 -.25 2.0571 15.2645 -.25 1.5662
3 4 18 -.25 -.0144 15.2645 -.25 1.5662 15.3915 -.25 1.0834
4 4 18 -.25 -.0144 15.3915 -.25 1.0834 15.5536 -.25 .6112 15.8213 -.25 -.0144
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2025-01-31 17:53:14
2025-07-28 22:08:26
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
