File Detail parts/s/2865as01.dat

Official File parts/s/2865as01.dat

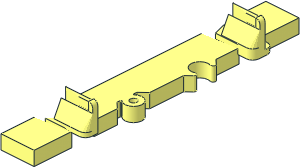

~Train Track 9V Straight - Plastic Part, End Sleeper

File Header:

0 ~Train Track  9V Straight - Plastic Part, End Sleeper
0 Name: s\2865as01.dat
0 Author: Max Martin Richter [MMR1988]
0 !LDRAW_ORG Subpart UPDATE 2025-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-02-27 [OrionP] Official Update 2025-02

Show contents

0 // inner part

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2867as05.dat

1 16 -20 4 -70 0 1 0 -4 0 0 0 0 10 rect3.dat
4 16 -20 8 -60 -16 8 -60 -16 8 -76 -20 8 -80

3 16 0 0 -58 -20 0 -60 -20 0 -80

4 16 0 0 -43 0 0 -29.75 -4 0 -26 -10 0 -43
4 16 -20 0 -41 -10 0 -43 -4 0 -26 -4 0 -24
3 16 -20 0 -41 -4 0 -24 -4 0 -16
3 16 -4 0 -16 -4 0 -14 -20 0 -41
4 16 -20 0 -41 -4 0 -14 -5 0 15 -20 0 41
3 16 -5 0 15 -5 0 20 -20 0 41
3 16 -20 0 41 -5 0 20 -5 0 25
4 16 0 0 29.75 0 0 43 -20 0 41 -5 0 25
3 16 -20 0 60 -10 0 58 -20 0 80
3 16 -20 0 80 -10 0 58 0 0 55.5

0 // centre part

1 16 -20 4 0 0 1 0 0 0 4 41 0 0 rect.dat

4 16 -16 8 -41 -20 8 -41 -20 8 41 -16 8 41

0 // outer part

1 16 -20 4 70 0 1 0 4 0 0 0 0 -10 rect3.dat
4 16 -16 8 60 -20 8 60 -20 8 80 -16 8 76
3 16 0 0 55.5 -10 0 58 -10 0 50.5

4 16 6.5 -15.5 47.875 6.5 -15.5 50 -10 -15.5 50 0 -15.5 47.875
3 16 0 -11 47.375 0 -11 47.875 -10 -11 47.375
3 16 0 -11 -53.625 0 -11 -53.125 -10 -11 -53.625
3 16 0 -2.5 -58 -10 -2.5 -58 0 0 -58
3 16 -10 -15.5 -50.5 -10 -8 -50.5 -10 -3.75 -47.375
3 16 -10 -3.75 -47.375 -10 -8 -50.5 -10 0 -50.5
4 16 -10 0 58 -10 -2.5 58 -10 -3.75 53.625 -10 0 50.5
3 16 -10 -8 50.5 -10 0 50.5 -10 -3.75 53.625
3 16 -10 -3.75 53.625 -10 -15.5 50.5 -10 -8 50.5
1 16 -10 -3.75 47.375 0 1 0 -7.25 0 1.25 0 0 -4.375 triangle.dat
1 16 -5 -6.75 45.1875 5 0 0 0 1 -4.25 0 0 2.1875 rect2p.dat
1 16 -10 -3.75 -53.625 0 1 0 -7.25 0 1.25 0 0 -4.375 triangle.dat
1 16 -5 -6.75 -55.8125 5 0 0 0 1 -4.25 0 0 2.1875 rect2p.dat

4 16 0 -15.5 -53.125 6.5 -15.5 -53.125 6.5 -15.5 -51 -10 -15.5 -51

2 24 -10 -3.75 53.625 -10 -2.5 58
2 24 -10 -2.5 58 -10 0 58
2 24 -10 0 58 -10 0 50.5
2 24 -10 -3.75 -47.375 -10 -2.5 -43
2 24 -10 -2.5 -43 -10 0 -43

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Max Martin Richter [MMR1988]

initially submitted the part.

2025-02-08 20:45:18

Max Martin Richter [MMR1988]

posted a vote of Hold.

2025-02-09 13:15:44

Needs some adjustment for reuse in 32087.
