Official File parts/30367cps0.dat
Part Attributes:
Base Part: 30367c.dat
File Header:

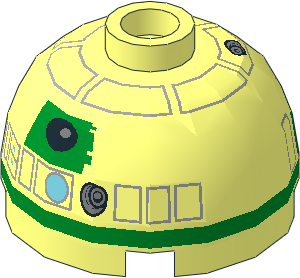

0 Cylinder 2 x 2 with Dome Top with SW Green/Grey R2-A5 Pattern
0 Name: 30367cps0.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Part UPDATE 2025-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS astromech, Bricklink 553pb021, droid, minifig
0 !KEYWORDS Rebrickable 30367cpr1004, set 75059, Star Wars
0 !HISTORY 2015-10-11 [PTadmin] Official Update 2015-01
0 !HISTORY 2019-04-29 [fwcain] Code split into sub-files, for use by other patterns
0 !HISTORY 2025-02-18 [notmaster] complete rewrite original by gargan
0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30367cs01.dat
1 71 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s02.dat
1 2 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s03.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30367ps0s04.dat
4 322 -8.1727 11.7 -17.3751 -9.2421 11.7 -16.6603 -9.277 12.2 -16.725 -8.2034 12.2 -17.4425
4 322 -8.2955 13.7 -17.645 -9.3814 13.7 -16.9191 -9.4164 14.2 -16.9838 -8.3262 14.2 -17.7124
1 16 0 19.3 0 20 0 0 0 0.7 0 0 0 20 4-4cyli.dat
1 16 0 16 0 -7.653669 0 -18.477591 0 0.7 0 18.477591 0 -7.653669 3-4cyli.dat
4 0 -7.145 11.9501 17.975 -7.1999 12.9501 18.1132 -7.4802 12.9501 18.0577 -7.4232 11.95 17.9198
4 0 -7.4232 11.95 17.9198 -7.4802 12.9501 18.0577 -13.8203 12.95 13.8203 -13.7148 11.95 13.7148
4 0 -13.9922 11.95 13.2997 -13.7148 11.95 13.7148 -13.8203 12.95 13.8203 -14.0997 12.95 13.4021
1 322 11.5 12.75 15.336 1.33 0 0.131 0 1 1.582 -0.89 0 0.195 4-4disc.dat
1 16 11.5 12.75 15.336 1.33 0 0.131 0 1 1.582 -0.89 0 0.195 4-4ndis.dat
3 16 13.4478 10.4 13.6205 12.699 11.168 14.251 11.369 11.168 15.141
3 16 13.4478 10.4 13.6205 11.369 11.168 15.141 7.3349 10.4 17.7062
3 16 7.3349 10.4 17.7062 11.369 11.168 15.141 10.039 11.168 16.031
3 16 13.4478 10.4 13.6205 12.83 12.75 14.446 12.699 11.168 14.251
3 16 13.9391 15.1001 14.1192 12.83 12.75 14.446 13.4478 10.4 13.6205
3 16 12.83 12.75 14.446 13.9391 15.1001 14.1192 12.961 14.332 14.641
3 16 11.631 14.332 15.531 12.961 14.332 14.641 13.9391 15.1001 14.1192
3 16 11.631 14.332 15.531 13.9391 15.1001 14.1192 10.301 14.332 16.421
3 16 10.301 14.332 16.421 13.9391 15.1001 14.1192 7.6027 15.1001 18.354
3 16 10.17 12.75 16.226 10.301 14.332 16.421 7.6027 15.1001 18.354
3 16 10.17 12.75 16.226 7.6027 15.1001 18.354 7.3349 10.4 17.7062
3 16 7.3349 10.4 17.7062 10.039 11.168 16.031 10.17 12.75 16.226
4 16 7.6027 15.1001 18.354 4.9578 15.1 18.8801 4.7829 10.4 18.2138 7.3349 10.4 17.7062
4 232 0 13.4503 -19.6199 0 12.2845 -19.4461 -.0825 12.5101 -19.4635 -.0798 13.2285 -19.5712
4 232 .1557 11.8586 -19.3516 0 12.2845 -19.4461 0 13.4503 -19.6199 .1634 13.9045 -19.6551
4 232 .1634 13.9045 -19.6551 .6101 14.4353 -19.6454 .5985 11.3732 -19.1912 .1557 11.8586 -19.3516
4 232 .5985 11.3732 -19.1912 .6101 14.4353 -19.6454 1.1922 14.7399 -19.575 1.1786 11.128 -19.0392
4 232 1.1786 11.128 -19.0392 1.1922 14.7399 -19.575 1.8212 14.7719 -19.4547 1.8077 11.1602 -18.9189
4 232 1.8077 11.1602 -18.9189 1.8212 14.7719 -19.4547 2.4013 14.5267 -19.3027 2.3897 11.4646 -18.8485
4 232 2.3897 11.4646 -18.8485 2.4013 14.5267 -19.3027 2.8441 14.0413 -19.1423 2.8365 11.9954 -18.8388
4 232 2.8365 11.9954 -18.8388 2.8441 14.0413 -19.1423 3.0823 13.3898 -18.9978 3.0797 12.6715 -18.8912
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2019-04-29 07:10:02
Fixed comments.
2019-05-04 15:50:01
2019-05-12 14:00:01
There is a message thread at the Forums for discussing this group of related files...
https://forums.ldraw.org/thread-23370-post-31978.html
Thanks,
Franklin
https://forums.ldraw.org/thread-23370-post-31978.html
Thanks,
Franklin
2023-09-09 14:20:45
Header Edits
keywords:
astromech, droid, minifig, R2, set 75059, Star Wars
to
astromech, droid, minifig, R2, R2-A5, set 75059, Star Wars, Bricklink 553pb021, Rebrickable 30367cpr1004
added part references
The authorship should be taken by Franklin for CC-BY-4 as total rewrite.
2024-06-25 12:49:52
I thank you for the offer, but this is _not_ a total rewrite. I did not change even one line of pre-existing DAT code; I merely _re-organized_ the DAT code into separate sub-files.
2024-06-25 13:43:31
This part must be CC BY 4 in order to be released. A rewrite, from scratch and without referring to this part, is warrented.
2025-02-18 15:21:02
Message posted onto Forums, asking for group discussion on how best to proceed...
https://forums.ldraw.org/thread-23370-post-56618.html#pid56618
My thanks in advance...
Franklin
https://forums.ldraw.org/thread-23370-post-56618.html#pid56618
My thanks in advance...
Franklin
rewrote myself
only 4 lines were taken from 30367cps8.dat
only 4 lines were taken from 30367cps8.dat
This part does NOT have the cyan dot inside that box outline.
2025-02-18 22:06:56
the ref image i used says otherwise
https://i.ebayimg.com/images/g/-YMAAOSwzBBnP-~m/s-l1600.webp
https://i.ebayimg.com/images/g/-YMAAOSwzBBnP-~m/s-l1600.webp
2025-02-18 22:20:07
2025-02-18 22:22:32
The official render just shows the current version of this file...
The "official" version of this part, in LDraw right now, does NOT have that cyan dot. All this time, I thought Gargan's file was correct. But per your evidence, it would appear that file was released with an error...
I'm cancelling my HOLD vote accordingly. Good catch! ;-)
The "official" version of this part, in LDraw right now, does NOT have that cyan dot. All this time, I thought Gargan's file was correct. But per your evidence, it would appear that file was released with an error...
I'm cancelling my HOLD vote accordingly. Good catch! ;-)
2025-02-18 23:38:36
I'm gonna have to side with Jeff on this one. Even Rebrickable shows the cyan.
2025-02-18 23:59:05
So, if someone else is claiming ownership of this file, does that mean I am ethically permitted to vote YES on this file (even though I did some of the corrections to the DAT code earlier)?
2025-02-19 00:11:47
For fixes, the initial submitter is typically the "Author" for purposes of whether or not something is a self certify. This is a bit fungible as a part could be wholesale rewritten after initial submit (like this part) which is why I removed the self certify block from fixes. To answer your question for this particular part, Jeff submitted a significant change and you are no longer the "Author" for purposes of self-certify.
2025-02-19 00:25:10
Well, I do not see an option to CERTIFY. Only COMMENT and HOLD...
I something still stuck in the back=end?
I something still stuck in the back=end?
2025-02-19 00:33:54
It's probably still blocking cert based on initial submitter. I'll have a look at the code.
2025-03-04 15:18:09
2025-05-26 20:13:29
Header Edits
description:
Cylinder 2 x 2 with Dome Top with SW Green and Bluish-Grey / R2-A5 Pattern
to
Cylinder 2 x 2 with Dome Top with SW Green/Grey R2-A5 Pattern
2025-05-26 20:13:43
2025-05-27 13:11:31
2025-05-28 03:31:28
Release 2025-05
