File Detail parts/s/92402s02.dat

Unofficial File parts/s/92402s02.dat

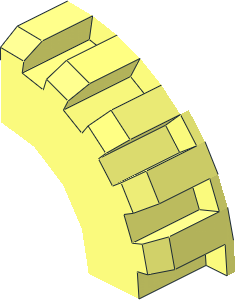

~Tyre 14/ 50 x 17 with Centre Band - Eighth

File Header:

0 ~Tyre 14/ 50 x 17 with Centre Band - Eighth
0 Name: s\92402s02.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2017-07-21 [GeraldLasser] Increased decimals to close gaps
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
0 !HISTORY 2025-02-20 [Blechtaler] used ndis
0 !HISTORY 2025-03-08 [Blechtaler] reworked with better subfiles+prims

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30391s03.dat

1 16 2.9715 -37.7665 -7 -2.9715 0 0 -.2335 1 0 0 0 -6 rect3.dat
1 16 7.679 -31.99 -9 0 0 2.518 0 1 .604 8 0 0 rect.dat
1 16 14.497 -35 -7 -2.755 0 0 -1.142 1 0 0 0 -6 rect3.dat
1 16 17.1895 -28.05 -9 0 0 2.2075 0 1 1.353 8 0 0 rect.dat
1 16 24.603 -28.806 -7 -2.267 0 0 -1.936 1 0 0 0 -6 rect3.dat
1 16 25.0155 -21.3655 -9 0 0 1.6815 0 1 1.9685 8 0 0 rect.dat
1 16 32.3 -19.794 -7 -1.558 0 0 -2.542 1 0 0 0 -6 rect3.dat
1 16 30.3945 -12.5895 -9 0 0 .9915 0 1 2.3925 8 0 0 rect.dat
1 16 36.8375 -8.8425 -7 -.6955 0 0 -2.8995 1 0 0 0 -6 rect3.dat
1 16 32.797 -2.5805 -9 0 0 .203 0 1 2.5805 8 0 0 rect.dat
4 16 0 -38 -13 0 -38 -1 0 -33 -1 0 -33 -17
4 16 5.943 -37.533 -13 5.161 -32.594 -17 5.161 -32.594 -1 5.943 -37.533 -1
4 16 11.742 -36.142 -13 11.742 -36.142 -1 10.197 -31.386 -1 10.197 -31.386 -17
4 16 17.252 -33.858 -13 14.982 -29.403 -17 14.982 -29.403 -1 17.252 -33.858 -1
4 16 19.397 -26.697 -1 19.397 -26.697 -17 22.336 -30.742 -13 22.336 -30.742 -1
4 16 23.334 -23.334 -17 23.334 -23.334 -1 26.87 -26.87 -1 26.87 -26.87 -13
4 16 26.697 -19.397 -1 26.697 -19.397 -17 30.742 -22.336 -13 30.742 -22.336 -1
4 16 33.858 -17.252 -13 29.403 -14.982 -17 29.403 -14.982 -1 33.858 -17.252 -1
4 16 36.142 -11.742 -1 31.386 -10.197 -1 31.386 -10.197 -17 36.142 -11.742 -13
4 16 32.594 -5.161 -17 32.594 -5.161 -1 37.533 -5.943 -1 37.533 -5.943 -13
4 16 5.943 -37.533 -1 5.161 -32.594 -1 10.197 -31.386 -1 11.742 -36.142 -1
4 16 22.336 -30.742 -1 17.252 -33.858 -1 14.982 -29.403 -1 19.397 -26.697 -1
4 16 26.87 -26.87 -1 23.334 -23.334 -1 26.697 -19.397 -1 30.742 -22.336 -1
4 16 33.858 -17.252 -1 29.403 -14.982 -1 31.386 -10.197 -1 36.142 -11.742 -1
4 16 37.533 -5.943 -1 32.594 -5.161 -1 33 0 -1 38 0 -1
2 24 32.594 -5.161 -1 37.533 -5.943 -1
2 24 10.197 -31.386 -1 11.742 -36.142 -1
2 24 14.982 -29.403 -1 17.252 -33.858 -1
2 24 19.397 -26.697 -1 22.336 -30.742 -1
2 24 5.161 -32.594 -1 5.943 -37.533 -1
2 24 36.142 -11.742 -1 31.386 -10.197 -1
2 24 26.697 -19.397 -1 30.742 -22.336 -1
2 24 26.87 -26.87 -1 23.334 -23.334 -1
2 24 33.858 -17.252 -1 29.403 -14.982 -1
2 24 33 0 -1 38 0 -1
1 16 28.806 -24.603 0 0 0 1.936 0 1 2.267 -1 0 0 rect1.dat
1 16 32.3 -19.794 0 0 0 -1.558 0 1 -2.542 1 0 0 rect1.dat
1 16 35 -14.497 0 0 0 1.142 0 1 2.755 -1 0 0 rect1.dat
1 16 36.8375 -8.8425 0 0 0 -.6955 0 1 -2.8995 1 0 0 rect1.dat
1 16 37.7665 -2.9715 0 0 0 .2335 0 1 2.9715 -1 0 0 rect1.dat
5 24 30.742 -22.336 1 30.742 -22.336 -1 26.87 -26.87 1 33.858 -17.252 -1
5 24 33.858 -17.252 -1 33.858 -17.252 1 36.142 -11.742 -1 30.742 -22.336 1
5 24 36.142 -11.742 -1 36.142 -11.742 1 33.858 -17.252 1 37.533 -5.943 -1
5 24 37.533 -5.943 -1 37.533 -5.943 1 38 0 -1 36.142 -11.742 1

Status:

Needs More Votes (F)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/30391s03.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

None

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-02-20 11:58:38

with ndis in the sidewall to avoid overlap in the assembly

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2025-03-08 17:15:51

with new subpart
