Unofficial File parts/63864ps0.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

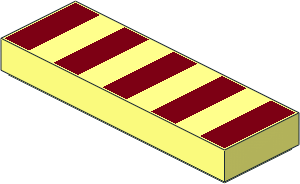

0 Tile 1 x 3 with 5 Dark Red Stripes Pattern
0 Name: 63864ps0.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Tile
0 !KEYWORDS Bricklink 63864pb188, Dagobah, Diorama Collection
0 !KEYWORDS Rebrickable 63864pr0043, Red Five, Set 75330, Star Wars, X-WingShow file code:
0 // Subpart
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\63864s01.dat
0 // Dark red faces
4 320 -29.52 0 9.52 -29.52 0 -9.52 -22.96 0 -9.52 -22.96 0 9.52
4 320 -16.4 0 9.52 -16.4 0 -9.52 -9.84 0 -9.52 -9.84 0 9.52
4 320 -3.28 0 9.52 -3.28 0 -9.52 3.28 0 -9.52 3.28 0 9.52
4 320 9.84 0 9.52 9.84 0 -9.52 16.4 0 -9.52 16.4 0 9.52
4 320 22.96 0 9.52 22.96 0 -9.52 29.52 0 -9.52 29.52 0 9.52
0 // Neutral faces
4 16 -30 0 10 -30 0 -10 -29.52 0 -9.52 -29.52 0 9.52
3 16 -30 0 10 -29.52 0 9.52 -22.96 0 9.52
3 16 -30 0 10 -22.96 0 9.52 -16.4 0 9.52
4 16 -30 0 10 -16.4 0 9.52 -9.84 0 9.52 -5 0 10
3 16 -5 0 10 -9.84 0 9.52 -3.28 0 9.52
4 16 -5 0 10 -3.28 0 9.52 3.28 0 9.52 5 0 10
3 16 5 0 10 3.28 0 9.52 9.84 0 9.52
4 16 30 0 10 5 0 10 9.84 0 9.52 16.4 0 9.52
3 16 30 0 10 16.4 0 9.52 22.96 0 9.52
3 16 30 0 10 22.96 0 9.52 29.52 0 9.52
4 16 30 0 10 29.52 0 9.52 29.52 0 -9.52 30 0 -10
4 16 -22.96 0 9.52 -22.96 0 -9.52 -16.4 0 -9.52 -16.4 0 9.52
4 16 16.4 0 9.52 16.4 0 -9.52 22.96 0 -9.52 22.96 0 9.52
4 16 -9.84 0 9.52 -9.84 0 -9.52 -3.28 0 -9.52 -3.28 0 9.52
4 16 3.28 0 9.52 3.28 0 -9.52 9.84 0 -9.52 9.84 0 9.52
3 16 -30 0 -10 -22.96 0 -9.52 -29.52 0 -9.52
3 16 -30 0 -10 -16.4 0 -9.52 -22.96 0 -9.52
4 16 -30 0 -10 -5 0 -10 -9.84 0 -9.52 -16.4 0 -9.52
3 16 -5 0 -10 -3.28 0 -9.52 -9.84 0 -9.52
4 16 -5 0 -10 5 0 -10 3.28 0 -9.52 -3.28 0 -9.52
3 16 5 0 -10 9.84 0 -9.52 3.28 0 -9.52
3 16 30 0 -10 29.52 0 -9.52 22.96 0 -9.52
3 16 30 0 -10 22.96 0 -9.52 16.4 0 -9.52
4 16 30 0 -10 16.4 0 -9.52 9.84 0 -9.52 5 0 -10Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Massimo Maso [Sirio]
initially submitted the part.
2025-02-21 18:11:55
Rene Rechthaler [Blechtaler]
made the following comment.
2025-04-17 10:50:22
Massimo Maso [Sirio]
made the following comment.
2025-04-19 14:10:31
For me no, otherwise the stripes become very irregular and not the same width. especially with the last rounds you indicate (9.8, 3.3).
This can result in problems if you place two staggered pieces of a stud side by side.
This can result in problems if you place two staggered pieces of a stud side by side.
Rene Rechthaler [Blechtaler]
made the following comment.
2025-04-19 15:08:11
the base step now is 3.2778 (29.5/9)
my proposal would be 6.6 (stripes) and 6.5 (gaps)
ideal (if the rim gets subtracted later would be 3.333 (30/9)
-> would also be possible to use 3.3333 as base step and make the outer strip a bit thinner
my proposal would be 6.6 (stripes) and 6.5 (gaps)
ideal (if the rim gets subtracted later would be 3.333 (30/9)
-> would also be possible to use 3.3333 as base step and make the outer strip a bit thinner
Rene Rechthaler [Blechtaler]
made the following comment.
2025-04-19 17:00:02
"This can result in problems if you place two staggered pieces of a stud side by side."
for this you would need the 3.3333 offset
would be at 29.5 - 23.3333 - 16.6667 - 10 - 3.3333 (mirrored at the negative side)
then you can shift it in the grid and its still aligned
for this you would need the 3.3333 offset
would be at 29.5 - 23.3333 - 16.6667 - 10 - 3.3333 (mirrored at the negative side)
then you can shift it in the grid and its still aligned
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2025-04-28 17:34:55
Enlarged a bit the pattern and rounded to two decimals.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2025-06-18 12:02:13
Not sure I understand the problem here - due to red stripes being (almost) at the outer borders, a complete alignment of multiples of this should be impossible anyways?
Red bars - 6.8 LDU
White bars - 6.0 LDU
Border Offset - 1 LDU
Should work fine.
Red bars - 6.8 LDU
White bars - 6.0 LDU
Border Offset - 1 LDU
Should work fine.
Chris Böhnke [KnightOfTarenta]
edited the part header.
2025-06-18 12:04:05
Header Edits
keywords:
Bricklink 63864pb188, Rebrickable 63864pr0043, Set 75330, Star Wars, X-Wing
to
Set 75330, Star Wars, X-Wing, Red Five, Dagobah, Diorama Collection, Bricklink 63864pb188, Rebrickable 63864pr0043
29.5002 > 29.5
22.9446 > 22.9
16.389 > 16.4
9.8334 > 9.8
3.2778 > 3.3
