File Detail parts/s/6395s01.dat

Unofficial File parts/s/6395s01.dat

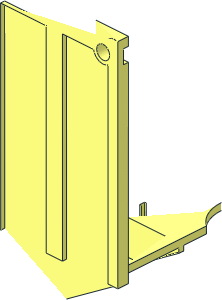

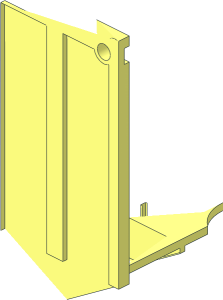

~Duplo Container 4 x 4 x 3 with Open Sides - Quarter

File Header:

0 ~Duplo Container  4 x  4 x  3 with Open Sides - Quarter
0 Name: s\6395s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 32.5 124 -20 0 0 -.5 0 19 0 1.5 0 0 box4-1.dat
1 16 20 124 -32.5 1.5 0 0 0 19 0 0 0 .5 box4-1.dat

0 // Centre
0 BFC INVERTNEXT
1 16 85.72 120 0 -25 0 0 0 4 0 0 0 -24 48\7-48cylo.dat
1 16 85.72 120 0 -25 0 0 0 1 0 0 0 -24 48\7-48tndis.dat
1 16 85.72 124 0 -25 0 0 0 -1 0 0 0 -24 48\7-48tndis.dat
3 16 43 144 -33 43 144 -36 36 144 -33
3 16 36 144 -33 43 144 -36 33 144 -33
4 16 36 124 -33 70.5 124 -33 43 144 -33 36 144 -33
3 16 70.5 124 -33 70.5 126.8125 -33 43 144 -33
4 16 60.72 124 -19.0416 70.5 124 -19.0416 70.5 124 -33 36 124 -33
3 16 60.72 124 -19.0416 36 124 -33 60.72 124 0
2 24 36 124 -33 70.5 124 -33
2 24 70.5 124 -19.0416 70.5 120 -19.0416
2 24 43 144 -33 36 144 -33
1 16 56.75 135.40625 -34.5 0 0 13.75 0 -1 -8.59375 1.5 0 0 rect.dat

1 16 70.5 125.40625 -34.5 0 -1 0 1.40625 0 0 0 0 1.5 rect2p.dat
3 16 70.5 120 -73.5 70.5 124 -73.5 70.5 124 -36
4 16 70.5 120 -73.5 70.5 124 -36 70.5 124 -33 70.5 120 -19.0416
3 16 70.5 124 -33 70.5 124 -19.0416 70.5 120 -19.0416
2 24 70.5 124 -73.5 70.5 124 -36
2 24 70.5 120 -73.5 70.5 120 -19.0416
2 24 70.5 124 -33 70.5 124 -19.0416
2 24 70.5 120 -73.5 70.5 124 -73.5
3 16 70.5 120 -73.5 70.5 120 -19.0416 60.72 120 -19.0416

0 // Wall Inside
3 16 77 124 -73.5 70.5 124 -73.5 70.5 120 -73.5
3 16 72 5 -73.5 68 5 -73.5 77 0 -73.5
4 16 72 13 -73.5 72 9 -73.5 73 5 -73.5 73 13 -73.5
3 16 72 5 -73.5 73 5 -73.5 72 9 -73.5
3 16 73 5 -73.5 72 5 -73.5 77 0 -73.5
3 16 73 5 -73.5 77 0 -73.5 77 5 -73.5
4 16 70.5 120 -73.5 73 13 -73.5 77 13 -73.5 77 124 -73.5
3 16 72 13 -73.5 73 13 -73.5 70.5 120 -73.5
3 16 72 13 -73.5 70.5 120 -73.5 68 13 -73.5
3 16 68 13 -73.5 70.5 120 -73.5 64 13 -73.5
3 16 64 13 -73.5 70.5 120 -73.5 57 4 -73.5
3 16 64 13 -73.5 57 4 -73.5 64 9 -73.5
4 16 57 0 -73.5 64 5 -73.5 64 9 -73.5 57 4 -73.5
4 16 77 0 -73.5 68 5 -73.5 64 5 -73.5 57 0 -73.5
1 16 68 9 -73.5 4 0 0 0 0 -4 0 -1 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 77 5 -73.5 -4 0 0 0 8 0 0 0 -3 tri3u1.dat
2 24 77 124 -73.5 70.5 124 -73.5
2 24 57 0 -73.5 77 0 -73.5
2 24 77 0 -73.5 77 5 -73.5
2 24 77 13 -73.5 77 124 -73.5

1 16 59 134 -76 -16 0 0 10 -1 0 0 0 1.5 rect.dat
4 16 77 124 -80 75 124 -77.5 75 124 -74.5 77 124 -73.5
3 16 77 124 -73.5 75 124 -74.5 70.5 124 -73.5
4 16 71 124 -80 71 124 -77.5 75 124 -77.5 77 124 -80
2 24 77 124 -80 77 124 -73.5
2 24 71 124 -77.5 75 124 -77.5
2 24 71 124 -77.5 71 124 -80
2 24 71 124 -80 77 124 -80

0 // Wall Outside
4 16 77 13 -76.5 77 5 -76.5 77 0 -80 77 124 -80
4 16 77 124 -80 77 124 -73.5 77 13 -73.5 77 13 -76.5
4 16 77 0 -73.5 77 0 -80 77 5 -76.5 77 5 -73.5
2 24 77 0 -80 77 0 -73.5

0 BFC INVERTNEXT
1 16 19 124 -78.75 14 0 0 0 -114 0 0 0 1.25 box4-2p.dat
1 16 68 9 -80 0 0 -6 6 0 0 0 2.5 0 3-16cylo.dat
1 16 68 9 -80 0 0 6 6 0 0 0 2.5 0 1-16cylo.dat
1 16 71 69.0365215 -78.75 0 1 0 -54.9634785 0 0 0 0 1.25 rect.dat
1 16 38 67 -78.75 5 0 0 0 0 57 0 -1.25 0 box3-7a.dat
1 16 52.59945 10 -78.75 0 0 -9.59945 0 -1 0 -1.25 0 0 rect.dat
3 16 43 144 -77.5 71 124 -77.5 43 124 -77.5
3 16 43 144 -77.5 75 124 -77.5 71 124 -77.5
3 16 43 144 -77.5 43 124 -77.5 33 124 -77.5
3 16 43 144 -77.5 33 124 -77.5 5 124 -77.5
4 16 68 15 -77.5 62.1989 10 -77.5 43 10 -77.5 43 124 -77.5
4 16 68 15 -77.5 43 124 -77.5 71 124 -77.5 71 14.073043 -77.5
4 16 71 14.073043 -77.5 71 14.073043 -80 70.2962 14.5434 -80 70.2962 14.5434 -77.5
4 16 62.4566 11.2962 -80 62.1989 10 -80 62.1989 10 -77.5 62.4566 11.2962 -77.5
2 24 70.2962 14.5434 -80 71 14.073043 -80
2 24 70.2962 14.5434 -77.5 71 14.073043 -77.5
2 24 62.1989 10 -80 62.4566 11.2962 -80
2 24 62.1989 10 -77.5 62.4566 11.2962 -77.5
5 24 62.4566 11.2962 -77.5 62.4566 11.2962 -80 63.7574 13.2426 -80 62.1989 10 -80
5 24 70.2962 14.5434 -77.5 70.2962 14.5434 -80 71 14.073043 -77.5 68 15 -77.5

0 BFC INVERTNEXT
1 16 68 9 -80 4 0 0 0 0 -4 0 6.5 0 4-4cylo.dat
1 16 68 9 -80 4 0 0 0 0 -4 0 1 0 2-4ndis.dat
1 16 68 9 -80 4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 68 9 -80 -4 0 0 0 0 4 0 1 0 1-16tndis.dat
1 16 68 9 -80 0 0 -2 2 0 0 0 2.5 0 3-16ring2.dat
1 16 68 9 -80 0 0 6 6 0 0 0 1 0 1-16chrd.dat
3 16 33 10 -80 43 10 -80 77 0 -80
3 16 33 10 -80 77 0 -80 5 10 -80
3 16 64 10.5308 -80 62.4566 11.2962 -80 64.3044 10.5308 -80
4 16 62.1989 10 -80 62.4566 11.2962 -80 64 10.5308 -80 64 9 -80
4 16 64 5 -80 43 10 -80 62.1989 10 -80 64 9 -80
3 16 77 0 -80 72 5 -80 72 9 -80
3 16 77 0 -80 72 9 -80 72 13 -80
3 16 77 0 -80 72 13 -80 77 124 -80
4 16 71 14.073043 -80 71 124 -80 77 124 -80 72 13 -80
4 16 68 13 -80 68 15 -80 70.2962 14.5434 -80 71 14.073043 -80
3 16 68 13 -80 71 14.073043 -80 72 13 -80
3 16 43 10 -80 64 5 -80 77 0 -80
3 16 77 0 -80 64 5 -80 68 5 -80
3 16 77 0 -80 68 5 -80 72 5 -80
2 24 77 0 -80 77 124 -80

3 16 57 0 -73.5 77 0 -80 77 0 -73.5

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-02-23 22:54:20

Creative Commons Attribution License information
