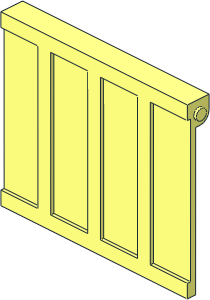

0 Duplo Container Side Panel
0 Name: 6396.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Place Doors as follows to fit 6395
0 !HELP 1 1 -68 9 0 0 0 1 0 1 0 -1 0 0 6396.dat
0 !HELP 1 1 68 9 0 0 0 -1 0 1 0 1 0 0 6396.dat
0 BFC CERTIFY CCW
0 !KEYWORDS 6395
Show contents
1 16 0 -9 -.5 0 0 -73 0 1 0 8.5 0 0 rect.dat
4 16 -73 -9 8 -69 -2.5 8 -69 1 8 -73 1 8
4 16 73 -9 8 69 -2.5 8 -69 -2.5 8 -73 -9 8
4 16 69 1 8 69 -2.5 8 73 -9 8 73 1 8
2 24 73 -9 8 73 1 8
2 24 69 -2.5 8 69 1 8
2 24 -69 -2.5 8 -69 1 8
2 24 -73 -9 8 -73 1 8
4 16 2 -2.5 -2.5 -2 -2.5 -2.5 -69 -2.5 8 69 -2.5 8
3 16 69 -2.5 8 37 -2.5 -2.5 2 -2.5 -2.5
3 16 -2 -2.5 -2.5 -37 -2.5 -2.5 -69 -2.5 8
3 16 69 -2.5 8 69 -2.5 -2.5 41 -2.5 -2.5
3 16 69 -2.5 8 41 -2.5 -2.5 37 -2.5 -2.5
3 16 -69 -2.5 -2.5 -69 -2.5 8 -41 -2.5 -2.5
3 16 -41 -2.5 -2.5 -69 -2.5 8 -37 -2.5 -2.5
1 16 0 -2.5 2.5 69 0 0 0 1 0 0 0 5.25 recte3.dat
2 24 41 -2.5 -2.5 69 -2.5 -2.5
2 24 -41 -2.5 -2.5 -69 -2.5 -2.5
0 // Hinge and Sides
1 16 -73 1 1 0 4 0 0 0 7 7 0 0 1-4cylo.dat
1 16 -73 1 1 0 1 0 0 0 7 7 0 0 1-4chrd.dat
1 16 -69 1 1 0 -1 0 0 0 7 7 0 0 1-4chrd.dat
1 16 -71 8 -.75 2 0 0 0 -1 0 0 0 -1.75 rect3.dat
4 16 -73 1 -9 -73 -9 -9 -73 -9 8 -73 1 -6.5
4 16 -69 1 8 -69 -2.5 8 -69 -2.5 -2.5 -69 8 1
3 16 -69 8 1 -69 -2.5 -2.5 -69 8 -2.5
4 16 -73 1 -6.5 -73 -9 8 -73 1 8 -73 8 1
3 16 -73 8 1 -73 8 -2.5 -73 1 -6.5
1 16 -75 0 0 0 2 0 0 0 -4 -4 0 0 4-4cylc.dat
2 24 -69 -2.5 -2.5 -69 8 -2.5
2 24 -73 -9 -9 -73 1 -9
4 16 -73 105 -6.5 -73 1 -6.5 -73 8 -2.5 -73 115 -2.5
4 16 -73 105 -6.5 -73 115 -2.5 -73 115 -9 -73 105 -9
2 24 -73 8 -2.5 -73 115 -2.5
2 24 -73 105 -9 -73 115 -9
1 16 73 1 1 0 -4 0 0 0 7 7 0 0 1-4cylo.dat
1 16 73 1 1 0 -1 0 0 0 7 7 0 0 1-4chrd.dat
1 16 69 1 1 0 1 0 0 0 7 7 0 0 1-4chrd.dat
1 16 71 8 -.75 -2 0 0 0 -1 0 0 0 -1.75 rect3.dat
4 16 73 -9 8 73 -9 -9 73 1 -9 73 1 -6.5
4 16 69 -2.5 -2.5 69 -2.5 8 69 1 8 69 8 1
3 16 69 -2.5 -2.5 69 8 1 69 8 -2.5
4 16 73 1 8 73 -9 8 73 1 -6.5 73 8 1
3 16 73 8 -2.5 73 8 1 73 1 -6.5
1 16 75 0 0 0 -2 0 0 0 -4 -4 0 0 4-4cylc.dat
2 24 69 8 -2.5 69 -2.5 -2.5
2 24 73 1 -9 73 -9 -9
4 16 73 8 -2.5 73 1 -6.5 73 105 -6.5 73 115 -2.5
4 16 73 115 -9 73 115 -2.5 73 105 -6.5 73 105 -9
2 24 73 115 -2.5 73 8 -2.5
2 24 73 115 -9 73 105 -9
0 // Inside
4 16 -41 109 -2.5 -69 109 -2.5 -73 8 -2.5 -69 8 -2.5
4 16 -41 109 -2.5 -69 8 -2.5 -69 -2.5 -2.5 -41 -2.5 -2.5
4 16 -69 115 -2.5 -73 115 -2.5 -73 8 -2.5 -69 109 -2.5
1 16 -55 53.25 -4 0 0 14 0 55.75 0 -1.5 0 0 box2-5.dat
0 BFC INVERTNEXT
1 16 -39 53.25 -4 -2 0 0 0 -55.75 0 0 0 -1.5 box2-11.dat
1 16 -19.5 53.25 -5.5 -17.5 0 0 0 0 55.75 0 3 0 box4-1.dat
0 BFC INVERTNEXT
1 16 0 53.25 -4 -2 0 0 0 -55.75 0 0 0 -1.5 box2-11.dat
1 16 19.5 53.25 -5.5 -17.5 0 0 0 0 55.75 0 3 0 box4-1.dat
0 BFC INVERTNEXT
1 16 39 53.25 -4 -2 0 0 0 -55.75 0 0 0 -1.5 box2-11.dat
1 16 55 53.25 -4 0 0 -14 0 55.75 0 -1.5 0 0 box2-5.dat
4 16 69 115 -2.5 69 109 -2.5 73 8 -2.5 73 115 -2.5
4 16 41 109 -2.5 69 8 -2.5 73 8 -2.5 69 109 -2.5
4 16 41 109 -2.5 41 -2.5 -2.5 69 -2.5 -2.5 69 8 -2.5
1 16 69 112 -4 0 1 0 0 0 3 1.5 0 0 rect3.dat
1 16 -69 112 -4 0 -1 0 0 0 3 -1.5 0 0 rect3.dat
4 16 -2 109 -5.5 2 109 -5.5 69 115 -5.5 -69 115 -5.5
3 16 69 109 -5.5 69 115 -5.5 41 109 -5.5
3 16 41 109 -5.5 69 115 -5.5 37 109 -5.5
3 16 37 109 -5.5 69 115 -5.5 2 109 -5.5
3 16 -69 115 -5.5 -69 109 -5.5 -41 109 -5.5
3 16 -69 115 -5.5 -41 109 -5.5 -37 109 -5.5
3 16 -69 115 -5.5 -37 109 -5.5 -2 109 -5.5
2 24 69 115 -5.5 -69 115 -5.5
2 24 -69 115 -2.5 -73 115 -2.5
2 24 73 115 -2.5 69 115 -2.5
4 16 -73 115 -2.5 -69 115 -2.5 -69 115 -5.5 -73 115 -9
4 16 -73 115 -9 -69 115 -5.5 69 115 -5.5 73 115 -9
4 16 73 115 -2.5 73 115 -9 69 115 -5.5 69 115 -2.5
1 16 0 115 -5.75 73 0 0 0 1 0 0 0 -3.25 recte3.dat
0 // Outside
3 16 -73 -9 -9 -73 1 -9 -44 1 -9
3 16 -73 -9 -9 -44 1 -9 -34 1 -9
3 16 -73 -9 -9 -34 1 -9 -5 1 -9
4 16 73 -9 -9 -73 -9 -9 -5 1 -9 5 1 -9
3 16 73 -9 -9 5 1 -9 34 1 -9
3 16 34 1 -9 44 1 -9 73 -9 -9
3 16 73 1 -9 73 -9 -9 44 1 -9
0 BFC INVERTNEXT
1 16 -73 53 -7.75 0 29 0 52 0 0 0 0 1.25 box4-1.dat
0 BFC INVERTNEXT
1 16 19.5 53 -9 14.5 0 0 0 0 52 0 2.5 0 box5.dat
0 BFC INVERTNEXT
1 16 -19.5 53 -9 14.5 0 0 0 0 52 0 2.5 0 box5.dat
0 BFC INVERTNEXT
1 16 73 53 -7.75 0 -29 0 52 0 0 0 0 1.25 box4-1.dat
4 16 -34 1 -9 -44 1 -9 -44 105 -9 -34 105 -9
4 16 -5 1 -9 -5 105 -9 5 105 -9 5 1 -9
4 16 44 1 -9 34 1 -9 34 105 -9 44 105 -9
3 16 -73 105 -9 -73 115 -9 -44 105 -9
3 16 -44 105 -9 -73 115 -9 -34 105 -9
3 16 -34 105 -9 -73 115 -9 -5 105 -9
4 16 73 115 -9 5 105 -9 -5 105 -9 -73 115 -9
3 16 73 115 -9 73 105 -9 44 105 -9
3 16 73 115 -9 44 105 -9 34 105 -9
3 16 73 115 -9 34 105 -9 5 105 -9
