Unofficial File parts/s/4544s03.dat
File Header:

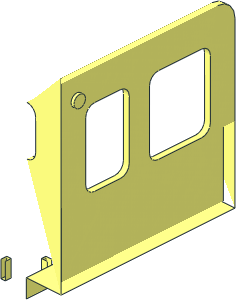

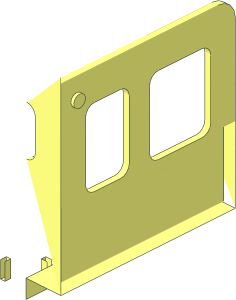

0 ~Duplo Train Cabin 3.2 x 3 x 3 Common Geometry without Patternable Surfaces - Half
0 Name: s\4544s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
4 16 40 16 60 40 16 -60 36 16 -56 36 16 56
1 16 20 4 54 -1.5 0 0 0 11 0 0 0 -2 box4-1.dat
1 16 34 4 -40 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 34 4 0 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 34 4 40 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 20 4 -54 1.5 0 0 0 11 0 0 0 2 box4-1.dat
0 BFC INVERTNEXT
1 16 52 10 0 0 0 -12 0 -6 0 -60 0 0 box2-5.dat
0 // Front
0 BFC INVERTNEXT
1 16 40.5 -89 -60 6 0 0 0 0 -6 0 4 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 40.5 -69 -60 6 0 0 0 0 6 0 4 0 1-4cylo.dat
1 16 46.5 -79 -58 0 1 0 10 0 0 0 0 -2 rect2p.dat
1 16 40.5 -89 -56 6 0 0 0 0 -6 0 -1 0 1-4ndis.dat
1 16 40.5 -69 -56 6 0 0 0 0 6 0 -1 0 1-4ndis.dat
1 16 40.5 -89 -60 6 0 0 0 0 -6 0 1 0 1-4ndis.dat
1 16 40.5 -69 -60 6 0 0 0 0 6 0 1 0 1-4ndis.dat
3 16 40.5 -63 -60 64 4 -60 46.5 -63 -60
3 16 46.5 -63 -60 64 4 -60 46.5 -69 -60
4 16 46.5 -89 -60 64 -45 -60 64 -115 -60 46.5 -95 -60
4 16 46.5 -69 -60 64 4 -60 64 -45 -60 46.5 -89 -60
3 16 46.5 -95 -60 64 -115 -60 40.5 -95 -60
3 16 40.5 -95 -56 60 -115 -56 46.5 -95 -56
3 16 46.5 -95 -56 60 -115 -56 46.5 -89 -56
3 16 46.5 -89 -56 60 -115 -56 46.5 -69 -56
4 16 46.5 -69 -56 60 -115 -56 60 0 -56 46.5 -63 -56
3 16 46.5 -63 -56 60 0 -56 40.5 -63 -56
2 24 60 0 -56 60 -115 -56
2 24 64 -45 -60 64 4 -60
2 24 64 -115 -60 64 -45 -60
0 // Side
1 16 66 -101.5 -49.125 0 -2 0 4 0 0 0 0 4 4-4cylc.dat
4 16 64 -115 -60 64 -115 48 60 -115 48 60 -115 -56
1 16 60 -103 48 0 4 0 -12 0 0 0 0 12 1-4cylo.dat
1 16 60 -103 48 0 1 0 -12 0 0 0 0 12 1-4chrd.dat
1 16 64 -103 48 0 -1 0 -12 0 0 0 0 12 1-4chrd.dat
0 BFC INVERTNEXT
1 16 64 -89 -37 0 -4 0 0 0 -6 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -89 -19 0 -4 0 0 0 -6 6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -89 7 0 -4 0 0 0 -6 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -89 37 0 -4 0 0 0 -6 6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -51 -37 0 -4 0 0 0 6 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -51 -19 0 -4 0 0 0 6 6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -51 7 0 -4 0 0 0 6 -6 0 0 1-4cylo.dat
0 BFC INVERTNEXT
1 16 64 -51 37 0 -4 0 0 0 6 6 0 0 1-4cylo.dat
1 16 62 -70 -43 0 0 -2 -19 0 0 0 -1 0 rect2p.dat
1 16 62 -95 -28 0 0 2 0 -1 0 -9 0 0 rect2p.dat
1 16 62 -70 -13 0 0 -2 -19 0 0 0 1 0 rect2p.dat
1 16 62 -45 -28 0 0 2 0 1 0 -9 0 0 rect2p.dat
1 16 62 -70 1 0 0 -2 -19 0 0 0 -1 0 rect2p.dat
1 16 62 -95 22 0 0 2 0 -1 0 -15 0 0 rect2p.dat
1 16 62 -70 43 0 0 -2 -19 0 0 0 1 0 rect2p.dat
1 16 62 -45 22 0 0 2 0 1 0 -15 0 0 rect2p.dat
1 16 64 -89 -37 0 -1 0 0 0 -6 -6 0 0 1-4ndis.dat
1 16 64 -89 -19 0 -1 0 0 0 -6 6 0 0 1-4ndis.dat
1 16 64 -89 7 0 -1 0 0 0 -6 -6 0 0 1-4ndis.dat
1 16 64 -89 37 0 -1 0 0 0 -6 6 0 0 1-4ndis.dat
1 16 64 -51 -37 0 -1 0 0 0 6 -6 0 0 1-4ndis.dat
1 16 64 -51 -19 0 -1 0 0 0 6 6 0 0 1-4ndis.dat
1 16 64 -51 7 0 -1 0 0 0 6 -6 0 0 1-4ndis.dat
1 16 64 -51 37 0 -1 0 0 0 6 6 0 0 1-4ndis.dat
1 16 60 -89 -37 0 1 0 0 0 -6 -6 0 0 1-4ndis.dat
1 16 60 -89 -19 0 1 0 0 0 -6 6 0 0 1-4ndis.dat
1 16 60 -89 7 0 1 0 0 0 -6 -6 0 0 1-4ndis.dat
1 16 60 -89 37 0 1 0 0 0 -6 6 0 0 1-4ndis.dat
1 16 60 -51 -37 0 1 0 0 0 6 -6 0 0 1-4ndis.dat
1 16 60 -51 -19 0 1 0 0 0 6 6 0 0 1-4ndis.dat
1 16 60 -51 7 0 1 0 0 0 6 -6 0 0 1-4ndis.dat
1 16 60 -51 37 0 1 0 0 0 6 6 0 0 1-4ndis.dat
3 16 60 -45 37 60 -45 43 60 0 56
3 16 60 -45 37 60 0 56 60 -45 7
3 16 60 -45 7 60 0 56 60 -45 1
3 16 60 -45 1 60 0 56 60 -45 -13
4 16 60 0 56 60 0 -56 60 -45 -19 60 -45 -13
3 16 60 -45 -19 60 0 -56 60 -45 -37
3 16 60 -45 -37 60 0 -56 60 -45 -43
3 16 60 -45 -43 60 0 -56 60 -51 -43
3 16 60 -51 -43 60 0 -56 60 -89 -43
4 16 60 0 -56 60 -115 -56 60 -95 -43 60 -89 -43
3 16 60 -95 -43 60 -115 -56 60 -95 -37
3 16 60 -95 -37 60 -115 -56 60 -95 -19
3 16 60 -95 -19 60 -115 -56 60 -95 -13
3 16 60 -95 -13 60 -115 -56 60 -95 1
4 16 60 -115 -56 60 -115 48 60 -95 7 60 -95 1
3 16 60 -95 7 60 -115 48 60 -95 37
4 16 60 -95 37 60 -115 48 60 -103 60 60 -95 43
4 16 60 -95 1 60 -89 1 60 -89 -13 60 -95 -13
4 16 60 -51 -13 60 -89 -13 60 -89 1 60 -51 1
4 16 60 -45 -13 60 -51 -13 60 -51 1 60 -45 1
3 16 60 -103 60 60 -99 60 60 -99 56
3 16 60 -103 60 60 -99 56 60 -95 43
3 16 60 -95 43 60 -99 56 60 -89 43
3 16 60 -89 43 60 -99 56 60 -51 43
3 16 60 -51 43 60 -99 56 60 -45 43
3 16 60 -45 43 60 -99 56 60 0 56
4 16 64 -45 -60 64 -45 -43 64 -51 -43 64 -115 -60
3 16 64 -51 -43 64 -89 -43 64 -115 -60
3 16 64 -89 -43 64 -95 -43 64 -115 -60
3 16 64 -115 -60 64 -95 -43 64 -95 -37
3 16 64 -115 -60 64 -95 -37 64 -95 -19
3 16 64 -115 -60 64 -95 -19 64 -95 -13
3 16 64 -115 -60 64 -95 -13 64 -95 1
4 16 64 -95 7 64 -115 48 64 -115 -60 64 -95 1
3 16 64 -115 48 64 -95 7 64 -95 37
4 16 64 -103 60 64 -115 48 64 -95 37 64 -95 43
3 16 64 -103 60 64 -95 43 64 -89 43
4 16 64 -89 -13 64 -89 1 64 -95 1 64 -95 -13
4 16 64 -89 1 64 -89 -13 64 -51 -13 64 -51 1
4 16 64 -51 1 64 -51 -13 64 -45 -13 64 -45 1
3 16 64 -103 60 64 -89 43 64 -51 43
4 16 64 -45 60 64 -103 60 64 -51 43 64 -45 43
0 BFC INVERTNEXT
1 16 44 -40 60 0 0 8 8 0 0 0 -4 0 48\11-48cylo.dat
1 16 44 -40 60 0 0 8 8 0 0 0 -1 0 48\11-48ndis.dat
1 16 44 -40 56 0 0 8 8 0 0 0 1 0 48\11-48ndis.dat
4 16 60 -99 56 51.9312 -38.956 56 52 -32 56 60 0 56
4 16 64 4 60 52 -32 60 51.9312 -38.956 60 60 -99 60
4 16 64 4 60 60 -99 60 60 -103 60 64 -45 60
3 16 64 -103 60 64 -45 60 60 -103 60
3 16 52 -32 60 64 4 60 44 -32 60
3 16 52 -32 56 44 -32 56 60 0 56
4 16 60 -99 60 51.9312 -38.956 60 51.9312 -38.956 56 60 -99 56
2 24 60 -99 60 60 -103 60
2 24 60 -99 60 51.9312 -38.956 60
2 24 51.9312 -38.956 56 60 -99 56
2 24 60 -99 56 60 0 56
2 24 64 -45 60 64 4 60
2 24 64 -103 60 64 -45 60
5 24 60 -99 60 60 -99 56 60 -103 60 51.9312 -38.956 56
Status:
Awaiting Admin Review (CCN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| RainbowDolphin | Certify |
| Blechtaler | Certify |
Official parents and subparts
Part Events:
subfiled for the wide window version
REorganized to cater for 4544 and 4544a
there were no prints for 4544a
I approximated the width of the front windows on 4544, if you get hold of a picture that clearly show their width, let me know!
there were no prints for 4544a
I approximated the width of the front windows on 4544, if you get hold of a picture that clearly show their width, let me know!
