Unofficial File parts/4548.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

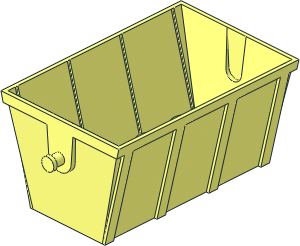

0 Duplo Train Tipper 2 x 5 with Corrugated Slanted Sides
0 Name: 4548.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY DuploShow file code:
1 16 0 52 -40 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 52 40 1 0 0 0 2.75 0 0 0 1 stug7-2x2.dat
1 16 0 56 0 0 0 1 0 -2 0 -1 0 0 stug8-1x4.dat
0 BFC INVERTNEXT
1 16 0 68 0 0 0 36 0 -12 0 -92 0 0 box5.dat
4 16 -40 68 -25 -40 68 25 -36 68 92 -36 68 -92
4 16 -40 68 -95 -36 68 -92 36 68 -92 40 68 -95
4 16 40 68 25 40 68 -25 36 68 -92 36 68 92
4 16 -40 68 95 40 68 95 36 68 92 -36 68 92
2 24 40 68 -25 40 68 25
2 24 -40 68 -25 -40 68 25
2 24 -40 68 95 40 68 95
2 24 -40 68 -95 40 68 -95
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4548s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\4548s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4548s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\4548s01.dat
4 16 62.5962 -26 -25 40 68 -25 40 68 25 62.5962 -26 25
1 16 64.0962 -26 0 0 0 1.5 0 -1 0 25 0 0 rect2p.dat
4 16 65.5962 -26 -25 65.5962 -26 25 68 -36 104 68 -36 -104
4 16 68 -36 104 64 -36 100 64 -36 -100 68 -36 -104
4 16 -40 68 25 -40 68 -25 -62.5962 -26 -25 -62.5962 -26 25
1 16 -64.0962 -26 0 0 0 -1.5 0 -1 0 25 0 0 rect2p.dat
4 16 -68 -36 104 -65.5962 -26 25 -65.5962 -26 -25 -68 -36 -104
4 16 -64 -36 -100 -64 -36 100 -68 -36 104 -68 -36 -104
0 // Pin
3 16 -40 68 -95 40 68 -95 0 13 -98.510626
4 16 -15 -26 -104 15 -26 -104 68 -36 -104 -68 -36 -104
4 16 12.8882 1.6965 -104 15 -26 -104 -15 -26 -104 -12.8882 1.6965 -104
3 16 -12.8882 1.6965 -104 0 13 -104 12.8882 1.6965 -104
4 16 64 -36 -100 -64 -36 -100 -68 -36 -104 68 -36 -104
1 16 0 0 -114 0 0 5.5 5.5 0 0 0 10 0 4-4cylo.dat
1 16 0 0 -118 0 0 7 7 0 0 0 1 0 4-4disc.dat
1 16 0 0 -114 0 0 7 7 0 0 0 -4 0 4-4cylc.dat
3 16 40 68 95 -40 68 95 0 13 98.510626
4 16 68 -36 104 15 -26 104 -15 -26 104 -68 -36 104
4 16 -15 -26 104 15 -26 104 12.8882 1.6965 104 -12.8882 1.6965 104
3 16 0 13 104 -12.8882 1.6965 104 12.8882 1.6965 104
4 16 -68 -36 104 -64 -36 100 64 -36 100 68 -36 104
1 16 0 0 114 0 0 5.5 5.5 0 0 0 -10 0 4-4cylo.dat
1 16 0 0 118 0 0 7 7 0 0 0 -1 0 4-4disc.dat
1 16 0 0 114 0 0 7 7 0 0 0 4 0 4-4cylc.dat
1 16 0 -36 0 0 0 68 0 1 0 -104 0 0 recte4.dat
1 16 0 -36 0 0 0 64 0 1 0 -100 0 0 recte4.dat
0 // Inside
4 16 40 52 28.5 40 52 -28.5 64 -36 -28.5 64 -36 28.5
2 24 40 52 28.5 40 52 -28.5
2 24 -40 52 28.5 -40 52 -28.5
4 16 -40 52 -28.5 -40 52 28.5 -64 -36 28.5 -64 -36 -28.5
3 16 40 52 -92 -40 52 -92 0 9 -95.9091
3 16 0 9 -100 -8.9226 1.1745 -100 8.9226 1.1745 -100
4 16 -11 -36 -100 11 -36 -100 8.9226 1.1745 -100 -8.9226 1.1745 -100
3 16 -40 52 92 40 52 92 0 9 95.9091
3 16 -8.9226 1.1745 100 0 9 100 8.9226 1.1745 100
4 16 8.9226 1.1745 100 11 -36 100 -11 -36 100 -8.9226 1.1745 100
2 24 -40 52 92 40 52 92
2 24 40 52 -92 -40 52 -92
4 16 40 52 92 -40 52 92 -40 52 -92 40 52 -92Status
Needs 1 More Vote (CN)
Current Votes:
Peter Blomberg [WUIt]
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine 41: 3 16 -40 68 -95 40 68 -95 0 13 -98.510626Line 50: 3 16 40 68 95 -40 68 95 0 13 98.510626
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Gerald Lasser [GeraldLasser]
initially submitted the part.
2025-02-25 23:38:58
Gerald Lasser [GeraldLasser]
edited the part header.
2025-02-26 07:51:04
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2025-02-26 09:21:35
missed two edges at the inside
Peter Blomberg [WUIt]
posted a vote of Certify
2025-10-18 11:10:12
keywords:
to
description:
Duplo Train Tipper Holder 2 x 6to
Duplo Train Tipper 2 x 5 with Corrugated Slanted Sides
