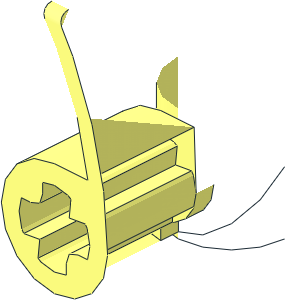

~Technic Panel Curved 3 x 2 x 1 without Top and Front - Half

File Header:

0 ~Technic Panel Curved 3 x 2 x 1 without Top and Front - Half
0 Name: s\71682s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-02-26 [GeraldLasser] Subfiled from s\71682s02 by Jens Brühl
