File Detail parts/s/3634s01.dat

Unofficial File parts/s/3634s01.dat

File Header:

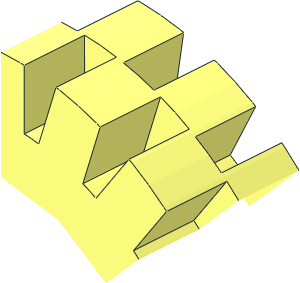

0 ~Tyre 10/130 x 17 Offset Inside Eigth
0 Name: s\3634s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3634s02.dat

0 // Sidewalls
1 16 0 0 -17 0 0 32 -32 0 0 0 1 0 1-8tndis.dat
4 16 6.5688 -41.4834 -17 5 -41.669 -17 0 -42 -17 0 -32 -17
4 16 6.5688 -41.4834 -17 0 -32 -17 17.632 -38.085 -17 8.121 -41.175 -17
4 16 0 -32 -17 22.6272 -32 -17 19.068 -37.422 -17 17.632 -38.085 -17
4 16 28.537 -30.771 -17 20.447 -36.649 -17 19.068 -37.422 -17 22.6272 -32 -17
4 16 28.537 -30.771 -17 22.6272 -32 -17 22.6272 -22.6272 -17 29.6982 -29.6982 -17

1 16 0 0 9 0 0 39 -39 0 0 0 -1 0 1-8tang.dat
4 16 0 -42 9 1.58 -41.938 9 7.7571 -39 9 0 -39 9
4 16 14.9253 -36.0321 9 7.7571 -39 9 1.58 -41.938 9 11.457 -40.375 9
4 16 11.457 -40.375 9 12.978 -39.9462 9 14.463 -39.399 9 14.9253 -36.0321 9
4 16 14.463 -39.399 9 23.372 -34.856 9 22.0935 -33.0642 9 14.9253 -36.0321 9
4 16 23.372 -34.856 9 24.6876 -33.978 9 25.928 -32.999 9 22.0935 -33.0642 9
4 16 29.6982 -29.6982 9 27.5769 -27.5769 9 22.0935 -33.0642 9 25.928 -32.999 9

0 // inside ribs
2 24 1 -39 8 1 -23 8
4 16 1 -23 8 0 -24 8 0 -39 8 1 -39 8
3 16 1 -39 -14 1 -32 -14 1 -23 -6.8
4 16 1 -23 -6.8 1 -23 8 1 -39 8 1 -39 -14
2 24 0 -24 8 1 -23.8012 8
2 24 1 -23.8012 8 1 -23.8012 -6.8
2 24 1 -23.8012 -6.8 1 -32.8012 -14
2 24 1 -38.8012 8 0 -39 8
2 24 1 -38.8012 8 1 -38.8012 -14
2 24 1 -38.8012 -14 1 -32.8012 -14

1 16 15.5 -26.8468 8 4 0 .866 -6.9282 0 .5 0 -1 0 rect2p.dat
4 16 12.366 -19.4186 -6.8 12.366 -19.4186 8 20.366 -33.275 8 20.366 -33.275 -14
4 16 10.634 -20.4186 -6.8 18.634 -34.275 -14 18.634 -34.275 8 10.634 -20.4186 8
3 16 10.634 -20.4186 -6.8 15.134 -28.2128 -14 18.634 -34.275 -14
3 16 20.366 -33.275 -14 16.866 -27.2128 -14 12.366 -19.4186 -6.8
2 24 12.628 -19.8725 -6.8 12.628 -19.8725 8
2 24 12.628 -19.8725 -6.8 17.0511 -27.5334 -14
2 24 10.9617 -20.9861 -6.8 10.9617 -20.9861 8
2 24 15.3847 -28.6471 -14 10.9617 -20.9861 -6.8
2 24 20 -32.6407 8 20 -32.6407 -14
2 24 18.3334 -33.7544 8 18.3334 -33.7544 -14
2 24 20 -32.6407 8 18.3334 -33.7544 8
2 24 12.628 -19.8725 8 10.9617 -20.9861 8
2 24 20 -32.6407 -14 17.0511 -27.5334 -14
2 24 18.3334 -33.7544 -14 15.3847 -28.6471 -14

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/3634s02.dat (Needs More Votes)
No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-02-28 11:46:52

should the tread get separated? for an easier reusing in 574.dat...

Rene Rechthaler [Blechtaler]

submitted a new version of the part.

2025-03-01 11:56:28

subfiled the tread
