Unofficial File parts/s/3634s03.dat

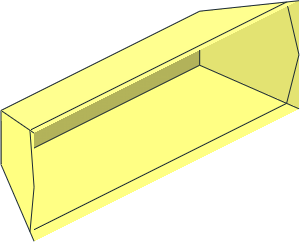

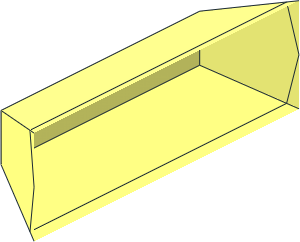

~Tyre 10/100 x 17 Inside Tooth
File Header:
0 ~Tyre 10/100 x 17 Inside Tooth 0 Name: s\3634s03.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-02-28 [Blechtaler] made from 3634a with intersection lines (to R22p16)
Show contents
1 16 19 0 0 0 1 0 0 0 -1 -4.5 0 0 rect.dat 4 16 19 1 4.5 22 2 6 22 2 -6 19 1 -4.5 4 16 19 -1 -4.5 22 -2 -6 22 -2 6 19 -1 4.5 2 24 19 -1 4.5 22 -2 6 2 24 19 1 4.5 22 2 6 4 16 19 1 4.5 19 -1 4.5 22 -2 6 22 2 6 2 24 19 -1 -4.5 22 -2 -6 2 24 19 1 -4.5 22 2 -6 4 16 22 -2 -6 19 -1 -4.5 19 1 -4.5 22 2 -6 2 24 21.627 1.8757 -5.8135 22 0 -6 2 24 21.627 1.8757 -5.8135 21.627 1.8757 5.8135 2 24 22 0 6 21.627 1.8757 5.8135 2 24 21.627 -1.8757 -5.8135 22 0 -6 2 24 21.627 -1.8757 5.8135 21.627 -1.8757 -5.8135 2 24 22 0 6 21.627 -1.8757 5.8135
Status:
Not releaseable Needs 2 More Votes (N) Needs 2 More Votes (N)
Current Votes:

None

Official parents and subparts
Part Events:
Rene Rechthaler [Blechtaler]
Part Header Editor
initially submitted the part.
2025-02-28 11:49:15
should this be a prim? or should there be multiple teeth in one file?
i would reuse this for the other toothed insides of the other tyres (2346, 3483)
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-02-28 12:04:56
could even be reused in some of the u9131.dat (old 132), the black ones have a toothed variant:
https://www.bricklink.com/v2/catalog/catalogitem.page?P=132teeth#T=C&C=11
Rene Rechthaler [Blechtaler]
Part Header Editor
edited the part header.
2025-02-28 12:15:15
Header Edits

history:
0 !HISTORY 1998-12-15 [PTadmin] Official Update 1998-10
0 !HISTORY 2007-08-31 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-03-31 [Philo] BFCed and optimized
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-03-31 [Blechtaler] added intersection lines (to R22p16)
to
0 !HISTORY 1998-12-15 [PTadmin] Official Update 1998-10
0 !HISTORY 2007-08-31 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-03-31 [Philo] BFCed and optimized
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01
0 !HISTORY 2025-02-28 [Blechtaler] added intersection lines (to R22p16)

Comment:
got a wrong date in the History
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2025-03-01 07:56:54
Would it be reusable in a tyre of another radius?
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-03-01 10:00:18
maybe, but as of now only for the classic family
(3483, 2346, 3634) and a variant of u9131
are rhere other tyres with these inside ribs?
the most modern tyres have a continuous inside rib...
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2025-03-03 11:47:37
used a wider base, its more conical now
used in 4 parts, rename/common subfile/prim?
Peter Blomberg [WUIt]
Part Header Editor
posted a vote of Certify.
2025-11-16 16:53:17
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2025-11-19 15:59:04
Magnus Forsberg [MagFors]
Part Library Admin
posted a vote of Hold.
2025-11-23 21:21:52
To me this is a new file. Please take ownership.
The old, incorrectly named subfiles should be emptied and obsoleted.
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-11-23 21:26:52
if obsoleted, what number should this one have? now it is used in 4 parts, not necessarily bound to 3634...
Magnus Forsberg [MagFors]
Part Library Admin
made the following comment.
2026-01-20 20:07:01
Please re-upload this design as s\3634s03.dat, as a new file. No history.
Rene Rechthaler [Blechtaler]
Part Header Editor
submitted a new version of the part.
2026-01-20 20:22:15
took ownership and removed old history, must be renamed to s\3634s03.dat now to obsolete the old s\3634a.dat
Magnus Forsberg [MagFors]
Part Library Admin
renamed the part.
2026-01-20 20:37:22
"parts/s/3634a.dat" to "parts/s/3634s03.dat"
Magnus Forsberg [MagFors]
Part Library Admin
edited the part header.
2026-01-20 21:29:58
Header Edits

description:
~Tyre 10/130 x 17 Inside Tooth
to
~Tyre 10/100 x 17 Inside Tooth
