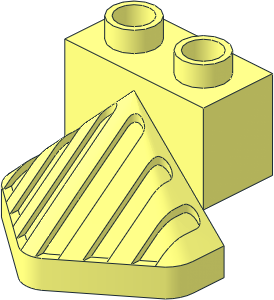

0 Duplo Train Steam Engine Cow Catcher
0 Name: 4550.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4550s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4550s01.dat
0 // 1 x 2 Brick
4 16 40 48 20 36 48 16 -36 48 16 -40 48 20
1 16 0 4 8.75 0 0 1 0 43 0 -7.25 0 0 box3u5p.dat
4 16 1 47 -1.5 -1 47 -1.5 -1 47 1.5 1 47 1.5
1 16 0 47 -10.75 1 0 0 0 -1 0 0 0 -9.25 rect3.dat
0 BFC INVERTNEXT
1 16 0 48 0 36 0 0 0 -44 0 0 0 16 box4-1.dat
1 16 0 48 0 40 0 0 0 -48 0 0 0 20 box4-1.dat
1 16 0 0 0 1 0 0 0 2.75 0 0 0 1 stug7-1x2.dat
3 16 0 8 -20 40 0 -20 -40 0 -20
4 16 -40 57.6667 -20 -1 47 -20 1 47 -20 40 57.6667 -20
4 16 40 57.6667 -20 3 57.6667 -23 -3 57.6667 -23 -40 57.6667 -20
2 24 -40 57.6667 -20 40 57.6667 -20
3 16 3 57.6667 -23 0 57.6667 -26 -3 57.6667 -23
3 16 0 60.5 -75 -1.5 60.5 -74.7399 1.5 60.5 -74.7399
4 16 1.5 60.5 -74.7399 -1.5 60.5 -74.7399 -1.5 49.8469 -62.4912 1.5 49.8469 -62.4912
4 16 1.5 49.8469 -62.4912 -1.5 49.8469 -62.4912 -1.5 38.4739 -49.3009 1.5 38.4739 -49.3009
4 16 1.5 18.1891 -25.5365 1.5 38.4739 -49.3009 -1.5 38.4739 -49.3009 -1.5 18.1891 -25.5365
5 24 0 75 -82 0 60 -82 -2.3411 60 -81.7694 2.3411 60 -81.7694
5 24 -1.5 60.5 -74.7399 1.5 60.5 -74.7399 0 60.5 -75 -1.5 49.8469 -62.4912
5 24 0 63 -79 0 75 -79 1.7558 75 -78.8271 -1.7558 75 -78.8271
5 24 -1.5 38.4739 -49.3009 1.5 38.4739 -49.3009 -1.5 18.1891 -25.5365 1.5 49.8469 -62.4912
5 24 -1.5 49.8469 -62.4912 1.5 49.8469 -62.4912 1.5 60.5 -74.7399 -1.5 38.4739 -49.3009
5 24 0 60.5 -75 0 63 -75 1.5 63 -74.7399 -1.5 63 -74.7399
5 24 0 60 -82 0 8 -20 2.3411 60 -81.7694 -2.3411 60 -81.7694
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Hold |
Official parents and subparts
Part Events:
2025-03-01 22:52:54
2025-03-01 23:13:22
2025-03-01 23:35:36
I do not have the 2312 bases, but the hook at the bases in the library are shorter than the ones you borrowed me
2025-03-02 00:13:56
maybe that hook end is wrong, because i have other 2x6 bases and all hooks are the same...
4559 2x6 train base
2312 2x6 car base with a different bottom (without the 2x2 studholder, cant connect )
4883 even older 2x6 with closed hitch end (same open bottom) (bottom says Duplo (R) and LegoA/S | Interlego AS)
looks like the 2312 hook is too short.
hook centre is 30 LDU from the wall, hitch centre 20, when connected the car bases are 50 LDU apart.
movable train hitch is longer, these are 60 LDU apart...
4559 2x6 train base
2312 2x6 car base with a different bottom (without the 2x2 studholder, cant connect )
4883 even older 2x6 with closed hitch end (same open bottom) (bottom says Duplo (R) and LegoA/S | Interlego AS)
looks like the 2312 hook is too short.
hook centre is 30 LDU from the wall, hitch centre 20, when connected the car bases are 50 LDU apart.
movable train hitch is longer, these are 60 LDU apart...
2025-03-02 22:19:04
after further study: 2312 is correct, but I dont have them
is the cutout for a R10 30LDU from the end?
is the cutout for a R10 30LDU from the end?
2025-03-02 22:42:40
the cutout follows this circle
1 16 0 48 -46 12 0 0 0 1 0 0 0 12 4-4cylo.dat
1 16 0 48 -46 12 0 0 0 1 0 0 0 12 4-4cylo.dat
2025-03-02 22:53:46
I need to movethe cutout for the hook a bit forward
Creative Commons Attribution License information
This part is copyright © Gerald Lasser
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
http://www.peeron.com/inv/sets/2223-1
this base for example: https://library.ldraw.org/parts/2032
if you do the train bases, i think you can reuse the solid hook... (prim/subpart?)
the clip is movable in the train parts, but all of them use the same (6L, 8L, loco)
