Official File parts/7068.dat
Part Attributes:
File Header:

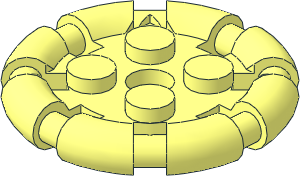

0 Plate 2 x 2 with Rod Frame Round
0 Name: 7068.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2025-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-03-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-03-01 [GeraldLasser] File preparation for LDraw Parts Tracker
0 !HISTORY 2025-03-30 [OrionP] Official Update 2025-03
Show contents
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4h.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7068s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\7068s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\7068s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\7068s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\7068s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\7068s01.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\7068s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\7068s01.dat
1 16 4 2 -30 0 -8 0 4 0 0 0 0 4 4-4cylo.dat
1 16 -18.3848 2 -24.0416 0 -5.65685 -2.82843 -4 0 0 0 5.65685 -2.82843 3-4cylo.dat
1 16 -30 2 -4 0 0 4 4 0 0 0 8 0 4-4cylo.dat
1 16 -24.0416 2 18.3848 0 5.65685 -2.82843 -4 0 0 0 5.65685 2.82843 3-4cylo.dat
1 16 -4 2 30 0 8 0 4 0 0 0 0 -4 4-4cylo.dat
1 16 18.3848 2 24.0416 0 5.65685 2.82843 -4 0 0 0 -5.65685 2.82843 3-4cylo.dat
1 16 30 2 4 0 0 -4 4 0 0 0 -8 0 4-4cylo.dat
1 16 24.0416 2 -18.3848 0 -5.65685 2.82843 -4 0 0 0 -5.65685 -2.82843 3-4cylo.dat
3 16 -20.661 -1.8448 -20.661 -24.0417 -2 -18.3848 -18.3848 -2 -24.0416
3 16 -20.66 .4692 -16.54 -20.661 .469 -20.661 -16.54 .4692 -20.66
4 16 -21.2132 2 -15.5563 -20.66 .4692 -16.54 -16.54 .4692 -20.66 -15.5564 2 -21.2132
2 24 -20.66 .4692 -16.54 -16.54 .4692 -20.66
5 24 -24.0417 -2 -18.3848 -18.3848 -2 -24.0416 -22.9592 -1.6956 -17.3024 -25.1241 -1.6956 -19.4672
5 24 -15.5564 2 -21.2132 -21.2132 2 -15.5563 -21.4285 3.5308 -15.7716 -21.4284 .4692 -15.7716
3 16 -20.661 -1.8448 20.661 -18.3848 -2 24.0417 -24.0416 -2 18.3848
3 16 -16.54 .4692 20.66 -20.661 .469 20.661 -20.66 .4692 16.54
4 16 -15.5563 2 21.2132 -16.54 .4692 20.66 -20.66 .4692 16.54 -21.2132 2 15.5564
2 24 -16.54 .4692 20.66 -20.66 .4692 16.54
5 24 -18.3848 -2 24.0417 -24.0416 -2 18.3848 -17.3024 -1.6956 22.9592 -19.4672 -1.6956 25.1241
5 24 -21.2132 2 15.5564 -15.5563 2 21.2132 -15.7716 3.5308 21.4285 -15.7716 .4692 21.4284
3 16 20.661 -1.8448 20.661 24.0417 -2 18.3848 18.3848 -2 24.0416
3 16 20.66 .4692 16.54 20.661 .469 20.661 16.54 .4692 20.66
4 16 21.2132 2 15.5563 20.66 .4692 16.54 16.54 .4692 20.66 15.5564 2 21.2132
2 24 20.66 .4692 16.54 16.54 .4692 20.66
5 24 24.0417 -2 18.3848 18.3848 -2 24.0416 22.9592 -1.6956 17.3024 25.1241 -1.6956 19.4672
5 24 15.5564 2 21.2132 21.2132 2 15.5563 21.4285 3.5308 15.7716 21.4284 .4692 15.7716
3 16 20.661 -1.8448 -20.661 18.3848 -2 -24.0417 24.0416 -2 -18.3848
3 16 16.54 .4692 -20.66 20.661 .469 -20.661 20.66 .4692 -16.54
4 16 15.5563 2 -21.2132 16.54 .4692 -20.66 20.66 .4692 -16.54 21.2132 2 -15.5564
2 24 16.54 .4692 -20.66 20.66 .4692 -16.54
5 24 18.3848 -2 -24.0417 24.0416 -2 -18.3848 17.3024 -1.6956 -22.9592 19.4672 -1.6956 -25.1241
5 24 21.2132 2 -15.5564 15.5563 2 -21.2132 15.7716 3.5308 -21.4285 15.7716 .4692 -21.4284
2 24 -20.661 .469 -20.661 -20.661 -1.8448 -20.661
2 24 -20.661 .469 20.661 -20.661 -1.8448 20.661
2 24 20.661 .469 -20.661 20.661 -1.8448 -20.661
2 24 20.661 .469 20.661 20.661 -1.8448 20.661
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2025-03-02 11:59:57
2025-03-21 14:09:47
!HELP?
added conds in s01
added edged
adapted geometry so that some conds are not required in s01
the overhanging stud is indeed strange but we had it at the rounded palted that came with super mario, I do not have the real part, the BI has an overhang
added edged
adapted geometry so that some conds are not required in s01
the overhanging stud is indeed strange but we had it at the rounded palted that came with super mario, I do not have the real part, the BI has an overhang
2025-03-21 14:26:57
@willy 75937 also has an overhang at the studs
@jeff: what do you need a help for?
@jeff: what do you need a help for?
2025-03-21 14:37:05
angle
2025-03-21 20:49:12
2025-03-22 03:33:50
There's a stray
"0 // Needs Work: Clean necessary"
comment...
"0 // Needs Work: Clean necessary"
comment...
rmoved "needs work" comment
2025-03-22 10:28:48
2025-03-23 13:40:24
2025-03-24 16:53:14
2025-03-30 05:49:24
Release 2025-03
