File Detail p/filletcyle.dat

Unofficial File p/filletcyle.dat

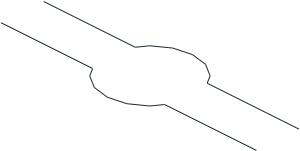

Underside Reinforcement Fillet with Cylinder - Edge

File Header:

0 Underside Reinforcement Fillet with Cylinder - Edge
0 Name: filletcyle.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 0 0 -2 0 -1 0 2 0 0 1-8edge.dat
1 16 0 0 0 0 0 2 0 -1 0 2 0 0 1-8edge.dat
1 16 0 0 0 0 0 -2 0 -1 0 -2 0 0 1-8edge.dat
1 16 0 0 0 0 0 2 0 -1 0 -2 0 0 1-8edge.dat
2 24 1.4142 0 1.4142 1.691 0 1
2 24 -1.691 0 1 -1.4142 0 1.4142
2 24 1.691 0 -1 1.4142 0 -1.4142
2 24 -1.4142 0 -1.4142 -1.691 0 -1

2 24 -6 0 -1 -1.691 0 -1
2 24 -1.691 0 1 -6 0 1
2 24 6 0 -1 1.691 0 -1
2 24 1.691 0 1 6 0 1

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-03-06 14:22:42
