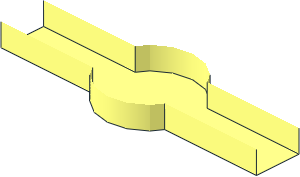

Underside Reinforcement Fillet with Cylinder - without Top Edge

File Header:

0 Underside Reinforcement Fillet with Cylinder - without Top Edge
0 Name: filletcyla.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 0 0 0 0 -2 0 -1 0 2 0 0 1-8cyli.dat
1 16 0 0 0 0 0 2 0 -1 0 2 0 0 1-8cyli.dat
1 16 0 0 0 0 0 -2 0 -1 0 2 0 0 1-8edge.dat
1 16 0 0 0 0 0 2 0 -1 0 2 0 0 1-8edge.dat
1 16 0 0 0 0 0 -2 0 -1 0 2 0 0 1-8chrd.dat
1 16 0 0 0 0 0 2 0 -1 0 2 0 0 1-8chrd.dat
4 16 -1.4142 0 1.4142 -1.691 0 1 -1.691 -1 1 -1.4142 -1 1.4142
4 16 1.691 0 1 1.4142 0 1.4142 1.4142 -1 1.4142 1.691 -1 1
2 24 1.4142 0 1.4142 1.691 0 1
2 24 -1.691 0 1 -1.4142 0 1.4142
5 24 -1.4142 -1 1.4142 -1.4142 0 1.4142 -.7654 0 1.8478 -1.691 0 1
5 24 1.4142 -1 1.4142 1.4142 0 1.4142 .7654 0 1.8478 1.691 0 1

1 16 0 0 0 0 0 -2 0 -1 0 -2 0 0 1-8cyli.dat
1 16 0 0 0 0 0 2 0 -1 0 -2 0 0 1-8cyli.dat
1 16 0 0 0 0 0 -2 0 -1 0 -2 0 0 1-8edge.dat
1 16 0 0 0 0 0 2 0 -1 0 -2 0 0 1-8edge.dat
1 16 0 0 0 0 0 -2 0 -1 0 -2 0 0 1-8chrd.dat
1 16 0 0 0 0 0 2 0 -1 0 -2 0 0 1-8chrd.dat
4 16 -1.691 -1 -1 -1.691 0 -1 -1.4142 0 -1.4142 -1.4142 -1 -1.4142
4 16 1.4142 -1 -1.4142 1.4142 0 -1.4142 1.691 0 -1 1.691 -1 -1
2 24 1.691 0 -1 1.4142 0 -1.4142
2 24 -1.4142 0 -1.4142 -1.691 0 -1
5 24 -1.4142 0 -1.4142 -1.4142 -1 -1.4142 -.7654 0 -1.8478 -1.691 0 -1
5 24 1.4142 0 -1.4142 1.4142 -1 -1.4142 .7654 0 -1.8478 1.691 0 -1

1 16 -3.8455 -1 0 2.1545 0 0 0 1 0 0 0 1 box3u6a.dat
1 16 3.8455 -1 0 -2.1545 0 0 0 1 0 0 0 1 box3u6a.dat
2 24 6 0 1 6 0 -1
2 24 -6 0 -1 -6 0 1

4 16 -1.4142 0 -1.4142 -1.691 0 -1 -1.691 0 1 -1.4142 0 1.4142
4 16 0 0 -2 -1.4142 0 -1.4142 -1.4142 0 1.4142 0 0 2
4 16 0 0 -2 0 0 2 1.4142 0 1.4142 1.4142 0 -1.4142
4 16 1.691 0 -1 1.4142 0 -1.4142 1.4142 0 1.4142 1.691 0 1
