Official File parts/s/6611s01.dat

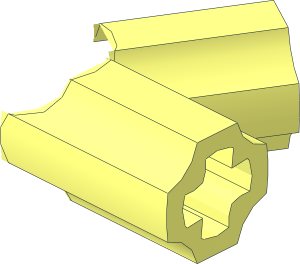

~Technic Angle Connector 4-Way 60 Degree Half
File Header:
0 ~Technic Angle Connector 4-Way 60 Degree Half 0 Name: s\6611s01.dat 0 Author: Philippe Hurbain [Philo] 0 !LDRAW_ORG Subpart UPDATE 2025-05 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-05-28 [OrionP] Official Update 2025-05
Show contents
1 16 30 0 0 0 -20 0 1 0 0 0 0 1 axl3hol8.dat 1 16 30 0 0 0 -1 0 1 0 0 0 0 1 axl3hol9.dat 1 16 30 0 0 0 -1 0 1 0 0 0 0 1 axl3hol2.dat 1 16 10 0 0 0 -1 0 1 0 0 0 0 1 axl3hol9.dat 1 16 10 0 0 0 -1 0 1 0 0 0 0 1 axl3hol2.dat 1 16 10 0 0 0 -1 0 6 0 0 0 0 6 4-4disc.dat 1 16 30 0 0 0 -1 0 1 0 0 0 0 1 axl3ho10.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6611s02.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6611s03.dat 1 16 0 0 0 0.5 0 -0.86603 0 1 0 0.86603 0 0.5 s\6611s02.dat 1 16 0 0 0 0.5 0 0.86603 0 -1 0 0.86603 0 -0.5 s\6611s02.dat 1 16 15 0 25.9808 0 -10 -0.86603 1 0 0 0 -17.32051 0.5 axl3hol8.dat 1 16 15 0 25.9808 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol9.dat 1 16 15 0 25.9808 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol2.dat 1 16 15 0 25.9808 0 -1 -0.86603 1 0 0 0 0 0.5 axl3ho10.dat 2 24 8.3151 8.4985 3.4443 7.673 6.1799 4.4051 2 24 7.6498 6.1799 4.4397 7.0544 8.4993 5.3307 2 24 1.0938 8.5 8.7825 3.4443 8.5 8.3151 2 24 0.0983 6.1799 8.9805 1.0938 8.4993 8.7825 2 24 6.3639 8.5 6.3639 7.0544 8.5 5.3306 2 24 3.4443 8.5 8.3151 6.3639 8.5 6.3639 2 24 8.3152 8.5 -3.444 9 8.5 0 2 24 8.3152 8.5 3.444 9 8.5 0 2 24 15.1102 1.1543 8.7237 15.11 -1.1543 8.724 2 24 7.673 -6.1799 4.4051 8.3151 -8.4985 3.4443 2 24 7.0544 -8.4993 5.3307 7.6498 -6.1799 4.4397 2 24 3.4443 -8.5 8.3151 1.0938 -8.5 8.7825 2 24 1.0938 -8.4993 8.7825 0.0983 -6.1799 8.9805 2 24 7.0544 -8.5 5.3306 6.3639 -8.5 6.3639 2 24 6.3639 -8.5 6.3639 3.4443 -8.5 8.3151 2 24 9 -8.5 0 8.3152 -8.5 -3.444 2 24 9 -8.5 0 8.3152 -8.5 3.444 2 24 8.3151 8.4993 -3.4443 7.6734 6.1803 -4.4046 2 24 6.3639 4.3288 -6.3639 3.4443 3.5203 -8.3151 2 24 6.4869 4.4051 -6.1799 6.3639 4.3288 -6.3639 2 24 7.6734 6.1803 -4.4046 6.4869 4.4051 -6.1799 2 24 7.6734 -6.1803 -4.4046 8.3151 -8.4993 -3.4443 2 24 3.4443 -3.5203 -8.3151 6.3639 -4.3288 -6.3639 2 24 6.3639 -4.3288 -6.3639 6.4869 -4.4051 -6.1799 2 24 6.4869 -4.4051 -6.1799 7.6734 -6.1803 -4.4046 2 24 3.4443 -3.5203 -8.3151 2.5195 -3.444 -8.499 2 24 2.5182 3.4442 -8.4993 3.4443 3.5203 -8.3151 2 24 2.5182 3.4442 -8.4993 1.3882 1.1543 -8.724 2 24 1.3895 -1.1549 -8.7237 2.5195 -3.444 -8.499 2 24 1.3895 -1.1549 -8.7237 1.3882 1.1543 -8.724 1 16 5 0 8.6603 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol9.dat 1 16 5 0 8.6603 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol2.dat 1 16 5 0 8.6603 0 -1 -5.19615 6 0 0 0 0 3 4-4disc.dat 2 24 .098279 -6.179902 8.980457 0 -6.085012 9 2 24 .098279 6.179902 8.980457 0 6.085012 9
Status:
Official Official
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 20: 1 16 0 0 0 0.5 0 -0.86603 0 1 0 0.86603 0 0.5 s\6611s02.dat
    Line 21: 1 16 0 0 0 0.5 0 0.86603 0 -1 0 0.86603 0 -0.5 s\6611s02.dat
    Line 22: 1 16 15 0 25.9808 0 -10 -0.86603 1 0 0 0 -17.32051 0.5 axl3hol8.dat
    Line 23: 1 16 15 0 25.9808 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol9.dat
    Line 24: 1 16 15 0 25.9808 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol2.dat
    Line 25: 1 16 15 0 25.9808 0 -1 -0.86603 1 0 0 0 0 0.5 axl3ho10.dat
    Line 56: 1 16 5 0 8.6603 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol9.dat
    Line 57: 1 16 5 0 8.6603 0 -1 -0.86603 1 0 0 0 0 0.5 axl3hol2.dat
    Line 58: 1 16 5 0 8.6603 0 -1 -5.19615 6 0 0 0 0 3 4-4disc.dat
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 59: 2 24 .098279 -6.179902 8.980457 0 -6.085012 9
    Line 60: 2 24 .098279 6.179902 8.980457 0 6.085012 9
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
