File Detail parts/s/30648s02.dat

Unofficial File parts/s/30648s02.dat

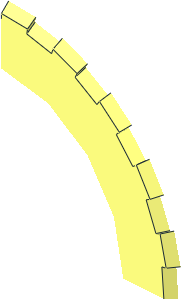

~Tyre 14/ 25 x 17 Shallow Staggered Treads - Quarter Sidewall

File Header:

0 ~Tyre 14/ 25 x 17 Shallow Staggered Treads - Quarter Sidewall
0 Name: s\30648s02.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-03-08 [Blechtaler] subfiled from 30648s01

Show contents

1 16 0 0 -17 21 0 0 0 0 -21 0 1 0 1-8tndis.dat
1 16 0 0 -17 0 0 21 -21 0 0 0 1 0 1-8tndis.dat
4 16 0 -28 -17 0 -21 -17 8.652 -26.631 -17 4.379 -27.655 -17
4 16 12.712 -24.948 -17 8.652 -26.631 -17 0 -21 -17 14.849 -21 -17
4 16 16.458 -22.652 -17 12.712 -24.948 -17 14.849 -21 -17 19.799 -19.799 -17
4 16 19.799 -19.799 -17 14.849 -21 -17 14.849 -14.849 -17 21 -14.849 -17
4 16 22.652 -16.458 -17 19.799 -19.799 -17 21 -14.849 -17 24.948 -12.712 -17
4 16 24.948 -12.712 -17 21 -14.849 -17 21 0 -17 26.631 -8.652 -17
4 16 27.655 -4.379 -17 26.631 -8.652 -17 21 0 -17 28 0 -17

4 16 0 -28.75 -17 0 -28 -17 4.379 -27.655 -17 4.496 -28.396 -17
4 16 8.884 -27.344 -17 8.652 -26.631 -17 12.712 -24.948 -17 13.052 -25.616 -17
4 16 16.899 -23.259 -17 16.458 -22.652 -17 19.799 -19.799 -17 20.329 -20.329 -17
4 16 23.259 -16.899 -17 22.652 -16.458 -17 24.948 -12.712 -17 25.616 -13.052 -17
4 16 27.344 -8.884 -17 26.631 -8.652 -17 27.655 -4.379 -17 28.396 -4.496 -17

1 16 0 -29 -16.375 0 1 0 .375 0 .625 0 0 -.625 rect3.dat
1 16 4.5355 -28.643 -16.375 .0585 0 -.098 -.3705 -1 .6175 0 0 -.625 rect3.dat
1 16 8.961 -27.582 -16.375 -.116 0 -.193 .3565 1 .5945 0 0 -.625 rect3.dat
1 16 13.166 -25.839 -16.375 .17 0 -.284 -.334 -1 .557 0 0 -.625 rect3.dat
1 16 17.046 -23.461 -16.375 -.2205 0 -.3675 .3035 1 .5055 0 0 -.625 rect3.dat
1 16 20.506 -20.506 -16.375 .265 0 -.442 -.265 -1 .442 0 0 -.625 rect3.dat
1 16 23.461 -17.046 -16.375 -.3035 0 -.5055 .2205 1 .3675 0 0 -.625 rect3.dat
1 16 25.839 -13.166 -16.375 .334 0 -.557 -.17 -1 .284 0 0 -.625 rect3.dat
1 16 27.582 -8.961 -16.375 -.3565 0 -.5945 .116 1 .193 0 0 -.625 rect3.dat
1 16 28.643 -4.5355 -16.375 .3705 0 -.6175 -.0585 -1 .098 0 0 -.625 rect3.dat

2 24 13.052 -25.616 -17 8.884 -27.344 -17
2 24 26.631 -8.652 -17 24.948 -12.712 -17
2 24 25.616 -13.052 -17 23.259 -16.899 -17
2 24 28.396 -4.496 -17 27.344 -8.884 -17
2 24 28 0 -17 27.655 -4.379 -17
2 24 20.329 -20.329 -17 16.899 -23.259 -17
2 24 16.458 -22.652 -17 12.712 -24.948 -17
2 24 8.652 -26.631 -17 4.379 -27.655 -17
2 24 4.496 -28.396 -17 0 -28.75 -17
2 24 22.652 -16.458 -17 19.799 -19.799 -17

4 16 4.692 -29.631 -15.75 0 -30 -15.75 0 -28.75 -17 4.496 -28.396 -17
4 16 9.038 -27.82 -15.75 4.575 -28.89 -15.75 4.379 -27.655 -17 8.652 -26.631 -17
4 16 13.62 -26.73 -15.75 9.27 -28.533 -15.75 8.884 -27.344 -17 13.052 -25.616 -17
4 16 13.28 -26.062 -15.75 12.712 -24.948 -17 16.458 -22.652 -17 17.193 -23.663 -15.75
4 16 17.634 -24.27 -15.75 16.899 -23.259 -17 20.329 -20.329 -17 21.213 -21.213 -15.75
4 16 20.683 -20.683 -15.75 19.799 -19.799 -17 22.652 -16.458 -17 23.663 -17.193 -15.75
4 16 26.73 -13.62 -15.75 24.27 -17.634 -15.75 23.259 -16.899 -17 25.616 -13.052 -17
4 16 26.062 -13.28 -15.75 24.948 -12.712 -17 26.631 -8.652 -17 27.82 -9.038 -15.75
4 16 28.533 -9.27 -15.75 27.344 -8.884 -17 28.396 -4.496 -17 29.631 -4.692 -15.75
4 16 28 0 -17 29.25 0 -15.75 28.89 -4.575 -15.75 27.655 -4.379 -17

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2025-03-08 17:22:41

new common subpart
