Official File parts/30387.dat
Part Attributes:
File Header:

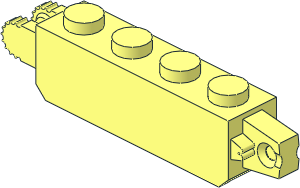

0 Hinge Brick 1 x 4 Locking Double, Two Finger End with 9 Teeth
0 Name: 30387.dat
0 Author: John Van Zwieten [jvan]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2002-04-12 [fwcain] fixed "gaps" (was actually overlapping triangles)...
0 !HISTORY 2002-06-11 [PTadmin] Official Update 2002-03
0 !HISTORY 2003-08-17 [technog] BFC'd, made use of subpart
0 !HISTORY 2004-03-02 [PTadmin] Official Update 2004-01
0 !HISTORY 2004-06-20 [cwdee] Correct chamfers
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-06-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2021-02-16 [cwdee] Update description
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30387s01.dat
4 16 -40 0 -10 -36 24 -10 36 24 -10 40 0 -10
3 16 36 24 -10 40 20 -10 40 0 -10
3 16 -40 20 -10 -36 24 -10 -40 0 -10
4 16 40 0 10 36 24 10 -36 24 10 -40 0 10
3 16 40 20 10 36 24 10 40 0 10
3 16 -36 24 10 -40 20 10 -40 0 10
0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © John Van Zwieten
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Franklin W. Cain,
Donald Sutter,
Chris Dee,
Orion Pobursky,
