Official File parts/30387p02.dat
Part Attributes:
Base Part: 30387.dat
File Header:

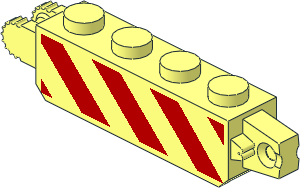

0 Hinge Brick 1 x 4 Locking Double, Two Finger End with 9 Teeth with Red Stripes Pattern
0 Name: 30387p02.dat
0 Author: Franklin W. Cain [fwcain]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS 1 and 2 fingers on ends, Set 6477
0 !CMDLINE -C15
0 !HISTORY 2002-06-11 [PTadmin] Official Update 2002-03
0 !HISTORY 2003-08-17 [technog] BFC'd, made use of subpart
0 !HISTORY 2004-03-02 [PTadmin] Official Update 2004-01
0 !HISTORY 2004-07-17 [cwdee] Corrected chamfers
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-06-09 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2021-02-16 [cwdee] Update description
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
