Unofficial File parts/7261.dat
Part Attributes:
File Header:

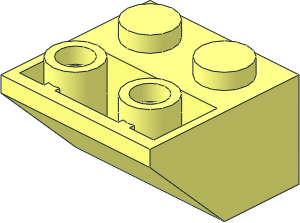

0 Slope Brick 45 2 x 2 Inverted with Inner Stopper Ring without Bottom Stud
0 Name: 7261.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2025-03-10 [Blechtaler] Made from 3660a and b
Show contents
1 16 0 14 -20 0 0 20 -10 -1 0 -10 0 0 rect2p.dat
1 16 0 24 0 20 0 0 0 -1 0 0 0 -10 recte3.dat
1 16 0 12 10 20 0 0 0 0 12 0 -1 0 rect.dat
1 16 0 2 -30 20 0 0 0 0 2 0 1 0 rect.dat
1 16 0 10 -10 18 0 0 0 0 -10 0 1 0 rect.dat
2 24 20 0 -30 20 0 10
2 24 -20 0 -30 -20 0 10
2 24 -18 0 -10 -18 0 -27
2 24 18 0 -27 18 0 -10
4 16 20 4 -30 20 24 -10 20 24 10 20 0 10
3 16 20 4 -30 20 0 10 20 0 -30
4 16 -20 4 -30 -20 0 10 -20 24 10 -20 24 -10
3 16 -20 4 -30 -20 0 -30 -20 0 10
4 16 18 0 -10 18 20 -10 18 3 -27 18 0 -27
4 16 -18 0 -10 -18 0 -27 -18 3 -27 -18 20 -10
4 16 18 0 -10 20 0 10 -20 0 10 -18 0 -10
4 16 -18 0 -10 -20 0 10 -20 0 -30 -18 0 -27
4 16 18 0 -27 20 0 -30 20 0 10 18 0 -10
4 16 16 24 6 -16 24 6 -20 24 10 20 24 10
4 16 -16 24 6 -16 24 -6 -20 24 -10 -20 24 10
4 16 -16 24 -6 16 24 -6 20 24 -10 -20 24 -10
4 16 16 24 -6 16 24 6 20 24 10 20 24 -10
0 BFC INVERTNEXT
1 16 0 24 0 16 0 0 0 -20 0 0 0 6 box5.dat
1 16 10 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 10 0 -20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 10 0 -20 1 0 0 0 4 0 0 0 1 stud2s2e.dat
1 16 10 4 -20 0 0 1 0 6 0 -1 0 0 stud2s2.dat
1 16 -10 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 -10 0 -20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -10 0 -20 1 0 0 0 4 0 0 0 1 stud2s2e.dat
1 16 -10 4 -20 0 0 1 0 6 0 -1 0 0 stud2s2.dat
1 16 10 10 -20 6 0 0 0 1 6 0 0 6 4-4ndis.dat
1 16 -10 10 -20 6 0 0 0 1 6 0 0 6 4-4ndis.dat
1 16 10 10 -20 3.5 0 0 0 1 3.5 0 0 3.5 4-4disc.dat
1 16 -10 10 -20 3.5 0 0 0 1 3.5 0 0 3.5 4-4disc.dat
1 16 14.75 1.5 -27 0 0 3.25 1.5 0 0 0 -1 0 rect.dat
1 16 -14.75 1.5 -27 0 0 3.25 1.5 0 0 0 -1 0 rect.dat
1 16 0 1.5 -27 0 0 8.5 1.5 0 0 0 -1 0 rect.dat
2 24 -18 3 -27 -18 20 -10
2 24 18 3 -27 18 20 -10
2 24 8.5 4.2983 -25.7017 8.5 0 -25.7017
2 24 11.5 4.2983 -25.7017 11.5 0 -25.7017
2 24 11.5 4.2983 -25.7017 11.5 3 -27
2 24 8.5 3 -27 8.5 4.2983 -25.7017
2 24 8.5 0 -27 8.5 0 -25.7017
2 24 11.5 0 -27 11.5 0 -25.7017
2 24 11.5 0 -25.7017 10 0 -26
2 24 10 0 -26 8.5 0 -25.7017
2 24 -11.5 4.2983 -25.7017 -11.5 0 -25.7017
2 24 -8.5 4.2983 -25.7017 -8.5 0 -25.7017
2 24 -8.5 4.2983 -25.7017 -8.5 3 -27
2 24 -11.5 3 -27 -11.5 4.2983 -25.7017
2 24 -11.5 0 -27 -11.5 0 -25.7017
2 24 -8.5 0 -27 -8.5 0 -25.7017
2 24 -8.5 0 -25.7017 -10 0 -26
2 24 -10 0 -26 -11.5 0 -25.7017
3 16 16 4 -26 18 3 -27 16 10 -20
3 16 16 16 -14 18 20 -10 10 16 -14
3 16 10 16 -14 18 20 -10 4 16 -14
3 16 -4 16 -14 -18 20 -10 -10 16 -14
3 16 -10 16 -14 -18 20 -10 -16 16 -14
3 16 -16 10 -20 -18 3 -27 -16 4 -26
3 16 8.5 3 -27 10 4 -26 4 4 -26
3 16 -8.5 3 -27 -4 4 -26 -10 4 -26
3 16 20 0 -30 18 0 -27 11.5 0 -27
3 16 20 0 -30 11.5 0 -27 8.5 0 -27
3 16 -8.5 0 -27 -11.5 0 -27 -20 0 -30
3 16 -18 0 -27 -20 0 -30 -11.5 0 -27
3 16 10 0 -26 8.5 0 -25.7017 8.5 0 -27
3 16 -8.5 0 -25.7017 -10 0 -26 -8.5 0 -27
4 16 16 10 -20 18 3 -27 18 20 -10 16 16 -14
4 16 4 16 -14 18 20 -10 -18 20 -10 -4 16 -14
4 16 -18 3 -27 -16 10 -20 -16 16 -14 -18 20 -10
4 16 4 16 -14 -4 16 -14 -4 10 -20 4 10 -20
4 16 4 10 -20 -4 10 -20 -4 4 -26 4 4 -26
4 16 18 3 -27 16 4 -26 10 4 -26 11.5 3 -27
4 16 8.5 3 -27 4 4 -26 -4 4 -26 -8.5 3 -27
4 16 -10 4 -26 -16 4 -26 -18 3 -27 -11.5 3 -27
4 16 -20 0 -30 20 0 -30 8.5 0 -27 -8.5 0 -27
4 16 8.5 0 -25.7017 8.5 4.2983 -25.7017 8.5 3 -27 8.5 0 -27
4 16 11.5 0 -25.7017 10 0 -26 8.5 0 -27 11.5 0 -27
4 16 11.5 4.2983 -25.7017 11.5 0 -25.7017 11.5 0 -27 11.5 3 -27
4 16 -11.5 0 -25.7017 -11.5 4.2983 -25.7017 -11.5 3 -27 -11.5 0 -27
4 16 -10 0 -26 -11.5 0 -25.7017 -11.5 0 -27 -8.5 0 -27
4 16 -8.5 4.2983 -25.7017 -8.5 0 -25.7017 -8.5 0 -27 -8.5 3 -27
Status:
Needs 1 More Vote (CN)
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
Official parents and subparts
Part Events:
The area around the open studs should be like
4 13 17 -24 -27 17 -24 -9 -17 -24 -9 -17 -24 -27
The open studs are then connected with fillets like this
2 24 -8.5 -24 -27 -8.5 -24 -25.831
2 24 -11.5 -24 -25.831 -11.5 -24 -27
(only on the thin side of the slope)
4 13 17 -24 -27 17 -24 -9 -17 -24 -9 -17 -24 -27
The open studs are then connected with fillets like this
2 24 -8.5 -24 -27 -8.5 -24 -25.831
2 24 -11.5 -24 -25.831 -11.5 -24 -27
(only on the thin side of the slope)
2025-03-10 20:44:51
as stated in the history: made from the official part (but mixed)
none of the other slopes have fillets because the lip is aready tangential...
none of the other slopes have fillets because the lip is aready tangential...
2025-03-10 22:18:01
this is a new mold due to different properties of the transparent plastic.
the BI mesh has fillets.
https://heartlake.city/dat/7261.dat
Original BI Mesh of 3660 has no fillets

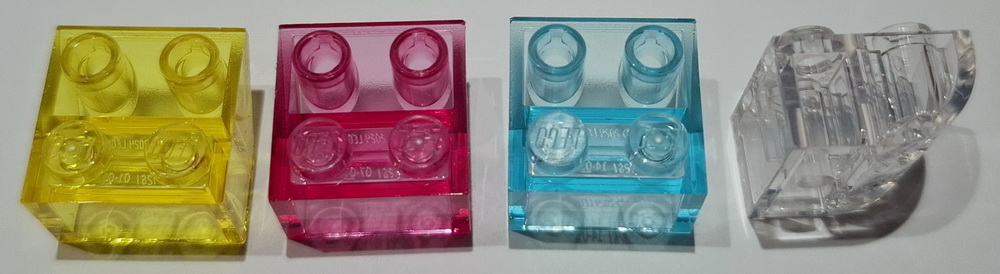

they are also visible in the pictures by Nicole as well
https://heartlake.city/Pics/7261_DB.jpg
the BI mesh has fillets.
https://heartlake.city/dat/7261.dat
Original BI Mesh of 3660 has no fillets
they are also visible in the pictures by Nicole as well
https://heartlake.city/Pics/7261_DB.jpg
2025-03-16 07:44:22
Header Edits
keywords:
to
description:
Slope Brick 45 2 x 2 Inverted with Inner Stopper Ring without Bottom Stud
to
Slope Brick 45 2 x 2 Inverted without Bottom Pin
with fillets (3LDU wide) to the lip (thinner)
forgot an edgeline, added some rects
Huge overkill not using a single plane under the studs... (yes the part is transparent, but it's not different from the bottom of studs.dat, or the fillets joining the stud cylinders...)
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
comes in trans-yellow -pink and -light blue...
