Official File parts/s/6497s01.dat

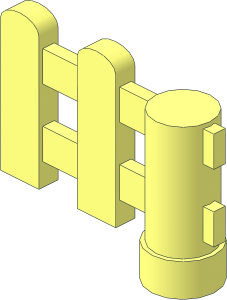

~Duplo Fence 1 x 6 x 2 Picket - Half
File Header:
0 ~Duplo Fence 1 x 6 x 2 Picket - Half 0 Name: s\6497s01.dat 0 Author: Peter Blomberg [WUIt] 0 !LDRAW_ORG Subpart UPDATE 2025-09 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 100 0 0 14 0 0 0 56 0 0 0 14 4-4cylc.dat 1 16 100 56 0 2 0 0 0 1 0 0 0 2 4-4ring7.dat 1 16 100 56 0 16 0 0 0 16 0 0 0 16 4-4cylo.dat 1 16 100 72 0 16 0 0 0 -1 0 0 0 -16 4-4ering.dat 0 BFC INVERTNEXT 1 16 100 4 0 9.75 0 0 0 56 0 0 0 9.75 4-4cylc.dat 1 16 100 60 0 3.25 0 0 0 -1 0 0 0 3.25 4-4ring3.dat 0 // horizontal outside 1 16 114 9.5 0 0 5 0 7.5 0 0 0 0 3 box5-4a.dat 1 16 114 17 0 -3 0 0 0 -15 0 0 0 3 boxjcyl4.dat 0 // exceptionally using 5 decimals to avoid microgap with boxjcyl4 vertices 3 16 114 17 -3 113.40345 17 -3 114 17 0 3 16 114 17 3 114 17 0 113.40345 17 3 2 24 114 17 0 113.40345 17 3 2 24 113.40345 17 -3 114 17 0 1 16 114 42.5 0 0 5 0 7.5 0 0 0 0 3 box5-4a.dat 1 16 114 50 0 -3 0 0 0 -15 0 0 0 3 boxjcyl4.dat 0 // exceptionally using 5 decimals to avoid microgap with boxjcyl4 vertices 3 16 114 50 -3 113.40345 50 -3 114 50 0 3 16 114 50 3 114 50 0 113.40345 50 3 2 24 114 50 0 113.40345 50 3 2 24 113.40345 50 -3 114 50 0 0 // horizontal between 1 16 30 9.5 0 0 20 0 7.5 0 0 0 0 3 box4.dat 1 16 70 9.5 0 0 16 0 7.5 0 0 0 0 3 box4o4a.dat 1 16 86 17 0 3 0 0 0 -15 0 0 0 3 boxjcyl4.dat 0 // exceptionally using 5 decimals to avoid microgap with boxjcyl4 vertices 3 16 86.59655 17 -3 86 17 -3 86 17 0 3 16 86 17 0 86 17 3 86.59655 17 3 2 24 86.59655 17 3 86 17 0 2 24 86 17 0 86.59655 17 -3 1 16 30 42.5 0 0 20 0 7.5 0 0 0 0 3 box4.dat 1 16 70 42.5 0 0 16 0 7.5 0 0 0 0 3 box4o4a.dat 1 16 86 50 0 3 0 0 0 -15 0 0 0 3 boxjcyl4.dat 0 // exceptionally using 5 decimals to avoid microgap with boxjcyl4 vertices 3 16 86.59655 50 -3 86 50 -3 86 50 0 3 16 86 50 0 86 50 3 86.59655 50 3 2 24 86.59655 50 3 86 50 0 2 24 86.59655 50 -3 86 50 0 0 // vertical 1 16 20 -4 0 10 0 0 0 65 0 0 0 5 box5-4a.dat 1 16 20 -4 -5 10 0 0 0 0 -6 0 10 0 2-4cylo.dat 1 16 20 -4 -5 10 0 0 0 0 -6 0 1 0 2-4chrd.dat 1 16 20 -4 5 10 0 0 0 0 -6 0 -1 0 2-4chrd.dat 1 16 60 -4 0 10 0 0 0 65 0 0 0 5 box5-4a.dat 1 16 60 -4 -5 10 0 0 0 0 -6 0 10 0 2-4cylo.dat 1 16 60 -4 -5 10 0 0 0 0 -6 0 1 0 2-4chrd.dat 1 16 60 -4 5 10 0 0 0 0 -6 0 -1 0 2-4chrd.dat 0 // stud holder on bottom 1 16 100 60 0 1 0 0 0 1 0 0 0 1 s\6497s02.dat 1 16 100 60 0 -1 0 0 0 1 0 0 0 1 s\6497s02.dat 1 16 100 60 0 1 0 0 0 1 0 0 0 -1 s\6497s02.dat 1 16 100 60 0 -1 0 0 0 1 0 0 0 -1 s\6497s02.dat 3 16 95.0249 72 -12.0107 104.9751 72 -12.0107 100 72 -16 4 16 95.0249 72 -12.0107 95.0249 60 -12.0107 104.9751 60 -12.0107 104.9751 72 -12.0107 4 16 104.9751 60 12.0107 95.0249 60 12.0107 95.0249 72 12.0107 104.9751 72 12.0107 3 16 104.9751 72 12.0107 95.0249 72 12.0107 100 72 16 2 24 95.0249 72 -12.0107 104.9751 72 -12.0107 2 24 95.0249 60 -12.0107 104.9751 60 -12.0107 2 24 104.9751 60 -12.0107 104.9751 72 -12.0107 2 24 95.0249 60 -12.0107 95.0249 72 -12.0107 2 24 104.9751 72 12.0107 95.0249 72 12.0107 2 24 104.9751 60 12.0107 95.0249 60 12.0107 2 24 104.9751 72 12.0107 104.9751 60 12.0107 2 24 95.0249 72 12.0107 95.0249 60 12.0107
Status:
Official Official
This part has the following warnings
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 114 17 -3 113.40345 17 -3 114 17 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 114 17 3 114 17 0 113.40345 17 3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 114 17 0 113.40345 17 3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 113.40345 17 -3 114 17 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 114 50 -3 113.40345 50 -3 114 50 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 114 50 3 114 50 0 113.40345 50 3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 114 50 0 113.40345 50 3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 113.40345 50 -3 114 50 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 86.59655 17 -3 86 17 -3 86 17 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 86 17 0 86 17 3 86.59655 17 3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 86.59655 17 3 86 17 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 86 17 0 86.59655 17 -3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 86.59655 50 -3 86 50 -3 86 50 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 3 16 86 50 0 86 50 3 86.59655 50 3
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 86.59655 50 3 86 50 0
  • 5 decimal places exceeds the recommendation for Subpart in the library specification
    Line text: 2 24 86.59655 50 -3 86 50 0
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Peter Blomberg
Licensed under CC BY 4.0
