Unofficial File parts/s/44292s01.dat
File Header:

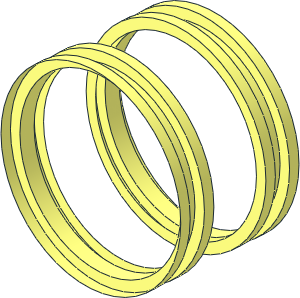

0 ~Wheel Rim 20 x 30 with 3 Pegholes - Rim Beads
0 Name: s\44292s01.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
0 !HISTORY 2025-03-12 [Blechtaler] complete rework
Show contents
1 16 0 0 -15 38 0 0 0 0 38 0 4 0 48\4-4cylo.dat
1 16 0 0 -21 34 0 0 0 0 34 0 6 0 48\4-4cylo.dat
1 16 0 0 -25 38 0 0 0 0 38 0 4 0 48\4-4cylo.dat
1 16 0 0 15 38 0 0 0 0 38 0 -4 0 48\4-4cylo.dat
1 16 0 0 21 34 0 0 0 0 34 0 -6 0 48\4-4cylo.dat
1 16 0 0 25 38 0 0 0 0 38 0 -4 0 48\4-4cylo.dat
1 16 0 0 -21 2 0 0 0 0 2 0 -1 0 48\4-4ring17.dat
1 16 0 0 -21 2 0 0 0 0 2 0 -1 0 48\4-4ring18.dat
1 16 0 0 -15 2 0 0 0 0 2 0 1 0 48\4-4ring17.dat
1 16 0 0 -15 2 0 0 0 0 2 0 1 0 48\4-4ring18.dat
1 16 0 0 -11 2 0 0 0 0 2 0 -1 0 48\4-4ring17.dat
1 16 0 0 -11 2 0 0 0 0 2 0 -1 0 48\4-4ring18.dat
1 16 0 0 11 2 0 0 0 0 2 0 1 0 48\4-4ring17.dat
1 16 0 0 11 2 0 0 0 0 2 0 1 0 48\4-4ring18.dat
1 16 0 0 15 2 0 0 0 0 2 0 -1 0 48\4-4ring17.dat
1 16 0 0 15 2 0 0 0 0 2 0 -1 0 48\4-4ring18.dat
1 16 0 0 21 2 0 0 0 0 2 0 1 0 48\4-4ring17.dat
1 16 0 0 21 2 0 0 0 0 2 0 1 0 48\4-4ring18.dat
1 16 0 0 11 34 0 0 0 0 34 0 1 0 48\4-4edge.dat
1 16 0 0 -11 34 0 0 0 0 34 0 1 0 48\4-4edge.dat
Status:
Needs More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
None
complete rework with more prims, also checked the real part for some small size corrections
2025-03-12 11:15:40
can be reused for the other rims in the family
2025-07-10 06:58:56
Are the two rims the same size? You may be able to cut it in half and then use it twice in each part.
2025-07-10 16:12:42
yes, front/rear are identical...
but idk if this saves that much (I want to reuse this in at 3 more parts)
but idk if this saves that much (I want to reuse this in at 3 more parts)
