Unofficial File parts/u9030.dat
View official version of part
Part Attributes:

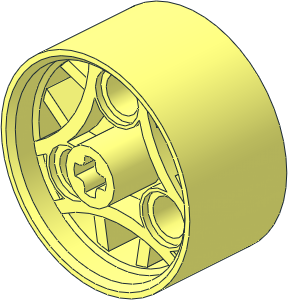

~Wheel 14 x 28 Smooth
File Header:
0 ~Wheel 14 x 28 Smooth 0 Name: u9030.dat 0 Author: Rene Rechthaler [Blechtaler] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS 36.8 x 14 ZR, Racers, wheel, Zonic Strike 0 !HISTORY 2007-06-22 [mikeheide] changed title, BFC'ed 0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02 0 !HISTORY 2025-03-12 [Blechtaler] complete rework, used prims, original by [smhltec]
Show contents
0 // Nomenclature: width_(mm) x rim_diameter_(mm) [optional qualifier] 1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\44292s03.dat 0 BFC INVERTNEXT 1 16 0 0 10 31.5 0 0 0 0 31.5 0 6.25 0 48\4-4cylo.dat 0 BFC INVERTNEXT 1 16 0 0 -10 31.5 0 0 0 0 31.5 0 -6.25 0 48\4-4cylo.dat 0 BFC INVERTNEXT 1 16 0 0 18 1.75 0 0 0 0 1.75 0 -1.75 0 48\4-4con18.dat 1 16 0 0 18 33.25 0 0 0 0 33.25 0 1 0 48\4-4edge.dat 1 16 0 0 18 1.75 0 0 0 0 1.75 0 -1 0 48\4-4rin19.dat 0 BFC INVERTNEXT 1 16 0 0 -18 1.75 0 0 0 0 1.75 0 1.75 0 48\4-4con18.dat 1 16 0 0 -18 33.25 0 0 0 0 33.25 0 1 0 48\4-4edge.dat 1 16 0 0 -18 1.75 0 0 0 0 1.75 0 1 0 48\4-4rin19.dat 1 16 0 0 -18 35 0 0 0 0 35 0 36 0 48\4-4cylo.dat
Status:
Not releaseable Needs More Votes (F) Needs More Votes (F)
This part has the following automated holds from the Parts Tracker
Current Votes:

None

Official parents and subparts
Part Events:
Archived Part Events:
Rene Rechthaler [Blechtaler]
Part Header Editor
initially submitted the part.
2025-03-12 11:12:38
complete rework with Prims (to change the license to 4.0 only)
Rene Rechthaler [Blechtaler]
Part Header Editor
edited the part header.
2025-03-12 11:14:18
Header Edits

history:
0 !HISTORY 2007-06-22 [mikeheide] changed title, BFC'ed
0 !HISTORY 2007-06-22 [Blechtaler] complete rework, used prims, original by [smhltec]
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
to
0 !HISTORY 2007-06-22 [mikeheide] changed title, BFC'ed
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02
0 !HISTORY 2025-03-12 [Blechtaler] complete rework, used prims, original by [smhltec]

keywords:
36.8 x 14 ZR, Racers, wheel, Zonic Strike
to
36.8 x 14 ZR, Racers, Zonic Strike, wheel

Comment:
forgot to change the date in the History
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-03-12 11:20:27
the original subparts s\u9030s01.dat and s\u9031s01.dat are now unused, what happens to them?
obsoleting? emptying? or needs this to be a new part?
Rene Rechthaler [Blechtaler]
Part Header Editor
edited the part header.
2025-03-12 21:00:41
Header Edits

keywords:
36.8 x 14 ZR, Racers, wheel, Zonic Strike
to
36.8 x 14 ZR, Racers, Zonic Strike, wheel
description:
~Wheel 14 x 29 Smooth
to
~Wheel 14 x 28 Smooth

Comment:
corrected diameter (rim itself is 28mm), its already done in the digital model
Jeff Jones [notmaster]
Part Author
made the following comment.
2025-03-12 21:31:27
got a idea
u9030s01.dat and u9031s01.dat gets turned into subparts for other parts so they dont go to waste ;)
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2025-03-12 22:00:50
you cant reuse official parts
looks like we have to obsolete the old stuff
