File Detail parts/67245.dat

Unofficial File parts/67245.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

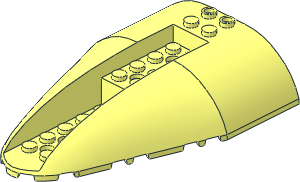

Plane Top Aft Section 8 x 12 x 2 Tapered

File Header:

0 Plane Top Aft Section  8 x 12 x  2 Tapered
0 Name: 67245.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2023-01-25 {LEGO Instructions App} Original part shape
0 !HISTORY 2023-01-25 [GeraldLasser] File preparation for LDraw Parts Tracker

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\67245s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\67245s01.dat

1 16 0 -38 120 0 0 1 1 0 0 0 -1 0 peghole.dat
0 BFC INVERTNEXT
1 16 0 -38 102 -6 0 0 0 0 6 0 16 0 4-4cyli.dat
1 16 0 -38 120 0 0 8 8 0 0 0 -1 0 4-4ndis.dat
1 16 0 -38 100 -1 0 0 0 0 -1 0 1 0 peghole2.dat
1 16 0 -38 100 8 0 0 0 0 -8 0 1 0 2-4ndis.dat
1 16 0 -30 110 1 0 0 0 -1.5 0 0 0 1 stud3a.dat
1 16 0 -38 104 -8 0 0 0 0 8 0 12 0 2-4cyli.dat
1 16 0 -38 104 -8 0 0 0 0 8 0 -1 0 2-4ndis.dat
1 16 0 -30 110 -1 0 0 0 1 0 0 0 -1 cylj4x8.dat
1 16 0 -38 116 8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 0 -38 104 -8 0 0 0 0 8 0 1 0 2-4edge.dat
1 16 0 -38 116 -8 0 0 0 0 8 0 1 0 2-4edge.dat

3 16 0 -30 120 60 -24 120 -60 -24 120
3 16 0 -30 116 -60 -24 116 60 -24 116
1 16 0 -24 118 60 0 0 0 -1 0 0 0 -2 rect.dat

3 16 -60 -24 104 0 -30 104 60 -24 104
1 16 0 -24 102 -60 0 0 0 -1 0 0 0 2 recte3.dat
4 16 8 -24 102 -8 -24 102 -60 -24 104 60 -24 104

0 // Centre
1 16 0 -28 60 0 0 1 0 -1 0 -1 0 0 stud4h.dat
1 16 0 -28 60 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -28 60 0 0 16 0 4 0 -16 0 0 box4.dat
1 16 0 -28 60 0 0 20 0 4 0 -20 0 0 box4.dat
4 16 -20 -24 80 20 -24 80 16 -24 76 -16 -24 76
4 16 -20 -24 40 -16 -24 44 16 -24 44 20 -24 40
3 16 -16 -28 76 16 -28 76 0 -28 68
3 16 0 -28 52 16 -28 44 -16 -28 44
4 16 24 -28 84 20 -28 80 -20 -28 80 -24 -28 84
1 16 0 -35.75 84 24 0 0 0 0 7.75 0 -1 0 rect3.dat
4 16 -24 -43.5 84 -20 -44 84 20 -44 84 24 -43.5 84
1 16 0 -44 92 -20 0 0 0 -1 0 0 0 8 rect2p.dat

1 16 0 -32 60 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
3 16 -20 -32 80 0 -32 66 20 -32 80
3 16 20 -32 0 0 -32 14 -20 -32 0
1 16 0 -40 80 20 0 0 0 0 -8 0 1 0 rect.dat
1 16 0 -32 20 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -32 20 0 0 6 0 4 0 -6 0 0 4-4cylo.dat
1 16 0 -28 20 0 0 6 0 -1 0 -6 0 0 4-4ndis.dat
3 16 0 -28 26 -20 -28 40 20 -28 40.18
3 16 -24 -28 4 0 -28 14 24 -28 4
2 24 -20 -32 80 -20 -32 0
2 24 20 -32 0 20 -32 80

0 // Back Side
1 16 0 -16.5 4 0 0 24 -11.5 0 0 0 -1 0 rect.dat
4 16 20 -5 0 -20 -5 0 -24 -5 4 24 -5 4
4 16 20 0 0 16 0 -3.947 -16 0 -3.947 -20 0 0
3 16 0 -5.2 -12 -16 -5.2 -4 16 -5.2 -4

1 16 0 -5.2 -20 0 0 1 0 -1.3 0 -1 0 0 stud4a.dat
1 16 0 -5.2 -40 0 0 1 0 -1.3 0 -1 0 0 stud4a.dat
1 16 0 -5.2 -60 0 0 1 0 -1.3 0 -1 0 0 stud4a.dat
1 16 0 -5.2 -80 0 0 1 0 -1.3 0 -1 0 0 stud4a.dat
1 16 0 -5.2 -100 0 0 1 0 -1.3 0 -1 0 0 stud4f1s.dat
1 16 0 -5.2 -20 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 -5.2 -40 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 -5.2 -60 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 -5.2 -80 0 0 8 0 -1 0 -8 0 0 4-4ndis.dat
1 16 0 -5.2 -20 0 0 8 0 -1 0 -8 0 0 4-4edge.dat
1 16 0 -5.2 -40 0 0 8 0 -1 0 -8 0 0 4-4edge.dat
1 16 0 -5.2 -60 0 0 8 0 -1 0 -8 0 0 4-4edge.dat
1 16 0 -5.2 -80 0 0 8 0 -1 0 -8 0 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -5.2 -20 0 0 6 0 -2.8 0 -6 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -5.2 -40 0 0 6 0 -2.8 0 -6 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -5.2 -60 0 0 6 0 -2.8 0 -6 0 0 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 -5.2 -80 0 0 6 0 -2.8 0 -6 0 0 4-4cyli.dat
1 16 0 -8 -20 0 0 6 0 -1 0 -6 0 0 4-4edge.dat
1 16 0 -8 -40 0 0 6 0 -1 0 -6 0 0 4-4edge.dat
1 16 0 -8 -60 0 0 6 0 -1 0 -6 0 0 4-4edge.dat
1 16 0 -8 -80 0 0 6 0 -1 0 -6 0 0 4-4edge.dat
1 16 0 -5.2 -100 0 0 6 0 -1 0 -6 0 0 4-4edge.dat

3 16 0 -8 -14 20 -8 0 -20 -8 0

1 16 0 -20 0 20 0 0 0 0 -12 0 1 0 rect.dat
1 16 0 -8 -20 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 -8 -40 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 -8 -60 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
1 16 0 -8 -80 0 0 6 0 1 0 -6 0 0 4-4ndis.dat
2 24 20 -8 0 20 -8 -108.47
2 24 -20 -8 0 -20 -8 -108.47

0 // Studs
1 16 0 -48 110 0 0 1 0 1 0 -1 0 0 stug2-2x1.dat
1 16 0 -48 90 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 10 -32 40 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 -10 -32 40 0 0 1 0 1 0 -1 0 0 stug-1x4.dat
1 16 -10 -8 -50 0 0 1 0 1 0 -1 0 0 stug-1x5.dat
1 16 10 -8 -50 0 0 1 0 1 0 -1 0 0 stug-1x5.dat

0 // Seam
3 16 0 -46 120 -20 -48 120 20 -48 120
1 16 0 -48 100 0 0 -20 0 1 0 20 0 0 rect1.dat
1 16 0 -2.5 0 20 0 0 0 0 2.5 0 -1 0 rect.dat
1 16 0 -2.6 -4 16 0 0 0 0 2.6 0 1 0 rect.dat
3 16 0 0 -120 -1.5 0 -115.8023 1.5 0 -115.8023
4 16 -1.5 0 -108 1.5 0 -108 1.5 0 -115.8023 -1.5 0 -115.8023
3 16 -1.5 -5.2 -108 0 -5.2 -88 1.5 -5.2 -108
5 24 0 -8 -119.306 0 -4.8 -119.985 6.1968 -4.8 -119.2173 -6.1968 -4.8 -119.2173
5 24 0 -4.8 -119.985 0 0 -120 -4.74 0 -119.4013 4.74 0 -119.4013

Status:

Needs More Votes (N)

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/67245s01.dat (Needs More Votes)
parts/s/67245s02.dat (Needs More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2025-03-12 11:20:00

Creative Commons Attribution License information
