Unofficial File parts/s/6377s04.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

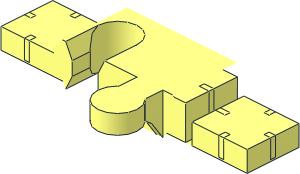

0 ~Duplo Train Track Straight 4 x 8 - End Sleeper
0 Name: s\6377s04.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-01-10 [MMR1988] BFC'ed, add license, replace of quads by boxes and rects, rewrite some ares
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2024-11-22 [WUIt] Used subfile for tracks, moved origin to point of symmetry, and merged symmetric elements across the split
0 !HISTORY 2025-02-14 [WUIt] Rearranged to more subparts, corrected underside, and removed several T-junctions around middle sleeperShow file code:
4 16 34 0 -120 -8 0 -128 28 0 -160 34 0 -160
3 16 -8 0 -140 -8 0 -160 12 0 -160
4 16 34 0 -120 -34 0 -120 -20 0 -128 -8 0 -128
3 16 -34 0 -120 -32 0 -128 -20 0 -128
4 16 -32 0 -128 -34 0 -120 -34 0 -160 -32 0 -140
3 16 -32 0 -160 -32 0 -140 -34 0 -160
2 24 34 0 -160 28 0 -160
2 24 12 0 -160 -8 0 -160
2 24 -32 0 -160 -34 0 -160
4 16 -8 0 -128 -8 0 -140 12 0 -160 28 0 -160
0 BFC INVERTNEXT
1 16 -56 18 -140 -20 0 0 0 -6 0 0 0 -16 box3-7a.dat
4 16 -36 4 -124 -36 4 -140 -36 12 -140 -36 12 -124
2 24 -76 24 -124 -76 12 -124
2 24 -36 4 -140 -36 4 -124
2 24 -36 4 -140 -36 12 -140
2 24 -36 4 -124 -36 12 -124
2 24 -36 12 -124 -36 12 -140
2 24 -36 12 -140 -36 12 -156
2 24 -36 12 -124 -76 12 -124
4 16 38 24 -124 -36 12 -124 -76 12 -124 -76 24 -124
4 16 38 4 -124 -36 4 -124 -36 12 -124 38 24 -124
2 24 -76 24 -124 38 24 -124
2 24 38 4 -124 -36 4 -124
2 24 38 4 -124 38 24 -124
0 BFC INVERTNEXT
1 16 17 14 -140 21 0 0 0 -10 0 0 0 -16 box3-7a.dat
0 BFC INVERTNEXT
1 16 59 24 -140 17 0 0 0 -12 0 0 0 -16 box5.dat
3 16 -8 24 -160 -4 24 -156 38 24 -156
4 16 42 24 -156 38 24 -156 38 24 -124 42 24 -124
4 16 -32 0 -160 -34 0 -160 -40 7 -160 -32 24 -160
4 16 28 24 -160 40 7 -160 34 0 -160 28 0 -160
4 16 24 5 -160 16 5 -160 16 24 -160 24 24 -160
4 16 12 0 -160 -8 0 -160 -8 24 -160 12 24 -160
1 16 20 0 -180 -1 0 0 0 1 0 0 0 -1 duplopin.dat
1 16 -20 0 -140 1 0 0 0 1 0 0 0 1 duplohol.dat
1 16 60 12 -154 1.5 0 0 0 11 0 0 0 2 box4-1.dat
1 16 74 12 -140 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 60 12 -126 -1.5 0 0 0 11 0 0 0 -2 box4-1.dat
1 16 45 12 -140 0 0 3 0 11 0 -1.5 0 0 box4-1.dat
1 16 35 4 -140 0 0 -3 0 19 0 1.5 0 0 box4-1.dat
1 16 1.5 4 -140 0 0 6.5 0 19 0 -1.5 0 0 box4-1.dat
2 24 -4.2983 23 -138.5 -4 23 -140
2 24 -4 23 -140 -4 23 -141.5
2 24 -4.2983 23 -138.5 -4.2983 4 -138.5
2 24 -4 23 -141.5 -4 4 -141.5
1 16 -60 12 -154 -1.5 0 0 0 11 0 0 0 2 box4-1.dat
1 16 -60 12 -126 1.5 0 0 0 11 0 0 0 -2 box4-1.dat
1 16 -74 12 -140 0 0 2 0 11 0 1.5 0 0 box4-1.dat
1 16 -41.5 12 -140 0 0 -6.5 0 11 0 -1.5 0 0 box4-1.dat
3 16 -36 12 -138.5 -36 12 -140 -35.7017 12 -138.5
2 24 -35.7017 23 -138.5 -36 23 -140
2 24 -35.7017 12 -138.5 -36 12 -140
2 24 -36 23 -140 -36 23 -141.5
2 24 -35.7017 23 -138.5 -35.7017 12 -138.5
2 24 -36 23 -141.5 -36 12 -141.5
1 16 20 4 -154 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 20 4 -126 -1.5 0 0 0 19 0 0 0 -2 box4-1.datStatus
Errors Found (CCHN)
Current Votes:
Willy Tschager [Holly-Wood]
Magnus Forsberg [MagFors]
Takeshi Takahashi [RainbowDolphin]
Part Dependencies
Official parents and subparts
Part Events
Peter Blomberg [WUIt]
initially submitted the part.
2025-03-14 12:15:01
Rearranged and subfiled lines to create more reusable modules. Corrected underside edge reinforcement. Removed several T-junctions around the exterior of the middle and end sleepers. Subfile 6377s01 is reused by 31442. Subfiles 6377s02 and 6377s03 are reused by 31442, 35965, and 5370. Subfile 6377s04 is reused by 35965 and could be reused elsewhere (e.g. track crossings).
Peter Blomberg [WUIt]
edited the part header.
2025-04-30 20:45:26
Header Edits
description:
~Duplo Train Track Straight 4 x 8 (End Sleeper)
to
~Duplo Train Track Straight 4 x 8 - End Sleeper
Changed parenthesis to dash in description
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-08-16 17:04:24
Rene Rechthaler [Blechtaler]
posted a vote of Certify
2025-08-16 19:21:38
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-15 07:19:56
* T-junk:
2 4 -8 0 -128 -20 0 -128
2 4 -32 0 -128 -8 0 -128
2 4 -8 0 -128 -20 0 -128
2 4 -32 0 -128 -8 0 -128
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-09-15 19:40:07
Removed T-junction
Willy Tschager [Holly-Wood]
made the following comment.
2025-09-16 11:24:37
* Looks good beside the rect
Peter Blomberg [WUIt]
submitted a new version of the part (all votes reset).
2025-09-16 13:52:18
Converted rects to boxes
Willy Tschager [Holly-Wood]
posted a vote of Certify
2025-09-17 12:36:44
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2025-09-17 12:41:38
Magnus Forsberg [MagFors]
posted a vote of Hold
2026-09-20 19:28:07
Same here, history is wrong.
