File Detail parts/s/6377s03.dat

Unofficial File parts/s/6377s03.dat

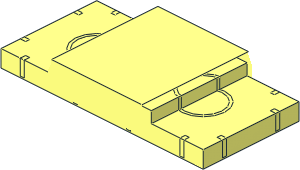

~Duplo Train Track Straight 4 x 8 - Big Sleeper

File Header:

0 ~Duplo Train Track Straight  4 x  8 - Big Sleeper
0 Name: s\6377s03.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2013-01-10 [MMR1988] BFC'ed, add license, replace of quads by boxes and rects, rewrite some ares
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2024-11-22 [WUIt] Used subfile for tracks, moved origin to point of symmetry, and merged symmetric elements across the split
0 !HISTORY 2025-02-14 [WUIt] Rearranged to more subparts, corrected underside, and removed several T-junctions around middle sleeper

Show contents

1 16 0 4 0 -37 0 0 0 -1 0 0 0 36 rect.dat
1 16 0 0 0 -34 0 0 0 1 0 0 0 40 rect.dat
1 16 0 4 0 1 0 0 0 -4 0 0 0 1 stud8.dat

1 16 56.5 8 0 0 0 -19.5 0 4 0 36 0 0 box2-7.dat
1 16 76 18 0 0 1 0 6 0 0 0 0 36 rect.dat
3 16 -37 12 -36 -76 24 -36 -76 12 -36
3 16 76 12 -36 76 24 -36 37 12 -36
4 16 -76 24 -36 -37 12 -36 37 12 -36 76 24 -36
4 16 37 12 -36 -37 12 -36 -37 4 -36 37 4 -36
2 24 -76 24 -36 76 24 -36
1 16 -74 12 -20 0 0 2 0 11 0 -1.5 0 0 box4-1.dat
1 16 -60 12 -34 1.5 0 0 0 11 0 0 0 2 box4-1.dat
1 16 -20 4 -34 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 20 4 -34 1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 60 12 -34 1.5 0 0 0 11 0 0 0 2 box4-1.dat
1 16 74 12 -20 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 -40 12 0 1 0 0 0 -2 0 0 0 1 stud8a.dat
1 16 -40 12 0 0 0 -14 0 1 0 14 0 0 2-4edge.dat
1 16 -40 12 0 0 0 -16 0 1 0 16 0 0 2-4edge.dat
1 16 -40 12 0 6.1229 0 14.7821 0 -8 0 -14.7821 0 6.1229 3-8cyli.dat
1 16 -35.4384 8 -15.0929 0 0 -1.5616 -4 0 0 0 1 -.3105 rect2a.dat
2 24 -37 12 -15.4034 -40 12 -16
5 24 -33.8768 12 -14.7824 -33.8768 4 -14.7824 -28.6864 12 -11.3136 -40 12 -16
1 16 -35.4384 8 15.0929 -1.5616 0 0 0 0 -4 .3105 -1 0 rect2a.dat
2 24 -37 12 15.4034 -40 12 16
5 24 -33.8768 12 14.7824 -33.8768 4 14.7824 -28.6864 12 11.3136 -40 12 16
1 16 -40 4 0 6.1229 0 14.7821 0 1 0 -14.7821 0 6.1229 3-8edge.dat
1 16 -40 4 0 5.3576 0 12.9343 0 1 0 -12.9343 0 5.3576 3-8edge.dat
0 BFC INVERTNEXT
1 16 -40 12 0 5.3576 0 12.9343 0 -8 0 -12.9343 0 5.3576 3-8cyli.dat
1 16 -35.8211 8 -13.169 -1.1789 0 0 0 0 -4 -.2344 -1 0 rect2a.dat
2 24 -37 12 -13.4034 -40 12 -14
5 24 -34.6422 12 -12.9346 -34.6422 4 -12.9346 -30.1006 12 -9.8994 -40 12 -14
1 16 -35.8211 8 13.169 0 0 -1.1789 -4 0 0 0 1 .2344 rect2a.dat
2 24 -37 12 13.4034 -40 12 14
5 24 -34.6422 12 12.9346 -34.6422 4 12.9346 -30.1006 12 9.8994 -40 12 14

1 16 -56.5 8 0 0 0 19.5 0 4 0 -36 0 0 box2-7.dat
1 16 -76 18 0 0 -1 0 6 0 0 0 0 -36 rect.dat
3 16 37 12 36 76 24 36 76 12 36
3 16 -76 12 36 -76 24 36 -37 12 36
4 16 76 24 36 37 12 36 -37 12 36 -76 24 36
4 16 -37 12 36 37 12 36 37 4 36 -37 4 36
2 24 76 24 36 -76 24 36
1 16 74 12 20 0 0 -2 0 11 0 1.5 0 0 box4-1.dat
1 16 60 12 34 -1.5 0 0 0 11 0 0 0 -2 box4-1.dat
1 16 20 4 34 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -20 4 34 -1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -60 12 34 -1.5 0 0 0 11 0 0 0 -2 box4-1.dat
1 16 -74 12 20 0 0 2 0 11 0 -1.5 0 0 box4-1.dat
1 16 40 12 0 -1 0 0 0 -2 0 0 0 -1 stud8a.dat

1 16 40 12 0 0 0 14 0 1 0 -14 0 0 2-4edge.dat
1 16 40 12 0 0 0 16 0 1 0 -16 0 0 2-4edge.dat
1 16 40 12 0 -6.1229 0 -14.7821 0 -8 0 14.7821 0 -6.1229 3-8cyli.dat
1 16 35.4384 8 15.0929 0 0 1.5616 -4 0 0 0 -1 .3105 rect2a.dat
2 24 37 12 15.4034 40 12 16
5 24 33.8768 12 14.7824 33.8768 4 14.7824 28.6864 12 11.3136 40 12 16
1 16 35.4384 8 -15.0929 1.5616 0 0 0 0 -4 -.3105 1 0 rect2a.dat
2 24 37 12 -15.4034 40 12 -16
5 24 33.8768 12 -14.7824 33.8768 4 -14.7824 28.6864 12 -11.3136 40 12 -16
1 16 40 4 0 -6.1229 0 -14.7821 0 1 0 14.7821 0 -6.1229 3-8edge.dat
1 16 40 4 0 -5.3576 0 -12.9343 0 1 0 12.9343 0 -5.3576 3-8edge.dat
0 BFC INVERTNEXT
1 16 40 12 0 -5.3576 0 -12.9343 0 -8 0 12.9343 0 -5.3576 3-8cyli.dat
1 16 35.8211 8 13.169 1.1789 0 0 0 0 -4 .2344 1 0 rect2a.dat
2 24 37 12 13.4034 40 12 14
5 24 34.6422 12 12.9346 34.6422 4 12.9346 30.1006 12 9.8994 40 12 14
1 16 35.8211 8 -13.169 0 0 1.1789 -4 0 0 0 -1 -.2344 rect2a.dat
2 24 37 12 -13.4034 40 12 -14
5 24 34.6422 12 -12.9346 34.6422 4 -12.9346 30.1006 12 -9.8994 40 12 -14

4 16 -34 0 -40 -34 2 -40 34 2 -40 34 0 -40
4 16 34 2 -40 -34 2 -40 -37 8 -40 37 8 -40
4 16 37 8 -40 -37 8 -40 -37 19 -40 37 19 -40

4 16 -34 0 40 34 0 40 34 2 40 -34 2 40
4 16 -34 2 40 34 2 40 37 8 40 -37 8 40
4 16 -37 19 40 -37 8 40 37 8 40 37 19 40

Status:

Awaiting Admin Review (CCN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
RainbowDolphin	Certify
Blechtaler	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-03-14 12:15:01

Rearranged and subfiled lines to create more reusable modules. Corrected underside edge reinforcement. Removed several T-junctions around the exterior of the middle and end sleepers. Subfile 6377s01 is reused by 31442. Subfiles 6377s02 and 6377s03 are reused by 31442, 35965, and 5370. Subfile 6377s04 is reused by 35965 and could be reused elsewhere (e.g. track crossings).

Peter Blomberg [WUIt]

edited the part header.

2025-04-30 20:45:46

Header Edits

description:
~Duplo Train Track Straight 4 x 8 (Big Sleeper)
to
~Duplo Train Track Straight 4 x 8 - Big Sleeper

Comment:
Changed parenthesis to dash in description

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-08-16 17:06:03

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-08-16 19:43:05
