File Detail parts/s/6377s02.dat

Unofficial File parts/s/6377s02.dat

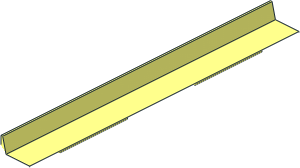

~Duplo Train Track Straight 4 x 8 - Track Base

File Header:

0 ~Duplo Train Track Straight  4 x  8 - Track Base
0 Name: s\6377s02.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2013-01-10 [MMR1988] BFC'ed, add license, replace of quads by boxes and rects, rewrite some ares
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
0 !HISTORY 2024-11-22 [WUIt] Used subfile for tracks, moved origin to point of symmetry, and merged symmetric elements across the split
0 !HISTORY 2025-02-14 [WUIt] Rearranged to more subparts, corrected underside, and removed several T-junctions around middle sleeper

Show contents

1 16 54 7 0 14 0 0 0 1 0 0 0 160 rect.dat
1 16 34 1 -80 0 1 0 0 0 1 -40 0 0 rect3.dat
3 16 34 -9 -160 34 0 -120 34 0 -160
4 16 34 0 -40 34 -9 -160 34 -9 160 34 0 40
3 16 34 -9 160 34 0 160 34 0 120
1 16 35 -9 0 0 0 1 0 1 0 160 0 0 rect.dat
4 16 40 7 -160 40 7 160 36 -9 160 36 -9 -160
2 24 68 8 -160 68 7 -160
3 16 34 -9 160 34 0 120 34 0 40
3 16 34 -9 -160 34 0 -40 34 0 -120
2 24 68 8 160 68 7 160
1 16 34 1 80 0 1 0 0 0 1 -40 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 52.5 15 -80 0 0 -11.5 0 -4 0 40 0 0 box2-7.dat
1 16 39 19 -80 2 0 0 0 -1 0 0 0 -40 rect.dat
0 BFC INVERTNEXT
1 16 35.5 10.5 -80 0 0 1.5 0 -5.5 3 -40 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 52.5 15 80 0 0 -11.5 0 -4 0 40 0 0 box2-7.dat
1 16 39 19 80 2 0 0 0 -1 0 0 0 -40 rect.dat
0 BFC INVERTNEXT
1 16 35.5 10.5 80 0 0 1.5 0 -5.5 3 -40 0 0 box2-7.dat
2 24 34 0 -160 34 0 -120
2 24 34 0 -40 34 0 40
2 24 34 0 120 34 0 160
4 16 34 0 -160 40 7 -160 36 -9 -160 34 -9 -160
2 24 34 0 -160 34 -9 -160
2 24 36 -9 -160 40 7 -160
4 16 36 -9 160 40 7 160 34 0 160 34 -9 160
2 24 34 0 160 34 -9 160
2 24 36 -9 160 40 7 160
1 16 64 11.5 -80 0 1 0 .5 0 0 0 0 -40 rect.dat
1 16 64 11.5 80 0 1 0 .5 0 0 0 0 -40 rect.dat

4 16 64 11 -120 64 12 -120 41 19 -120 41 11 -120
4 16 64 11 40 64 12 40 41 19 40 41 11 40

4 16 41 19 120 64 12 120 64 11 120 41 11 120
4 16 41 19 -40 64 12 -40 64 11 -40 41 11 -40

Status:

Needs More Votes (CN)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

User	Vote
RainbowDolphin	Certify

Official parents and subparts

Part Events:

Peter Blomberg [WUIt]

initially submitted the part.

2025-03-14 12:15:01

Rearranged and subfiled lines to create more reusable modules. Corrected underside edge reinforcement. Removed several T-junctions around the exterior of the middle and end sleepers. Subfile 6377s01 is reused by 31442. Subfiles 6377s02 and 6377s03 are reused by 31442, 35965, and 5370. Subfile 6377s04 is reused by 35965 and could be reused elsewhere (e.g. track crossings).

Peter Blomberg [WUIt]

edited the part header.

2025-04-30 20:46:05

Header Edits

description:
~Duplo Train Track Straight 4 x 8 (Track Base)
to
~Duplo Train Track Straight 4 x 8 - Track Base

Comment:
Changed parenthesis to dash in description

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-08-16 17:05:40

Rene Rechthaler [Blechtaler]

made the following comment.

2025-08-16 19:41:56

should the end quads get removed to avoid the overlap in 31442?
