File Detail parts/30399.dat

Official File parts/30399.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

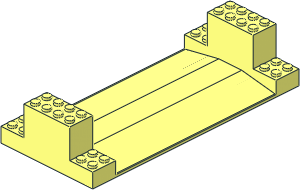

0 Support  8 x 18 x  3 Stanchion Base
0 Name: 30399.dat
0 Author: Ronald Scott Moody [rmoody]
0 !LDRAW_ORG Part UPDATE 2012-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CW

0 !HISTORY 2002-09-20 [Holly-Wood] Corrected L3P -check warnings: Identical lines.
0 !HISTORY 2002-09-20 [Holly-Wood] Added missing edges and deleted double edges.
0 !HISTORY 2002-09-20 [Holly-Wood] Deleted obsolete quads. Regrouped and reordered primitives.
0 !HISTORY 2006-10-14 [WilliamH] Sub-parted; used more primitives; BFCed
0 !HISTORY 2012-08-09 [PTadmin] Official Update 2012-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30399s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\30399s01.dat
2 24 -80 72 180 -80 72 -180
2 24 80 72 -180 80 72 180
2 24 -78 70 140 -78 70 -140
2 24 -39 63.276 140 -39 63.276 -140
2 24 -37 62.931 140 -37 62.931 -140
2 24 37 62.931 140 37 62.931 -140
2 24 39 63.276 140 39 63.276 -140
2 24 78 70 140 78 70 -140
1 16 79 72 0 -1 0 0 0 -1 0 0 0 140 rect1.dat
1 16 -79 72 0 1 0 0 0 -1 0 0 0 -140 rect1.dat
1 16 38 72 0 0 0 1 0 -1 0 140 0 0 rect2p.dat
1 16 -38 72 0 0 0 1 0 -1 0 140 0 0 rect2p.dat
4 16 -80 68 140 -80 68 -140 -80 72 -180 -80 72 180
4 16 -78 70 140 -78 72 140 -78 72 -140 -78 70 -140
4 16 -39 72 140 -39 63.276 140 -39 63.276 -140 -39 72 -140
4 16 -37 72 140 -37 72 -140 -37 62.931 -140 -37 62.931 140
4 16 37 62.931 140 37 62.931 -140 37 72 -140 37 72 140
4 16 39 72 -140 39 63.276 -140 39 63.276 140 39 72 140
4 16 78 70 -140 78 72 -140 78 72 140 78 70 140
4 16 80 72 180 80 72 -180 80 68 -140 80 68 140
4 16 -78 70 140 -78 70 -140 -39 63.276 -140 -39 63.276 140
4 16 -37 62.931 140 -37 62.931 -140 -20 60 -140 -20 60 140
4 16 39 63.276 140 39 63.276 -140 78 70 -140 78 70 140
4 16 20 60 140 20 60 -140 37 62.931 -140 37 62.931 140
4 16 -20 58 140 -20 58 -140 -78 68 -140 -78 68 140
1 16 0 58 0 20 0 0 0 1 0 0 0 140 rect.dat
1 16 0 60 0 20 0 0 0 -1 0 0 0 140 rect.dat
1 16 79 68 0 1 0 0 0 1 0 0 0 140 rect.dat
1 16 -79 68 0 1 0 0 0 1 0 0 0 140 rect.dat
4 16 78 68 140 78 68 -140 20 58 -140 20 58 140
1 16 -60 48 160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 60 48 160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -20 0 160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 20 0 160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -60 48 -160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 60 48 -160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 -20 0 -160 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 20 0 -160 1 0 0 0 1 0 0 0 1 stug-2x2.dat

Status:

Official

This part has the following errors

All parts must be BFC CERTIFY CCW

Unofficial parents

Part Events:

Archived Part Events:

None

Creative Commons Attribution License information

This part is copyright © Ronald Scott Moody
Licensed under CC BY 2.0
