Official File parts/2959bc01.dat
Part Attributes:
Base Part: 2959b.dat
File Header:

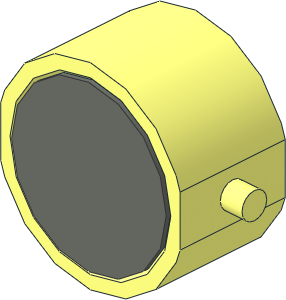

0 Magnet Cylindrical in Casing (Complete)
0 Name: 2959bc01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Shortcut UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 73092, Rebrickable 73092
0 !HISTORY 2025-03-17 [Blechtaler] Rework for correct magnet size
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 2959b.dat
1 493 0 0 0 1 0 0 0 1 0 0 0 1 70023b.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
* We are getting nowhere with these three variants. I'd like to see a table here at the PT:
2609a: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/44959
2609b: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24290
2609c: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24291
So that all three variants can be adjusted accordingly.
* The clip in a should be subbed as well
* @Rene, you cannot just submit an updated magnet:
https://library.ldraw.org/parts/44957
without obsoleting all the old parts of the magnet.
2609a: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/44959
2609b: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24290
2609c: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24291
So that all three variants can be adjusted accordingly.
* The clip in a should be subbed as well
* @Rene, you cannot just submit an updated magnet:
https://library.ldraw.org/parts/44957
without obsoleting all the old parts of the magnet.
2025-03-21 14:56:58
should the obsoleting also include the assembly shortcuts?
2025-03-21 15:32:44
How did you change the geometry?
2025-03-21 16:45:52
changes:
magnet from D24 to D25 and L16 to L17.5
housing fitted to the magnet, included the flat sides...
does this affect the train assemblies too?
magnet from D24 to D25 and L16 to L17.5
housing fitted to the magnet, included the flat sides...
does this affect the train assemblies too?
2025-03-21 16:55:11
would for example go up to 4022c01.dat
2025-03-24 14:55:42
2025-03-24 19:50:16
2025-03-26 18:59:10
2025-03-26 19:00:16
History is not correct.
took authorship, removed old history
2025-05-17 18:26:30
Should the size be mentioned in the name or in a Help line?
2025-06-21 07:30:22
2025-06-26 01:28:23
Release 2025-06
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
