Official File parts/2609d.dat
Part Attributes:
File Header:

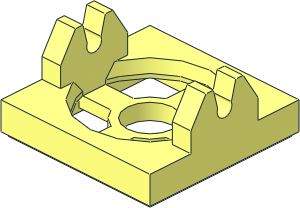

0 Magnet Holder Tile 2 x 2 with Short Arms
0 Name: 2609d.dat
0 Author: Steve Bliss [sbliss]
0 !LDRAW_ORG Part UPDATE 2025-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Usage of this part with magnet
0 !HELP 1 16 0 0 0 1 0 0 0 1 0 0 0 1 2609d.dat
0 !HELP 1 16 0 -6.25 0 1 0 0 0 0 1 0 -1 0 2959bc01.dat
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 2609a, Rebrickable 2609a
0 !HISTORY 1997-12-05 [PTadmin] Official Update 1997-17
0 !HISTORY 1998-10-15 [PTadmin] Official Update 1998-09
0 !HISTORY 2007-05-17 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2014-10-15 [Darats] Complete rework; use more primitives; BFCed
0 !HISTORY 2014-12-21 [PTadmin] Renamed from 2609
0 !HISTORY 2014-12-23 [PTadmin] Official Update 2014-02
0 !HISTORY 2025-03-17 [ejboer] Used subpart
0 !HISTORY 2025-03-26 [Holly-Wood] Fixed geometry, used subs
0 !HISTORY 2025-06-26 [OrionP] Official Update 2025-06
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2609s01.dat
1 16 17.5 0 0 1 0 0 0 1 0 0 0 1 s\2609s02.dat
1 16 -17.5 0 0 1 0 0 0 1 0 0 0 1 s\2609s02.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
used subpart. Did not look at other possible alterations needed yet, tyring to get through my backlog, but life...
2025-03-17 20:56:11
is it possible to use s\2609s02.dat? is that subfile correct?
Looking a this picture:
https://img.bricklink.com/ItemImage/EXTN/15181.png
the clips are different.
We still need a good HELP on all three variant.
https://img.bricklink.com/ItemImage/EXTN/15181.png
the clips are different.
We still need a good HELP on all three variant.
Added help lines. Maybe adjust the holes for the magnets a bit to 6.5 instead of 6.59?
2025-03-18 20:53:39
should this use unrotated holes for the magnets? 2x 3-8 or 5-16 onstead of a rotated 3-4? Pin diameter is 4LDU
total height with magnet (7mm) is 9,2mm (23LDU) -> clip (and magnet 2959bc01) should be at 6.25
total height with magnet (7mm) is 9,2mm (23LDU) -> clip (and magnet 2959bc01) should be at 6.25
2025-03-21 09:45:34
2025-03-21 09:53:32
* We are getting nowhere with these three variants. I'd like to see a table here at the PT:
2609a: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/44959
2609b: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24290
2609c: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24291
So that all three variants can be adjusted accordingly.
* The clip in a should be subbed as well
* @Rene, you cannot just submit an updated magnet:
https://library.ldraw.org/parts/44957
without obsoleting all the old parts of the magnet.
2609a: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/44959
2609b: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24290
2609c: Distance Bottom->Hole, Distance Bottom-Top of the clip - https://library.ldraw.org/parts/24291
So that all three variants can be adjusted accordingly.
* The clip in a should be subbed as well
* @Rene, you cannot just submit an updated magnet:
https://library.ldraw.org/parts/44957
without obsoleting all the old parts of the magnet.
should use only the base and the arm subparts
(magnet clip hole should be at -6.25 instead of -6.59)
(magnet clip hole should be at -6.25 instead of -6.59)
2025-03-24 15:19:48
Luckily I have this part and remeasured it:
0 !LPE DISTANCE 69 -20 8 0 -20 -6.25 0
0 !LPE DISTANCE 68 -20 8 -3 -20 -12 -3
0 !LPE DISTANCE 272 -20 0 9 -20 0 -9
0 !LPE DISTANCE 4 -20 -5 8 -20 0 8
The geometry is wrong. This part has to be obsoleted and resubmit with a new number.
0 !LPE DISTANCE 69 -20 8 0 -20 -6.25 0
0 !LPE DISTANCE 68 -20 8 -3 -20 -12 -3
0 !LPE DISTANCE 272 -20 0 9 -20 0 -9
0 !LPE DISTANCE 4 -20 -5 8 -20 0 8
The geometry is wrong. This part has to be obsoleted and resubmit with a new number.
2025-03-24 15:20:33
* I expect to see the above figures posted also for b and c
2025-03-24 16:45:12
should this one then be index D? 2609 is confirmed on the part...
do you want to renumber it and upload the obsolete?
do you want to renumber it and upload the obsolete?
2025-03-24 17:23:36
Yes D. The geometry has changed. You cannot renumber it. Use ds01, ds02 for the new subs. Re-upload the official a-version and obsolete.
2025-03-24 17:24:22
The 2014-02 version to be clear.
2025-03-24 18:21:29
if the "old" version gets uploaded the discussion here will be under the wrong part...
can you (or another PT admin) renumber it to 2609d so that a "clean" 2609a get uploaded?
can you (or another PT admin) renumber it to 2609d so that a "clean" 2609a get uploaded?
2025-03-24 18:43:33
"parts/2609a.dat" to "parts/2609d.dat"
2025-03-24 18:49:04
A few additional values to Willy's:
0 !LPE DISTANCE 22 -20 -12 2 -20 -12 -2
0 !LPE DISTANCE 25 -20 -12 1 -20 -12 -1
0 !LPE DISTANCE 27 -20 0 9 -16 0 9
This should share it's arm sub-file with 2609c and 2607.
0 !LPE DISTANCE 22 -20 -12 2 -20 -12 -2
0 !LPE DISTANCE 25 -20 -12 1 -20 -12 -1
0 !LPE DISTANCE 27 -20 0 9 -16 0 9
This should share it's arm sub-file with 2609c and 2607.
2025-03-24 19:11:34
Small correction (Thickness is 5 LDU not 4):
0 !LPE DISTANCE 27 -20 0 9 -15 0 9
0 !LPE DISTANCE 27 -20 0 9 -15 0 9
2025-03-24 19:16:22
code here should just be
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2609s01.dat
1 16 -17.5 0 0 1 0 0 0 1 0 0 0 1 s\2609s02.dat
1 16 17.5 0 0 1 0 0 0 1 0 0 0 1 s\2609s02.dat
everything else should be fixed in the respective subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\2609s01.dat
1 16 -17.5 0 0 1 0 0 0 1 0 0 0 1 s\2609s02.dat
1 16 17.5 0 0 1 0 0 0 1 0 0 0 1 s\2609s02.dat
everything else should be fixed in the respective subparts
Fixed geometry
2025-03-27 11:38:05
2025-03-27 11:38:55
2025-05-18 06:29:07
2025-05-18 13:23:51
2025-06-21 07:22:37
2025-06-26 01:28:23
Release 2025-06
