Unofficial File parts/5842.dat
Part Attributes:
File Header:

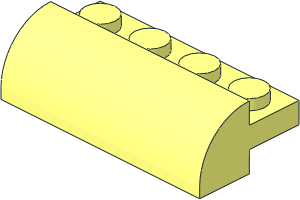

0 Brick 2 x 4 x 1 with Curved Top
0 Name: 5842.dat
0 Author: Peter Grass [Evilspyre]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 372549
0 !HISTORY 2026-01-05 [GeraldLasser] Complete Rework
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5842s01.dat
1 16 40 20 -10 0 -80 0 -20 0 0 0 0 -20 1-4cyli.dat
4 16 40 20 -30 -40 20 -30 -40 24 -30 40 24 -30
Status:
Certified (ACCN)
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
| MagFors | Admin Review |
| Blechtaler | Certify |
Official parents and subparts
Part Events:
the antistuds in the curved inside should include cyls, as of now they are overlapping...
Cmon man. He submitted this part to the forum as part of that thread and has first rights.
2025-03-18 19:02:44
I don't mind if someone else wants to make it. Dunno if my version is better or worse than this one to be honest since its my first go at making one. Min
2025-03-18 19:16:04
Submit your version. Actually I will on your behalf. You were "first to file".
2025-03-18 19:20:12
2025-03-18 19:27:25
should have the 7 tabs that my version had
based it on the bi mesh
based it on the bi mesh
2025-03-18 19:38:49
yikes
lots of overlaps and high res junk
lots of overlaps and high res junk
2025-03-18 19:43:36
We all were learners at some point...
2025-03-18 19:51:08
i would start with the easiest one
replace these
1 16 20 -20 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 -20 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -20 -20 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 30 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -10 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -30 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
with these
1 16 0 -20 -30 1 0 0 0 -1 0 0 0 1 stug3-1x3.dat
1 16 0 -24 -30 1 0 0 0 1 0 0 0 1 stug-1x4.dat
replace these
1 16 20 -20 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 -20 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -20 -20 -30 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 30 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -10 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -30 -24 -30 1 0 0 0 1 0 0 0 1 stud.dat
with these
1 16 0 -20 -30 1 0 0 0 -1 0 0 0 1 stug3-1x3.dat
1 16 0 -24 -30 1 0 0 0 1 0 0 0 1 stug-1x4.dat
2025-03-18 20:21:16
also replace some more things
-2x edge and cyli -> cylo
-1-4 disc at the ends -> chrd
-merge the bottom triangles to quads
-2x edge and cyli -> cylo
-1-4 disc at the ends -> chrd
-merge the bottom triangles to quads
2025-03-18 20:24:17
maybe change the origin
2025-03-18 20:25:34
i think the reason its like this is it was originally made in part designer
maybe next time you author use tools like ldpart editor or ldforge
maybe next time you author use tools like ldpart editor or ldforge
2025-03-18 20:40:47
When I try to upload my revised part I just get error 500, I don't think I am good enough at this yet so I am happy for my part to be replaced with a better version rather than me trying to fix the issues. Sorry to mess everyone around.
I will practice with ldpart editor on a different part for now.
I will practice with ldpart editor on a different part for now.
2025-03-18 20:42:51
I found a bug in the submit script. The easiest work around is to copy the header above into the part before you submit.
2025-03-18 20:53:03
2025-03-18 20:55:19
This one should have the correct connection stuff at least and has 7 tabs.
2025-03-18 21:02:24
and round that dat out
2025-03-19 12:51:41
2025-03-19 13:17:18
2025-03-19 14:28:31
also i suggest to run rectifer on it
Header Edits
keywords:
to
description:
Brick 2 x 4 x 1 with Curved Top
to
Brick 2 x 4 x 1 with Curved Top
For sorting purposes, we need two blank spaces in front of each number consisting of a single integer digit.
* Origin
* All these vertices are superfluous:
2 273 36 -8 -87.728 -36 -8 -87.72
* Under studs of sloped section have to substituted with prims
* All these vertices are superfluous:
2 273 36 -8 -87.728 -36 -8 -87.72
* Under studs of sloped section have to substituted with prims
2025-06-17 15:53:34
since you have uploaded 2 parts
time for some learning
replace these
1 16 30.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
1 16 10.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
1 16 -10.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
1 16 -30.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
with these
1 16 0 -24 -60 1 0 0 0 1 0 0 0 1 stug-1x4.dat
time for some learning
replace these
1 16 30.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
1 16 10.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
1 16 -10.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
1 16 -30.0000 -24.0000 -60.0000 1.0000 0.0000 0.0000 0.0000 1.0000 0.0000 0.0000 0.0000 1.0000 stud.dat
with these
1 16 0 -24 -60 1 0 0 0 1 0 0 0 1 stug-1x4.dat
2025-06-17 16:07:14
next origin
theres 2 options to fix it
on the left there is a box with snapping move snap ldu on it
the studs are at -24 ldu when they should be at 0 ldu
under snapping there is a white box with Move Snap LDU at the top of it
replace the numbers below move snap ldu with 24 select everything by typing ctrl + a
and move by pressing 2 on the keyword which would show arrows
move the green arrow down and the studs are on the correct plane
as for the next lesson do the previous thing again but instead type 60 instead of 24
and push the blue arrow back
so that it is
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-1x4.dat
theres 2 options to fix it
on the left there is a box with snapping move snap ldu on it
the studs are at -24 ldu when they should be at 0 ldu
under snapping there is a white box with Move Snap LDU at the top of it
replace the numbers below move snap ldu with 24 select everything by typing ctrl + a
and move by pressing 2 on the keyword which would show arrows
move the green arrow down and the studs are on the correct plane
as for the next lesson do the previous thing again but instead type 60 instead of 24
and push the blue arrow back
so that it is
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-1x4.dat
2025-06-17 16:14:56
as for the 2nd one
paste this in
1 16 0 24 60 1 0 0 0 1 0 0 0 1 5842.dat
on the right side bring your cursor to the left so that its entirely blue
then click on the 12th icon inline selection (a green arrow and a 8)
remove 0 !LPE INLINE 1 16 0 24 60 1 0 0 0 1 0 0 0 1 5842.dat and the text that comes before
then remove 0 !LPE INLINE_END
paste this in
1 16 0 24 60 1 0 0 0 1 0 0 0 1 5842.dat
on the right side bring your cursor to the left so that its entirely blue
then click on the 12th icon inline selection (a green arrow and a 8)
remove 0 !LPE INLINE 1 16 0 24 60 1 0 0 0 1 0 0 0 1 5842.dat and the text that comes before
then remove 0 !LPE INLINE_END
2025-08-31 08:14:50
bump
2026-01-05 10:52:18
reorganized
2026-01-10 08:08:58
2026-01-10 09:40:10
2026-01-17 14:22:22
Creative Commons Attribution License information
This part is copyright © Peter Grass
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Gerald Lasser,
most parts of it were taken from 5841 the 3 antistuds at the front were taken from 6081
